Name: 0~30dB FC/PC Yin-Yang Type Fixed Optical Attenuator 10pcs/Set
SKU: P787
Price: 60.00 USD
Availability: InStock

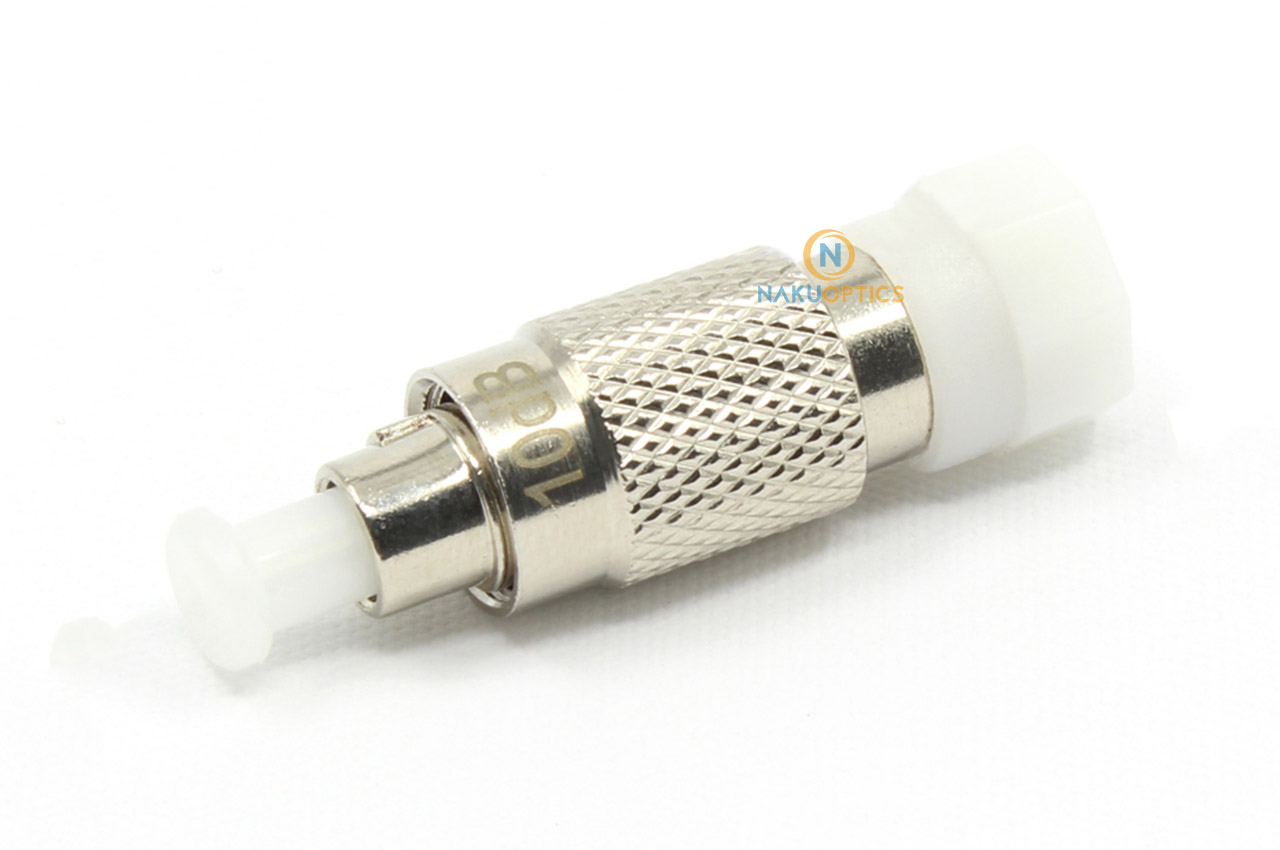

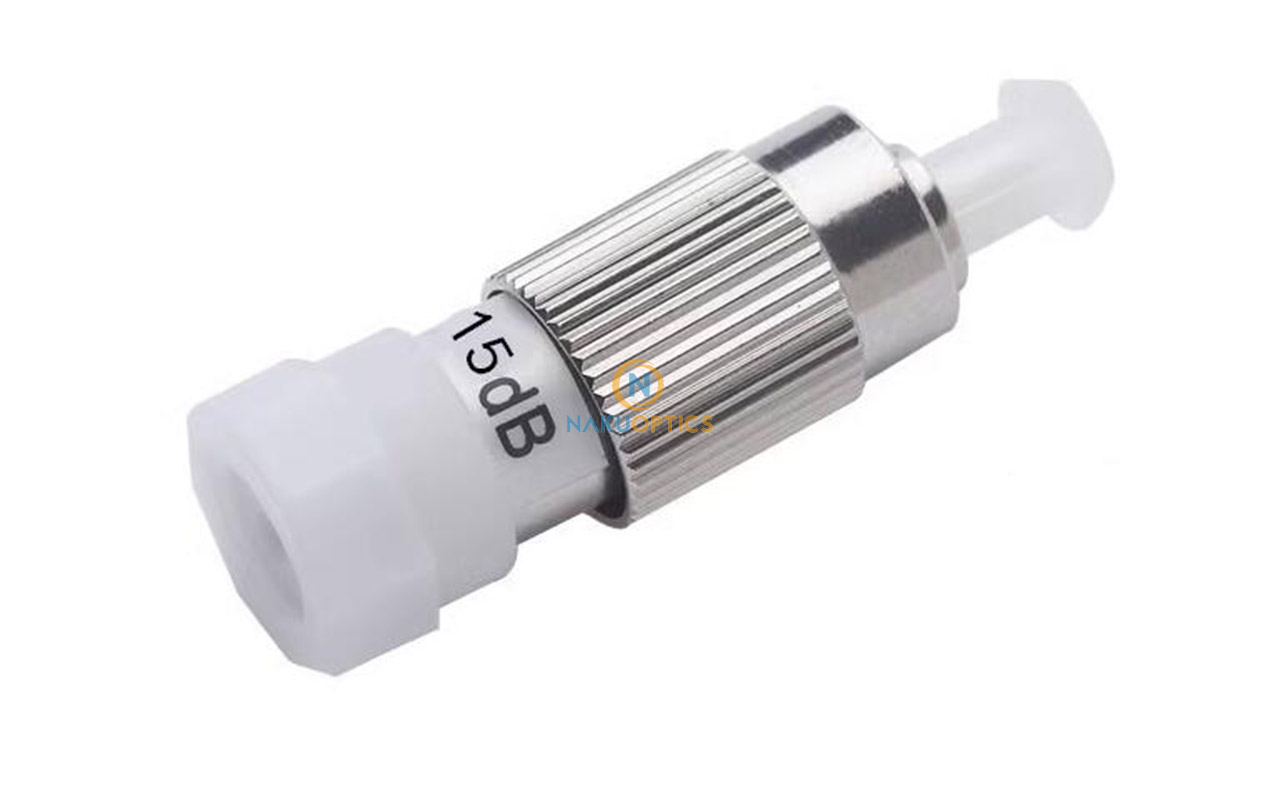

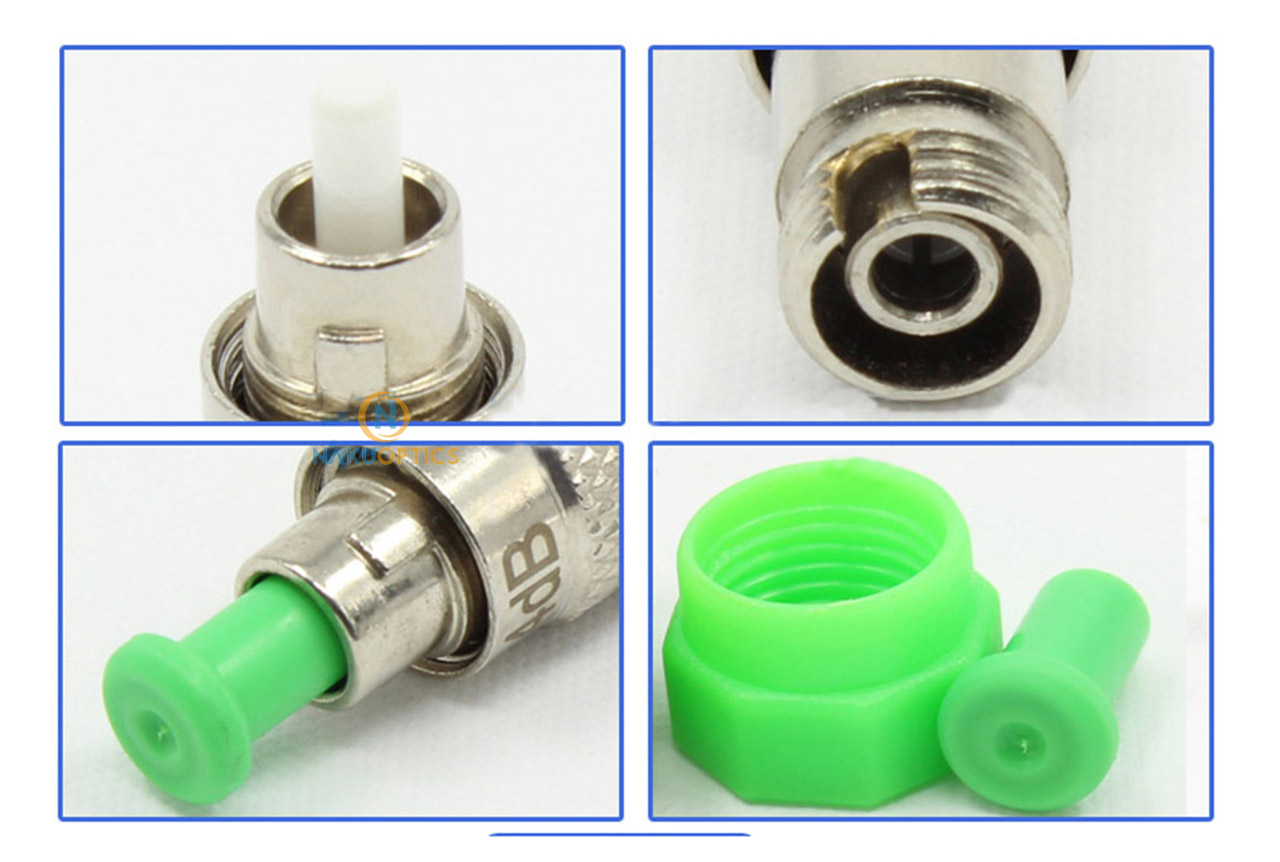

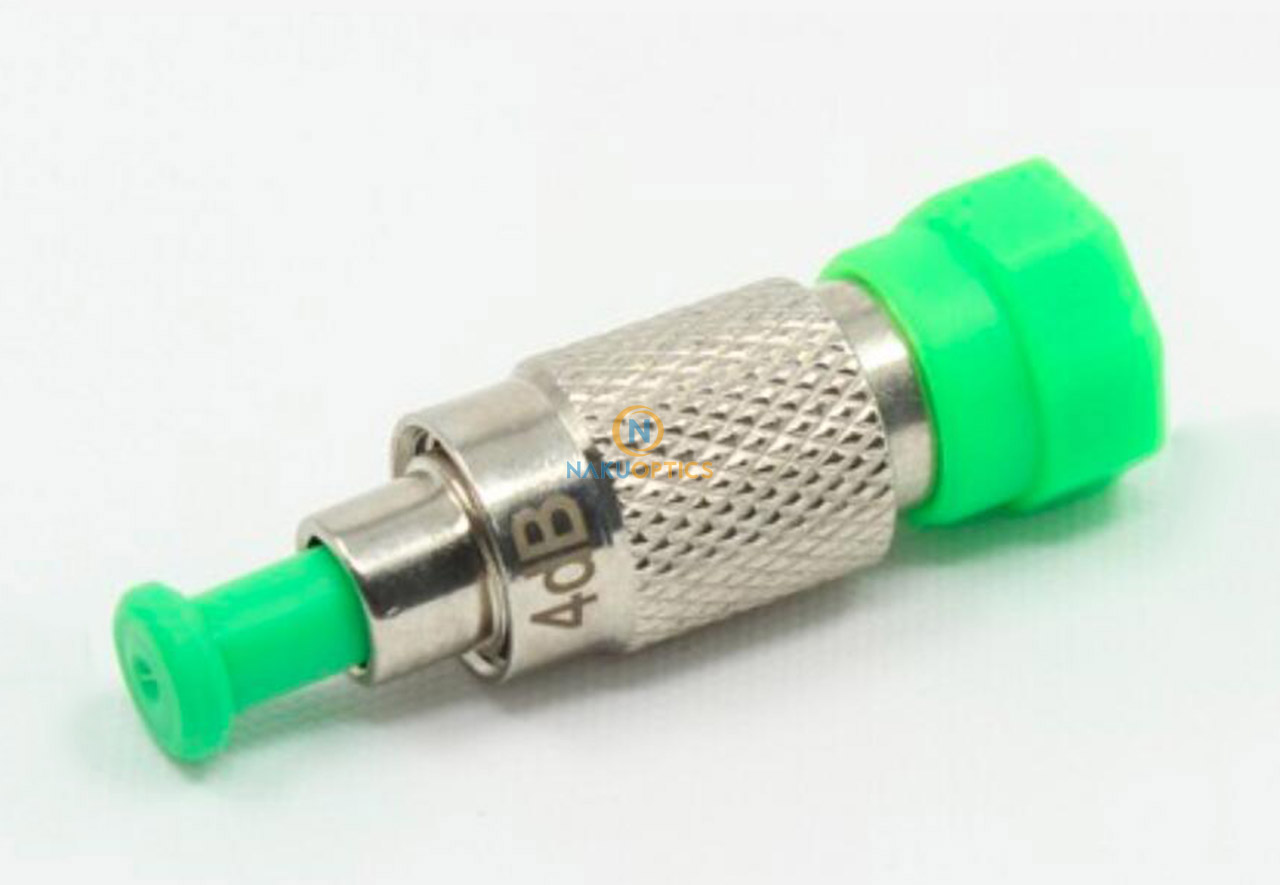

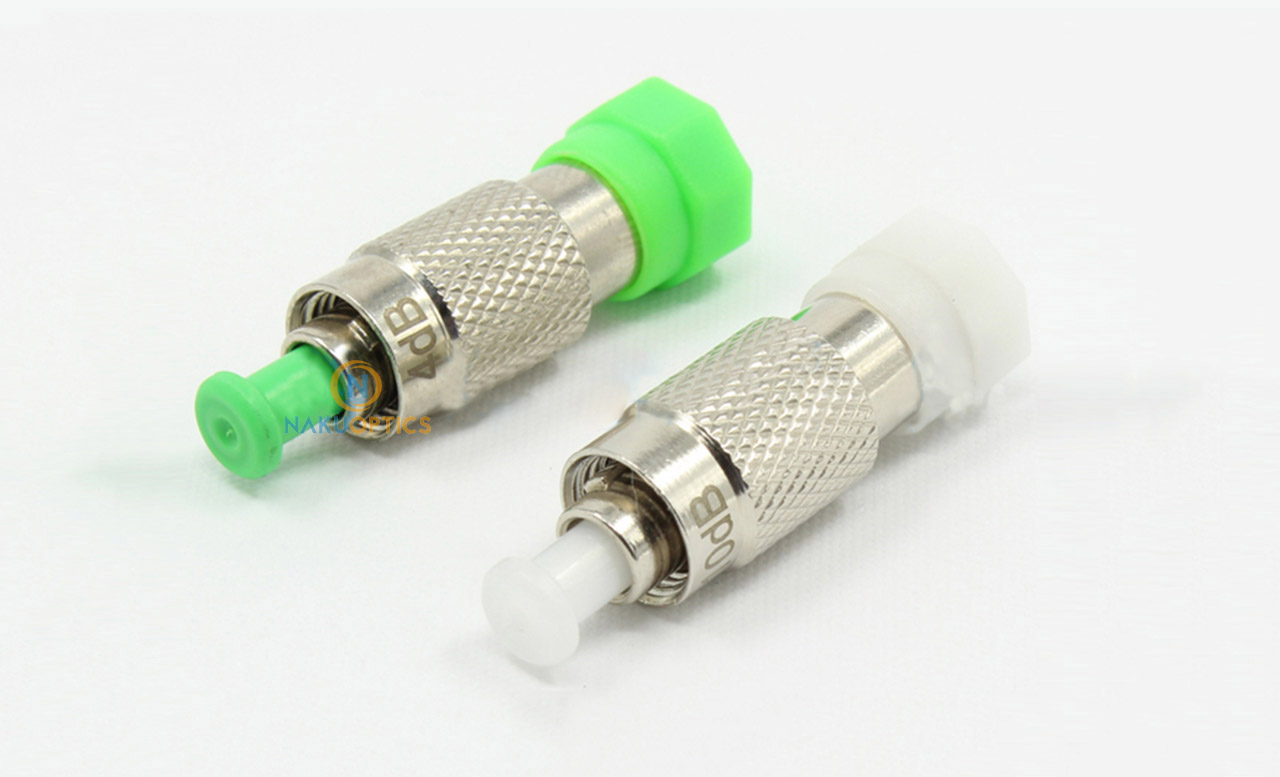

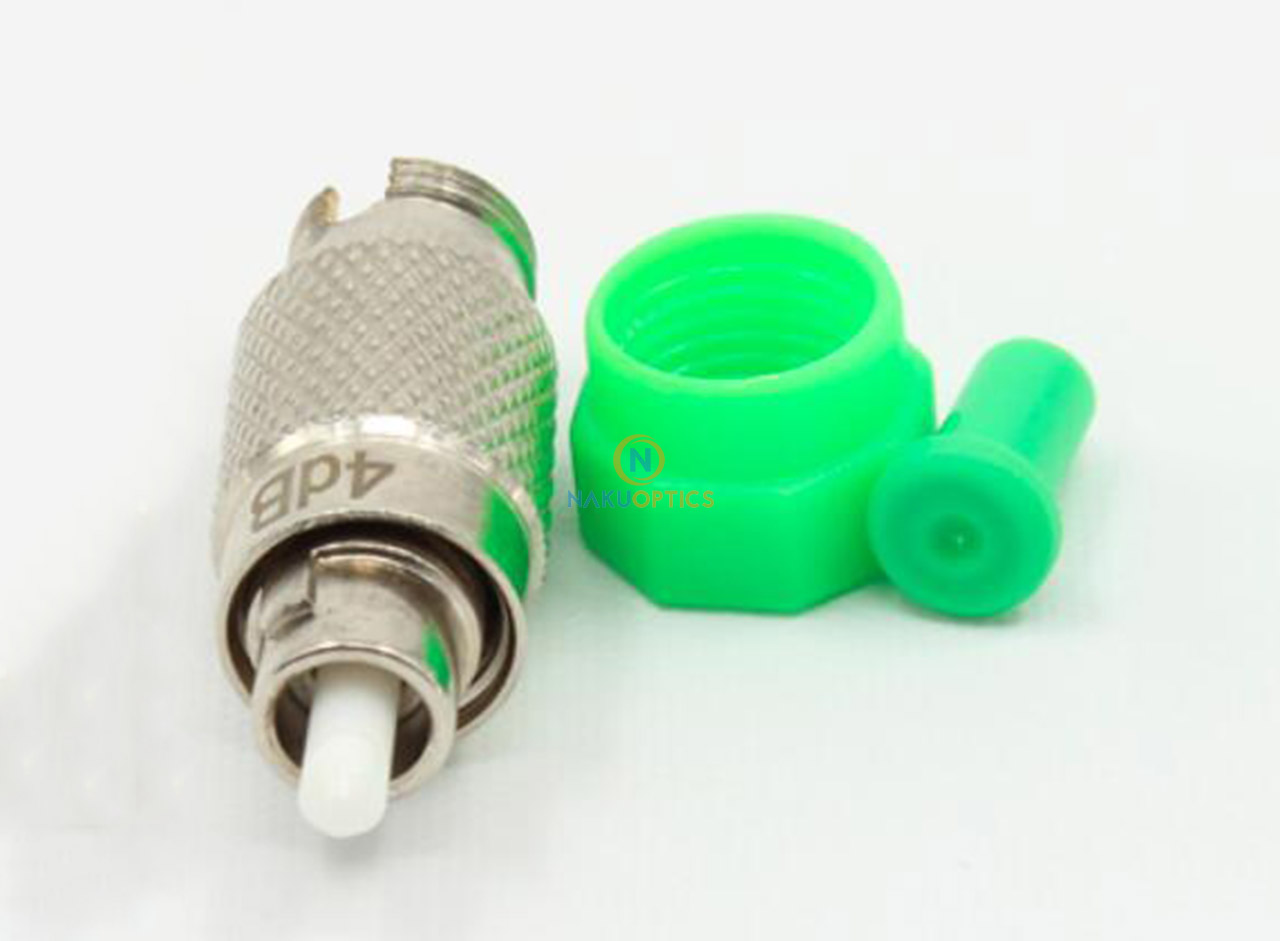

0~30dB FC/PC Yin-Yang Type Fixed Optical Attenuator 10pcs/Set

The Yin-Yang Type Fiber Optic Fixed Attenuator is a type of connector that has one end as an adapter and the other end as a connector. The attenuation value is adjustable. This range of fixed attenuator is mainly used to reduce optical power to a target value in optical links.

[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE

[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

[Specification]

Parameter	Typical Vlue	Unit
Parameter	APC	Unit
Testing Wavelength	1310,1550	nm
Operating Bandwidth Range	1250~1650	nm
Retiurn Loss	≥60.0	dB
Attenuation Range	0~30	dB
Attenuation Tolerance	0~5,±0.5	dB
Attenuation Tolerance	5~30dB,±10%	/
Repeatability	≤0.10	dB
Exchangeability	≤0.20	dB
Durability	1,000 Mating, loss≤0.20	dB
Maximum Input Power	≤200	mW
Operating Temperature	-20~ + 70	℃
Storage Temperature	-40 ~ + 85	℃
