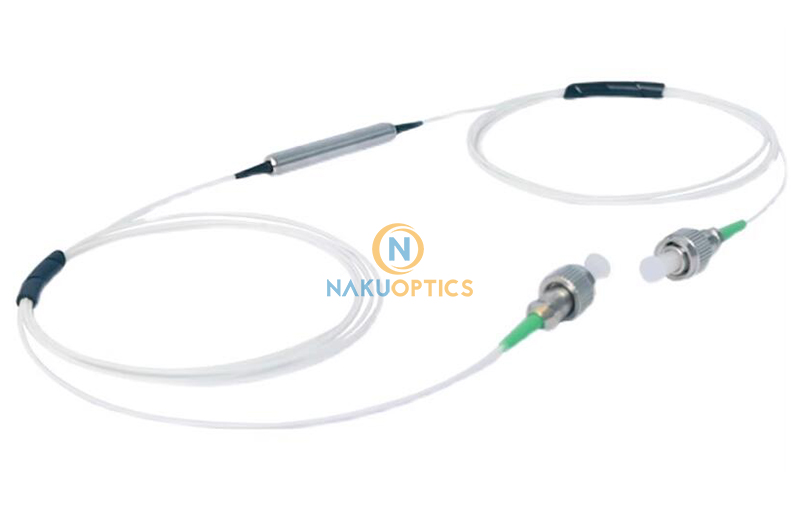

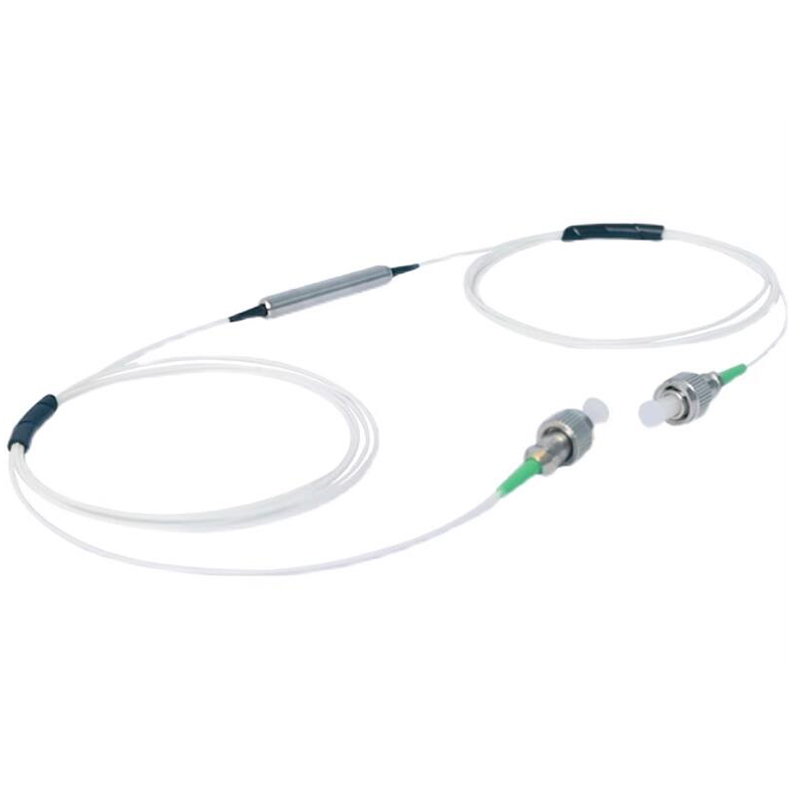

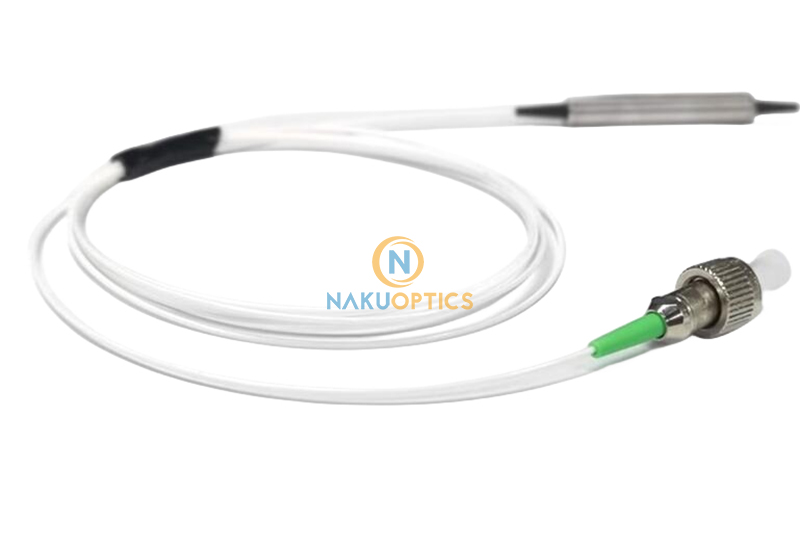

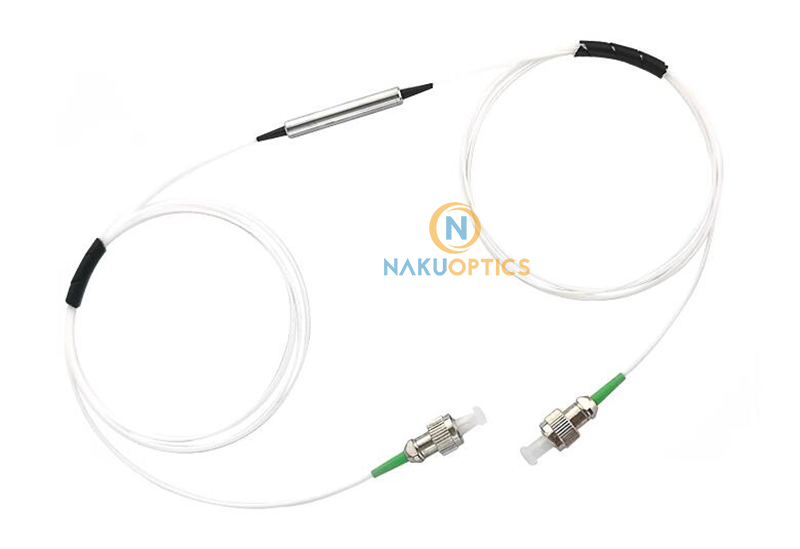

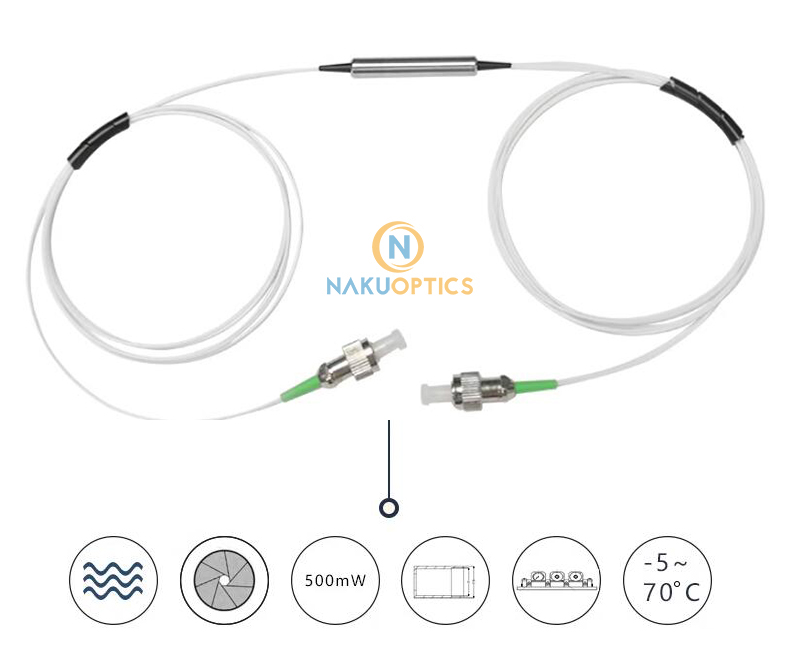

1064nm Single/Dual Stage In-Line SM Fiber Optical Isolator FC/APC
Product ID: 1628
$122.00 – $159.00
1064nm Single/Dual Stage In-Line SM Fiber Optical Isolator FC/APC
Fiber optic isolators mainly use the Faraday effect of magneto-optical crystals to isolate reflected light. They are passive magneto-optical devices that only allow light to be transmitted in one direction. Fiber optic isolators are used to prevent light sources from being adversely affected by back reflection or signals; back reflection The laser may be damaged or cause mode hopping, amplitude changes, or frequency shifts. In high-power applications, backreflections can also cause instability and power spikes. NakuOptics’ isolators have high isolation, low insertion loss, and high power tolerance. Isolators with different wavelengths, powers, and optical fibers can be customized according to user needs. The products are widely used in fiber lasers, fiber amplifiers, laser communications, fiber sensing, and science. scientific research and other fields.
[Features]
High isolation
Low insertion loss
High stability and reliability
[Applications]
Fiber laser
Fiber amplifier
Fiber communication system
Optical test instrument
[Specifications]
| Prameter | Unit | Single Stage | Dual Stage |
| Operation Wavelength | nm | 1064 | |
| Bandwidth | nm | ±10 | |
| Typical Isolation | dB | >40 | >55 |
| Min Isolation | dB | >30 | >45 |
| Typical Insertion Loss | dB | 1.5 | 2.4 |
| Max Insertion Loss | dB | 2.0 | 3.4 |
| Return Loss(In/Out) | dB | >55/50 | >55/50 |
| Polarization Dependent Loss | dB | ≤0.15 | ≤0.15 |
| Polarization Mode Dispersion | dB | 0.2 (0.05 can be customized.) | |
| Fiber Type | Corning Hi1060 fiber | ||
| Connector | FC/APC (customizable) | ||
| Fiber Length | m | 1 (customizable) | |

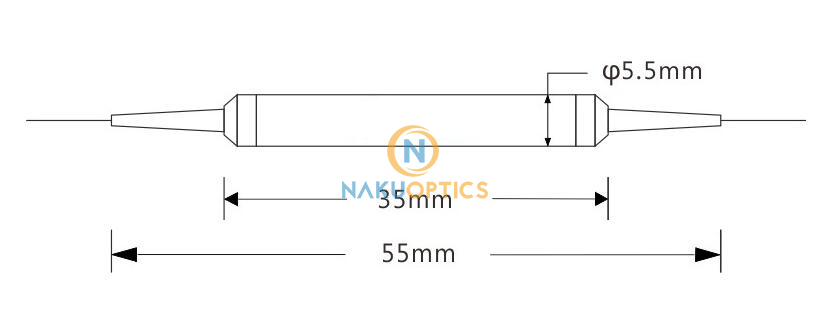

| Package Dimension | mm | Φ5.5*35 | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
*The test environment is 23℃.
Ordering Information
| Wavelength | Stage Type | Power Type | Pigtail Length | Pigtail Type | Connector |
| 1064=1064nm S=Specify |
S=Single stage D=Dual stage |
P=Pulse C=CW |
08=0.8m 10=1.0m 15=1.5m S=Specify |
B=250um bare fiber L=900um loose tube S=Specify |
N=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC S=Specify |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 1.88 kg |
|---|---|
| Stage Type | Single stage, Dual stage |
