10pcs Fiber Coupler 1310nm~1550nm 1X2 Tapered Box Type SM Fiber Optic Splitter

Product ID: 1475


$95.00

10pcs Fiber Coupler 1310nm~1550nm 1X2 Tapered Box Type SM Fiber Optic Splitter

Optical fiber splitter: Like the coaxial cable transmission system, the optical network system also needs to couple and branch the optical signals, which requires an optical splitter to achieve this. The optical splitter and optical splitter are the main components of the optical fiber link. One of the most important passive devices is an optical fiber tandem device with multiple inputs and multiple outputs. M*N is often used to represent a splitter with M inputs and N outputs. The optical splitters used in fiber optic CATV systems are generally 1*2, 1*3 and 1*N optical splitters composed of them.

[Features]
Low insertion loss
Good interchangeability
Uniform light distribution
High echo rate
High stability and repeatability

[Specifications]

Paramter Unit Value
Test Wavelength nm 1310~1550
Operating Wavelength nm 1310~1550

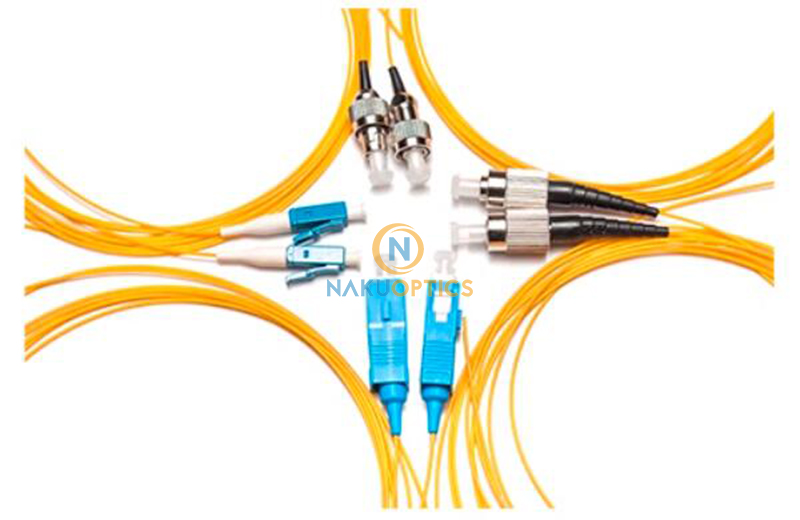

Connector Type FC-UPC (Customizable)
Port Type 3 ports
Split ratio 5:95, 1:99, 10:90, 50:50, 60:40, 70:30, 80:20 (Choose)
Max. Insertion Loss dB 0.6
Max. Uniformity dB 0.8
Max. Directionality dB 55
Return Loss dB 50
Max. Temperature Stability dB 0.6
Max. Polarization Dependent Loss dB 0.3
Max. Wavelength Loss dB 1.0

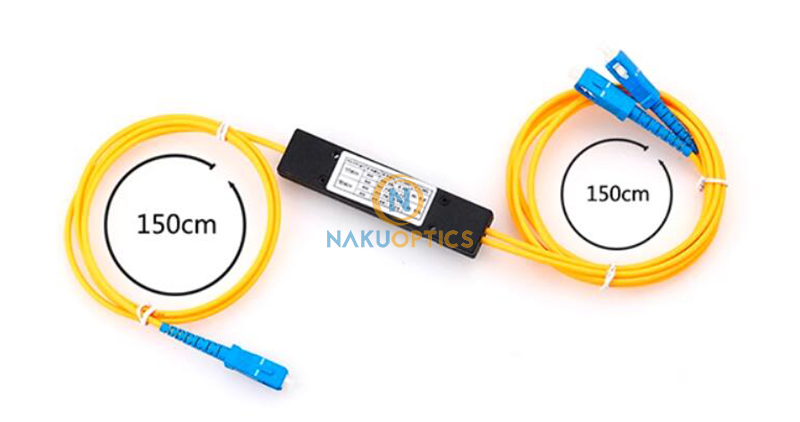

Fiber Length m 1 (Customizable)
Operating Temperature 0 ~ +85
Storage Temperature -40 ~ +85
Package Dimension mm L90 X W20 X H10

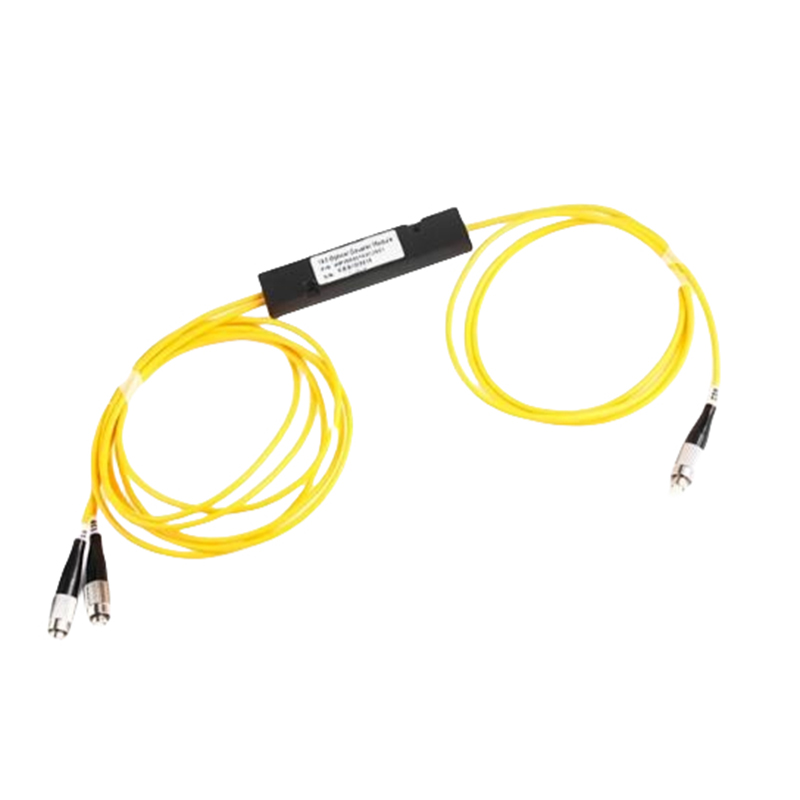

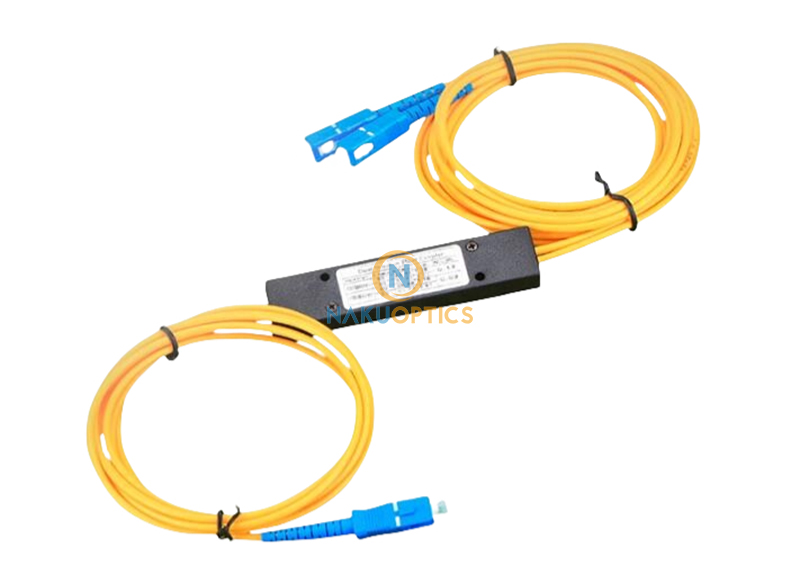

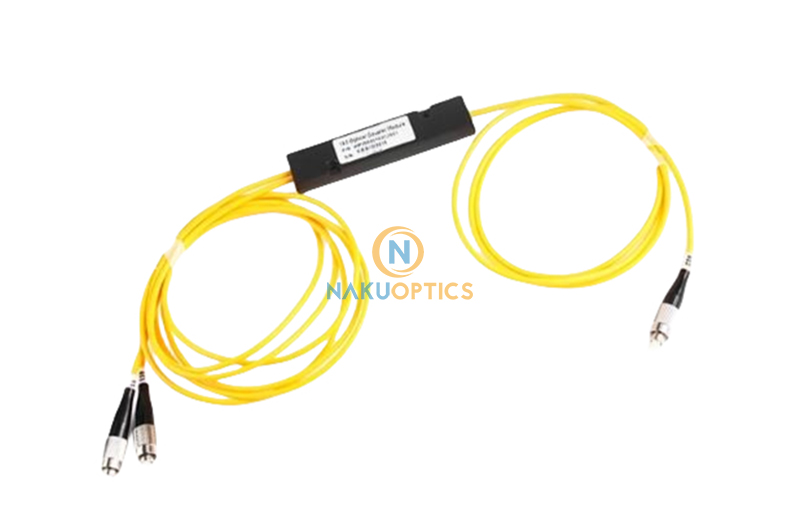

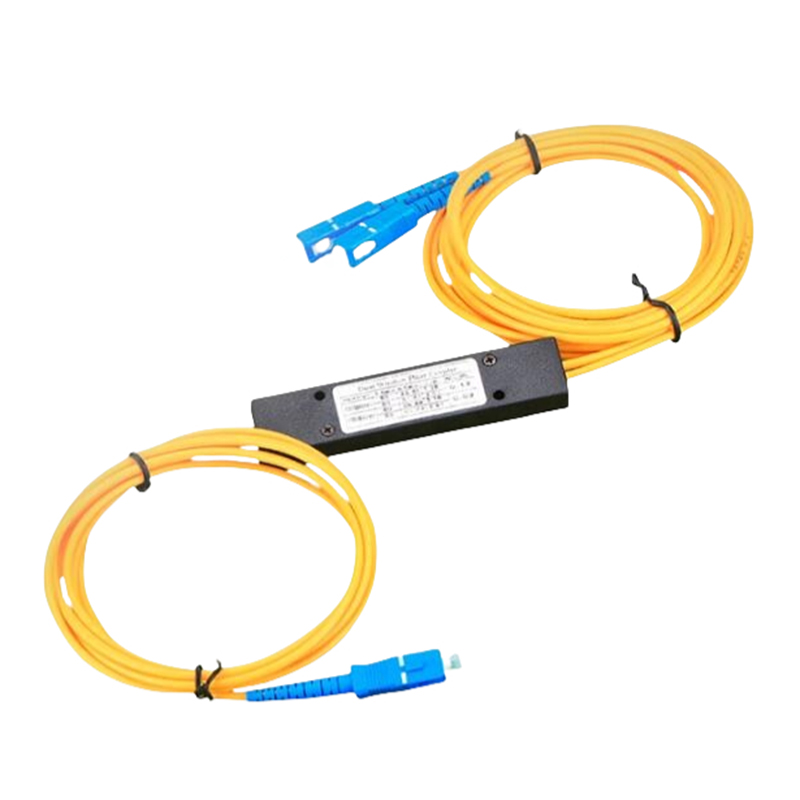

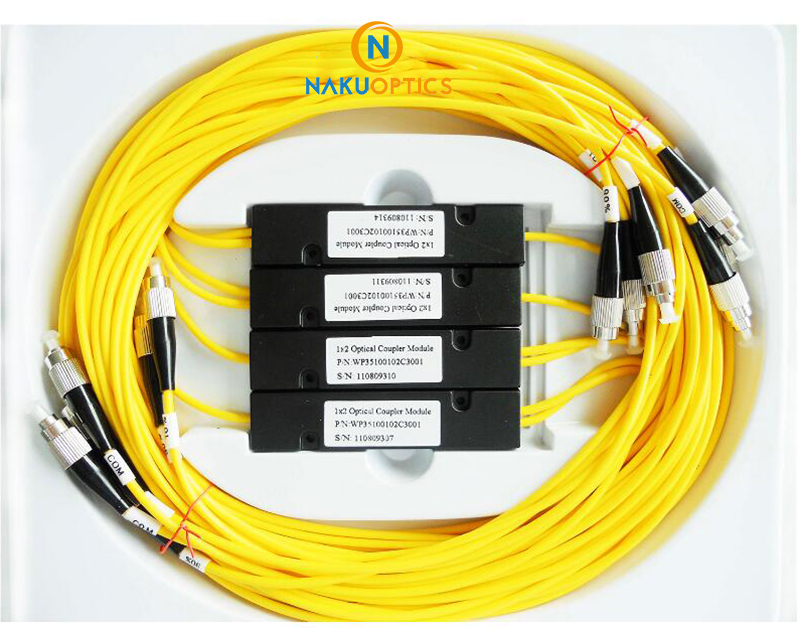

fiber coupler splitter

fiber coupler splitter

fiber coupler splitter

fiber coupler splitter

fiber coupler splitter

SKU: P1475 Category: Tags: ,
Weight 2.61 kg
Split Ratio

1 : 99, 5 : 95, 10 : 90, 50 : 50, 60 : 40, 70 : 30, 80 : 20
