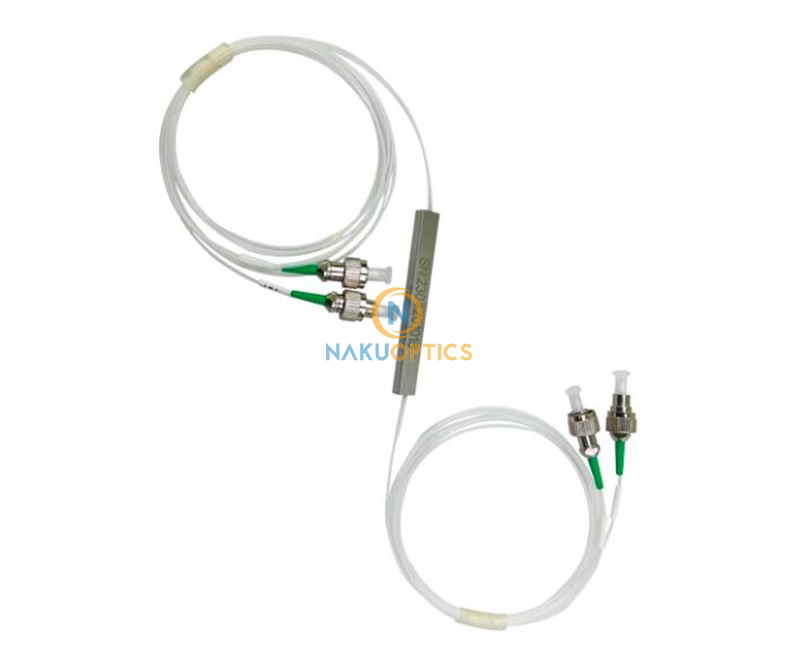

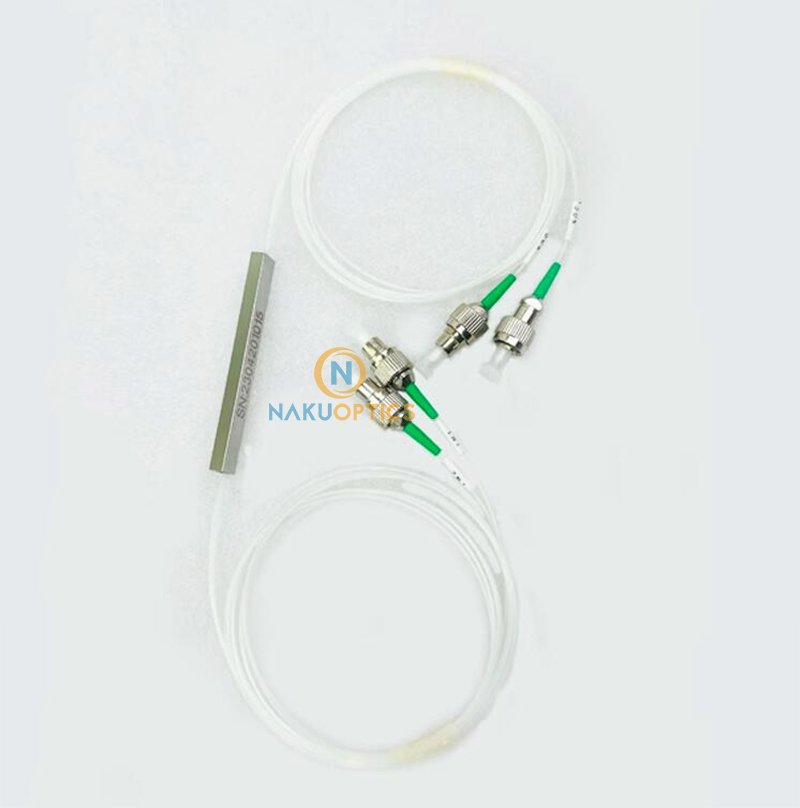

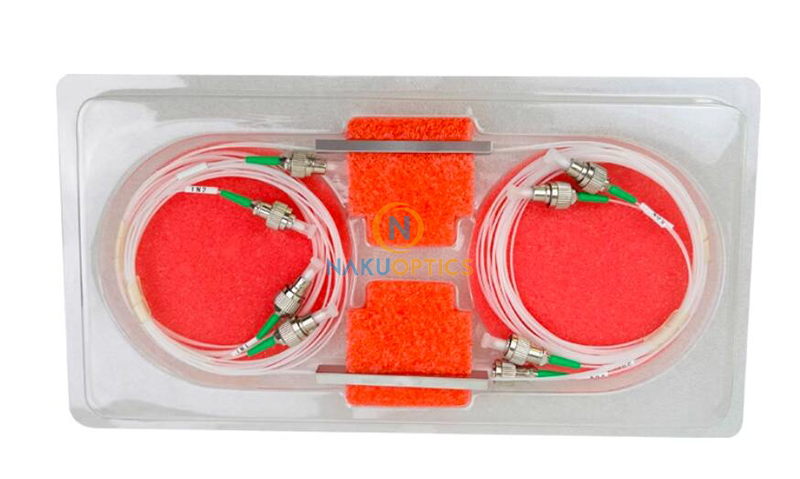

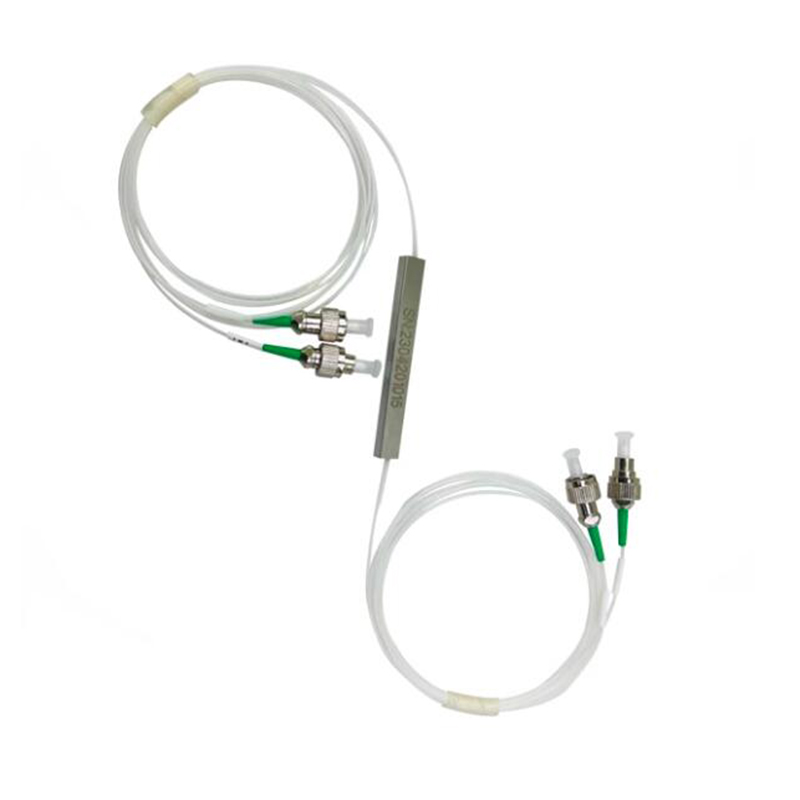

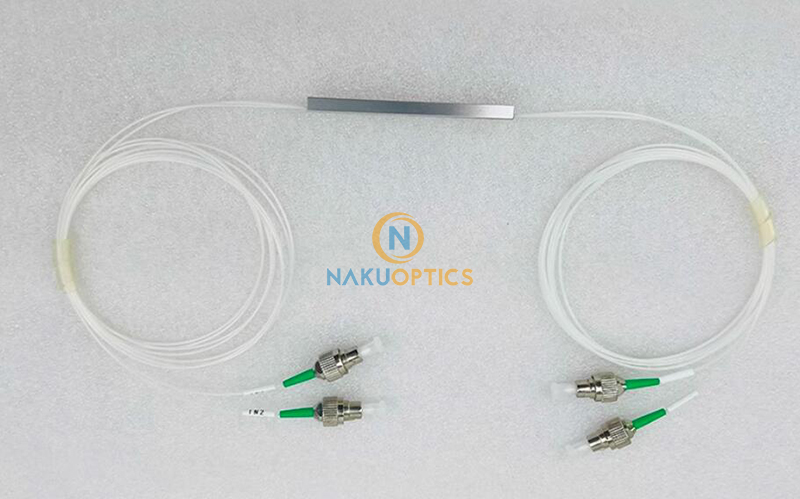

1260~1650nm 2X2 Single-mode Fiber Coupler Equalizing Beam Splitter Customized Product
Product ID: 1566
$128.00
1260~1650nm 2X2 Single-mode Fiber Coupler Equalizing Beam Splitter Customized Product
Planar waveguide light optical distributor (PLC Splitter), is a kind of planarwaveguide integrated optical device, it can be 1260nm ~ 1650nm such a widerange of wavelengths of light power reservation in realization. thedistribution of wavelength range covers EPON technology used 1310nm, 1490nmand 1550nm three wavelengths. Especially suitable for EPON Ethernet passiveoptical network access technology FTTP fiber network system, broadbandpassive optical optical distributor (POS) use.
[Features]
Low insertion loss and high uniform
Low polarization dependent loss
Excellent environmental stability
Excellent mechanical stability
[Applications]
FTTP
FTTH
Passive optical networks (PON)
Gigabit passive optical networks (GPON)
Local area networks (LAN)
Cable television networks (CATV)
Test equipment
[Specifications]
| Prameter | Unit | Value |
| Port Type | 2X2 | |
| Operating Wavelength | nm | 12060~1650 |
| Typical Insertion Loss | dB | 4.2 |
| Max Insertion Loss | dB | 4.5 |
| Max Uniformity | dB | 0.6 |
| Max Polarization Dependent Loss | dB | 0.3 |
| Min Return Loss | dB | 50 |
| Min Directivity | dB | 55 |
| Fiber Type | SMF-28e or require | |
| Fiber Length | m | 1 or customize |
| Operating Temperature | ℃ | -20 ~ +75 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Package Dimension | mm | 4*4*40 or 4*4.5*45 |
1. All measurements at room temperature.
2. Specification exclude connector loss.
.jpg)
.jpg)
.jpg)
.jpg)
