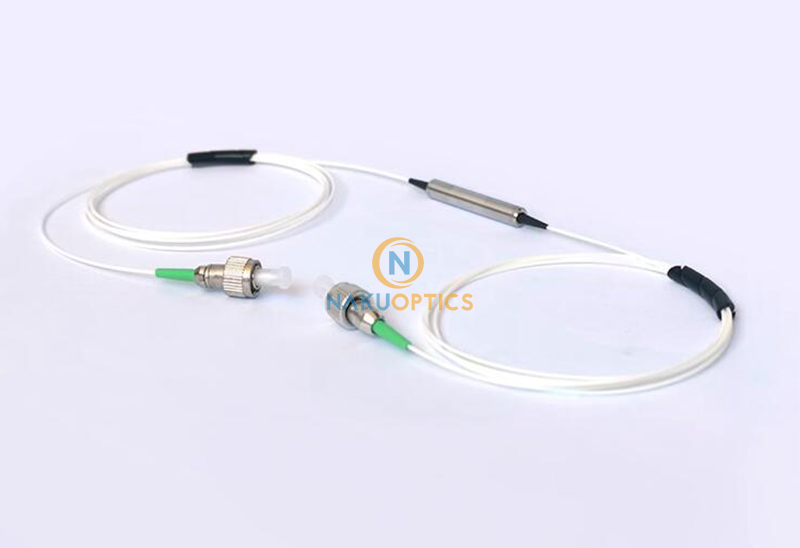

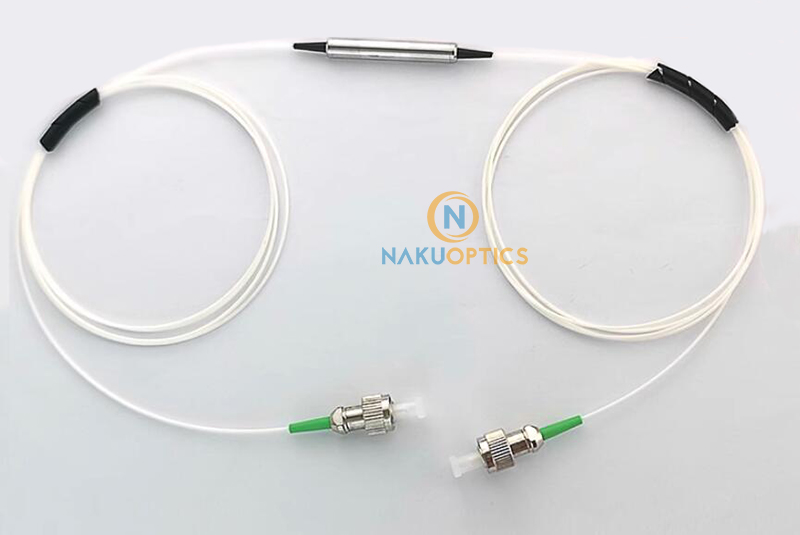

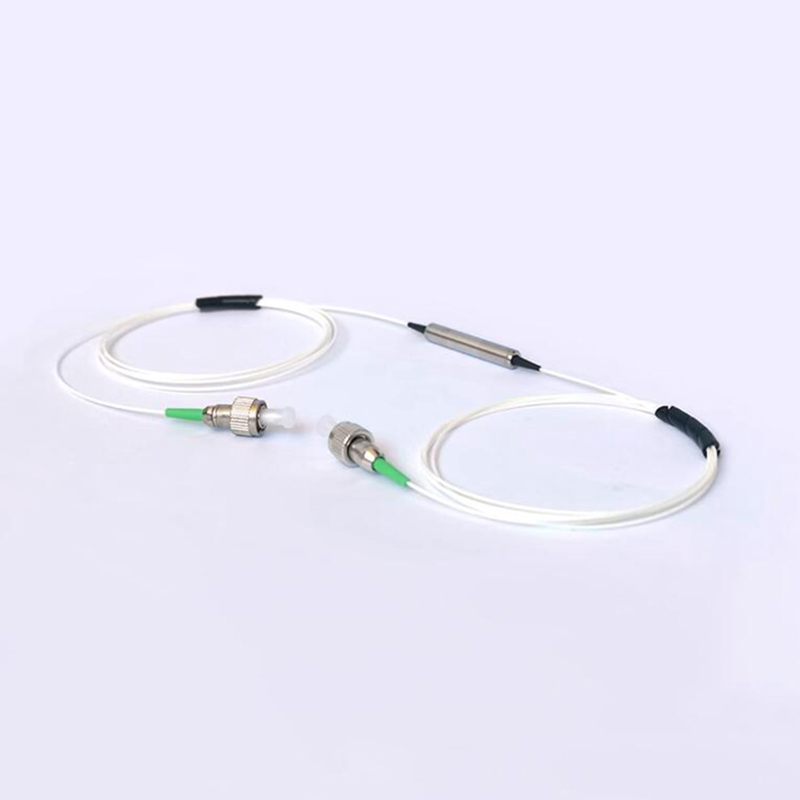

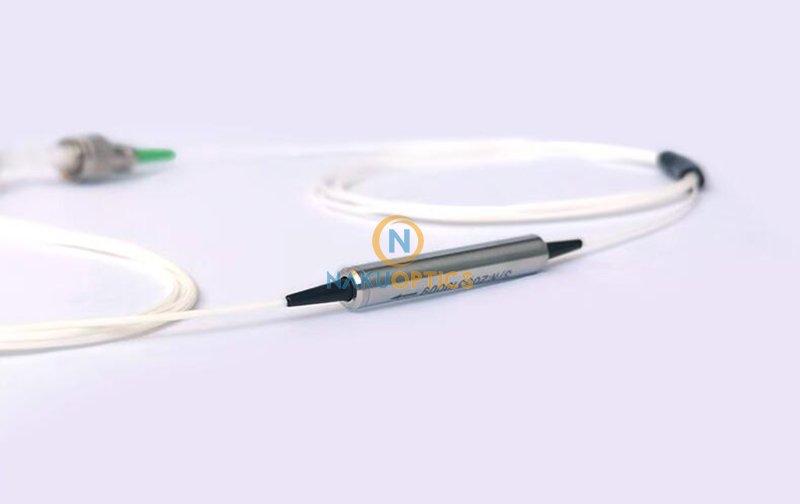

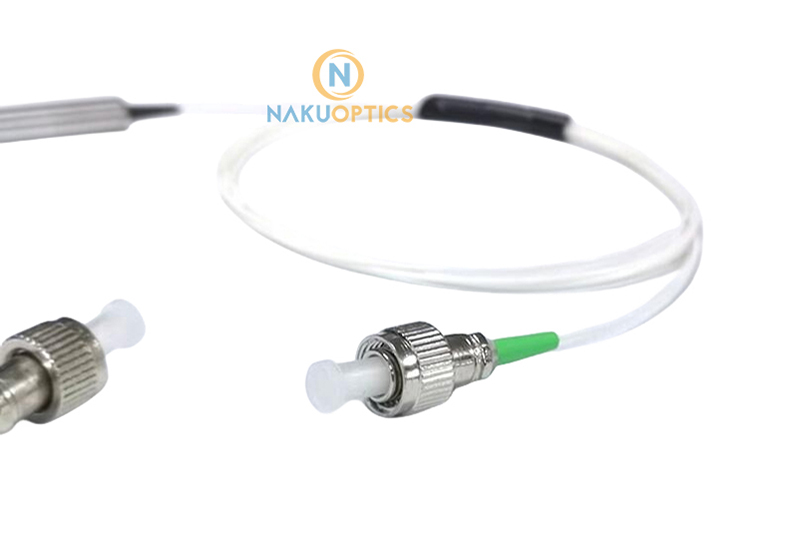

1310nm 1550nm Single/Dual Stage Fiber Isolator In-Line Optical Isolator

Product ID: 1623

$59.00 – $79.00

1310nm 1550nm Single/Dual Stage Fiber Isolator In-Line Optical Isolator

[Features]
High isolation
Low insertion loss
High stability and reliability
Low polarization dependent loss

[Applications]
Fiber laser
Fiber amplifier
Fiber communication system
CATV

[Specifications]

Prameter Unit P Grade A Grade
Single Stage
Operation Wavelength nm 1310 or 1550
Typical Isolation dB 40 40
Min Isolation dB 30 28
Typical Insertion Loss dB 0.35 0.45
Max Insertion Loss dB 0.5 0.7
Dual Stage
Operation Wavelength nm 1310 or 1550
Typical Isolation dB 56 50
Min Isolation dB 45 42
Typical Insertion Loss dB 0.5 0.5
Max Insertion Loss dB 0.7 0.8
Return Loss(In/Out) dB ≥65/60 ≥55/55
Polarization Dependent Loss dB ≤0.05 ≤0.1
Polarization Mode Dispersion dB 0.2
Bandwidth dB ±30
Operating Temperature ℃ -5 ~ +75
Storage Temperature ℃ -40 ~ +85
Fiber Type Corning SMF-28e


Ordering Information

Type Wavelength Grade Pigtail Type Pigtail Length Connector
IS=Single stage
ID=Dual stage		 1310=1310nm
1480=1480nm
1550=1550nm
LB=L Band		 P=P Grade
A=A Grade		 1=Bare fiber
2=900um jacket		 10=1.0m
15=1.5m
20=2.0m
S=Specify		 N=None
FA=FC/APC
FP=FC/PC
SA=SC/APC
SP=SC/PC
ST=ST
LC=LC



fiber isolator

fiber isolator

fiber isolator

fiber isolator

SKU: P1623 Category: Tag:
Weight 2.55 kg
Stage Type

Single stage, Dual stage
