Fiber Coupler, PM Fiber Coupler

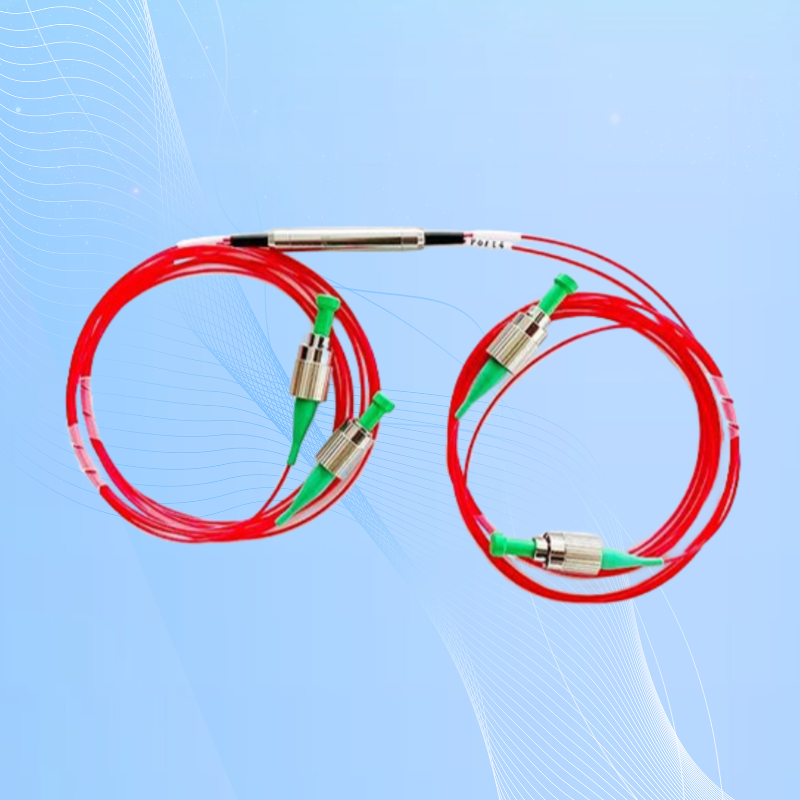

1550nm 2×2 PM Tapered Coupler with Panda Fiber Slow Axis Alignment Any split ratio
Product ID: 1224
$316.00
1550nm 2×2 PM Tapered Coupler with Panda Fiber Slow Axis Alignment Any split ratio
[Features]
Low excess loss
Low insertion loss
High extinction ratio
High stability and reliability
[Applications]
Optical amplifier
Power monitoring
Coherent communications
Fiber gyroscope
Fiber sensor
[Specifications]
Product Name: PM taper coupler
Wavelength: 1550nm
Port Type: 2×2
Fiber Length: 0.8m(Default)
Connector Type: Default FC, can be customized.

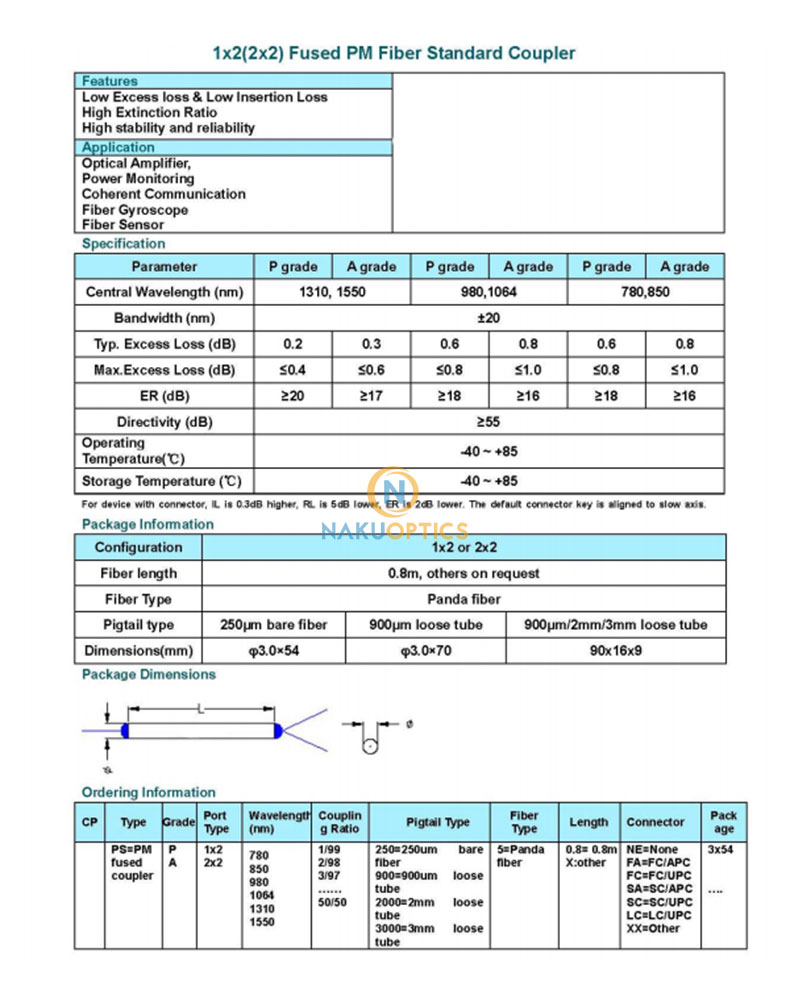

| Parameters | P Grade | A Grade | P Grade | A Grade | P Grade | A Grade |
| Central Wavelength(nm) | 1310, 1550 | 980, 1064 | 780, 850 | |||
| Bandwidth(nm) | ±20 | |||||
| Typical Excess Loss(dB) | 0.2 | 0.3 | 0.6 | 0.8 | 0.6 | 0.8 |
| Max. Excess Loss(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤0.8 | ≤1.0 |
| Extinction Ratio(dB) | ≥20 | ≥17 | ≥18 | ≥16 | ≥18 | ≥16 |
| Directivity(dB) | ≥55 | |||||
| Operating Temperature(℃) | -40~+85 | |||||
| Storage Temperature(℃) | -40~+85 | |||||
For device connector , IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.
[Package Information]
| Configuration | 2×2 | ||
| Fiber Length | 0.8m, others on request. | ||
| Fiber Type | Panda fiber | ||
| Pigtail Type | 250μm bare fiber | 900μm loose fiber | 900μm/2mm/3mm loose tube |
| Dimensions(mm) | ψ3.0×54 | ψ3.0×70 | 90x16x9 |
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.08 kg |
|---|
