Faraday Rotating Mirror
1550nm Single-mode Fiber Faraday Rotating Mirror FRM Rotation Angle Optional
Product ID: 1640
$76.00 – $79.00
1550nm Single-mode Fiber Faraday Rotating Mirror FRM Rotation Angle Optional
This fiber faraday rotating mirror can minimize polarization state changes in optical fibers caused by thermal and mechanical disturbances.
[Features]
Low insertion loss
High return loss
High stability and reliability
[Specifications]
| Prameter | Unit | Value |
| Center Wavelength | nm | 1550 |
| Operating Bandwidth | nm | ±15 |
| Typical Insertion Loss | dB | 0.4 |
| Max Insertion Loss | dB | 0.6 |
| Rotation Angle (One Way) | degree | 45, 90 (Choose) |
| Rotation Angle Error | degree | ±1 |
| Polarization Dependent Loss | dB | 0.1 |
| Withstand Power | mW | 300 |
| Fiber Type | SMF-28e (Customizable) | |
| Fiber Length | m | 1 (Customizable) |
| Connector | FC/APC (Customizable) | |
| Max Tensile Load | N | 5 |

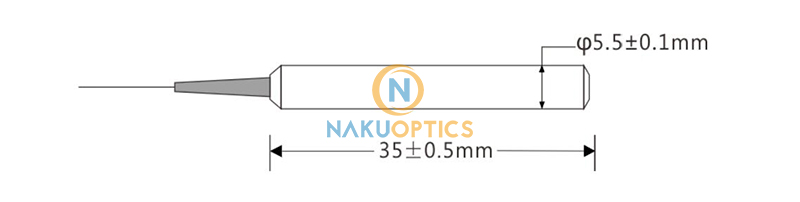

| Package Dimension | mm | Φ5.5*L35 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
*The test environment is 23℃;
*The above test data does not include connectors. If connectors are added, the insertion loss will increase by 0.3dB and the return loss will decrease by 5d8. For polarization-maintaining products, the extinction ratio is reduced by 2dB.
Ordering Information
| Wavelength | Power (CW) | Fiber Type | Pigtail Length | Tail Sleeve Type | Connector |
| 1310=1310nm 1480=1480nm 1550=1550nm S=Specify |
00=300mW 01=1W S=Specify |
1=SMF-28e S=Specify |
08=0.8m 10=1.0m 15=1.5m S=Specify |
B=250um bare fiber L=900um loose tube S=Specify |
N=None FA=FC/APC FP=FC/PC SP=SC/PC S=Specify |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.86 kg |
|---|---|
| Rotation Angle | 45°, 90° |
