1570nm 10mW 1MHz Line-width DFB SM Fiber Coupled Pump Laser Source
Product ID: 576
$1,389.00 – $1,539.00
1570nm 10mW 1MHz Line-width DFB SM Fiber Coupled Pump Laser Source
This single-wavelength laser has a high-performance butterfly semiconductor laser chip with a wavelength of 1570nm. The drive and temperature control circuit are professionally designed to ensure safe operation of the laser and stable output power and spectrum. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers.
[Features]
DFB cavity laser
Power and spectral high stability
Narrow spectral line width
Adjustable output power
Module or desktop package
[Applications]
Thulium-doped fiber laser
Optical fiber sensing
Optical Fiber Communication
Optical experiment
[Specification]
|
Parameters |
Unit |
Typical Value |
Remarks |
| Model |
— |
FL-1570-10-SM |
|

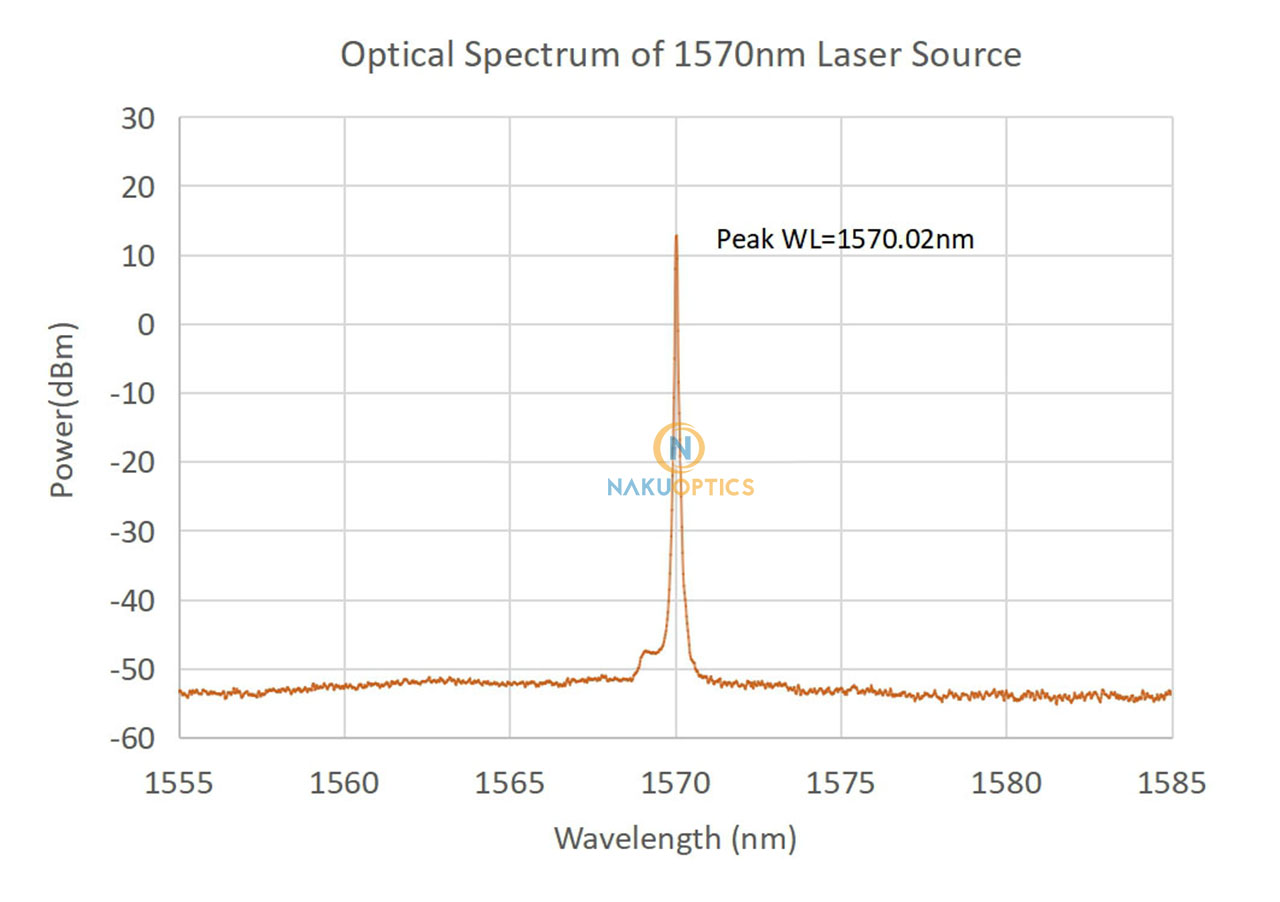

| Working Wavelength |
nm |
1570±0.5 |
1540~1565nm Customizable |
| Spectral Linewidth |
MHz |
≤ 1 |
|
| Sideband Suppression Ratio |
dB |
>50 |
|
| Working Mode |
— |
CW |
Continuous Laser |
| Output Power |
mW |
10 |
|
| Power Adjustment Range |
— |
10~100% |
|
| Short-term Stability (15 minutes) |
dB |
≤ ±0.02 |
Equivalent≤±0.5% |
| Long-term Stability (8 hours) |
dB |
≤ ±0.05 |
Equivalent≤±1.2% |
| Pigtail Fiber Type |
— |
SMF-28 SM Fiber |
|
| Fiber Interface Type |
— |
FC/APC |
|
|
Electrical and environmental parameters |
DeskTop Type |
| Control method |
Button |
| Communication interface |
DB9 Female(Default not include) |
| Power supply |
100~240V AC, <30W |
| Size |
260(W)×280(D)×120(H)mm |
| Operating temperature range |
-5~+35°C |
| Operating humidity range |
0~70% |
.jpg target=)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 3.76 kg |
|---|---|
| Control Mode | Button, Button+Software |
