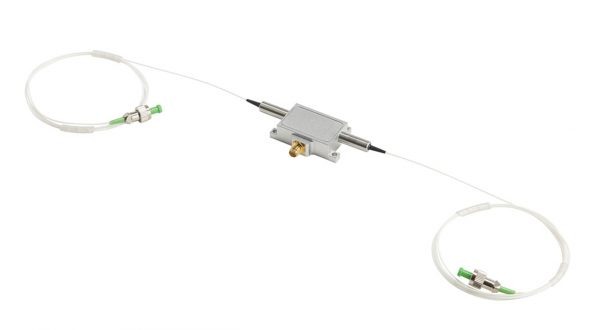

1650nm Fiber Coupled AOM
1650nm 200MHz 5dB Insertion Loss 10ns Rise-Time Fiber Coupled AOM
Product ID: 1008
$1,334.00 – $1,780.00
1650nm 200MHz 5dB Insertion Loss 10ns Rise-Time Fiber Coupled AOM
[Applications]
Optical switch
Laser wavelength shift
[Note]
Lead Time: 3~4 weeks
[Specifications]
| Parameter | Unit | Min | Max | Typical Value | Remarks |
|---|---|---|---|---|---|
| Material | TeO² | ||||
| Wavelength | nm | 1580 | 1670 | 1650 | |
| Average Optical Power Handling | W | 0.5 | |||
| Peak(pulse) Optical Power Handling | kW | 0.5 | |||
| Ultrasonic Velocity | m/s | 4200 | |||
| Insertion Loss | dB | 5 | |||
| Polarized Extinction Ratio (PER) | dB | 18 | |||
| ER(1st order ON/OFF) | dB | 60 | |||
| Return Loss (RF ON) | dB | 40 | |||
| Rise/Fall-Time | ns | 10 | (10%~90%) | ||
| Center Frequency | MHz | 200 | |||
| Frequency Shift | MHz | +200 | -200MHz can be customized | ||
| Radio Frequency Power | W | 2.5 | |||
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 | ||||
| Input Resistance | Ω | 50 | |||
| Device Interface | SMA | ||||
| Fiber Type | SM/PM Fiber | Choose | |||
| Fiber Length | m | 1 | |||
| Fiber Termination | FC/APC | ||||
| Operating Temperature | ℃ | -20~+60 | |||
| Storage Temperature | ℃ | -30~+70 | |||
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 1.5 kg |
|---|---|
| Fiber Type | |
| RF Driver |
