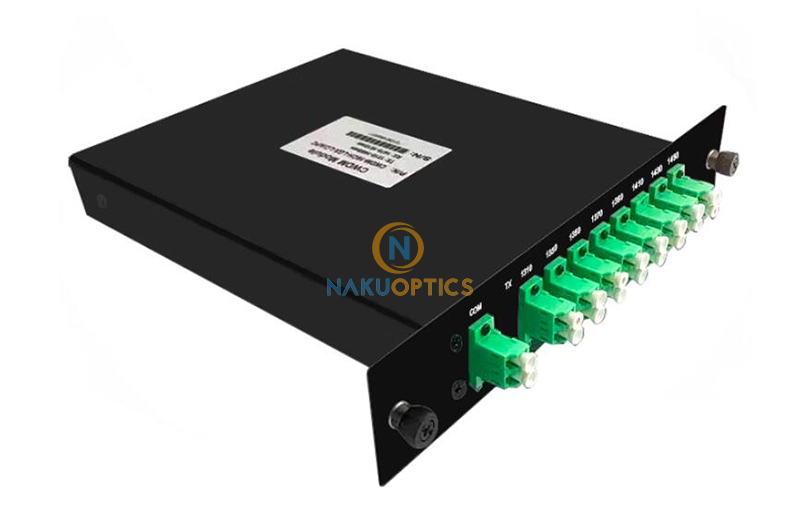

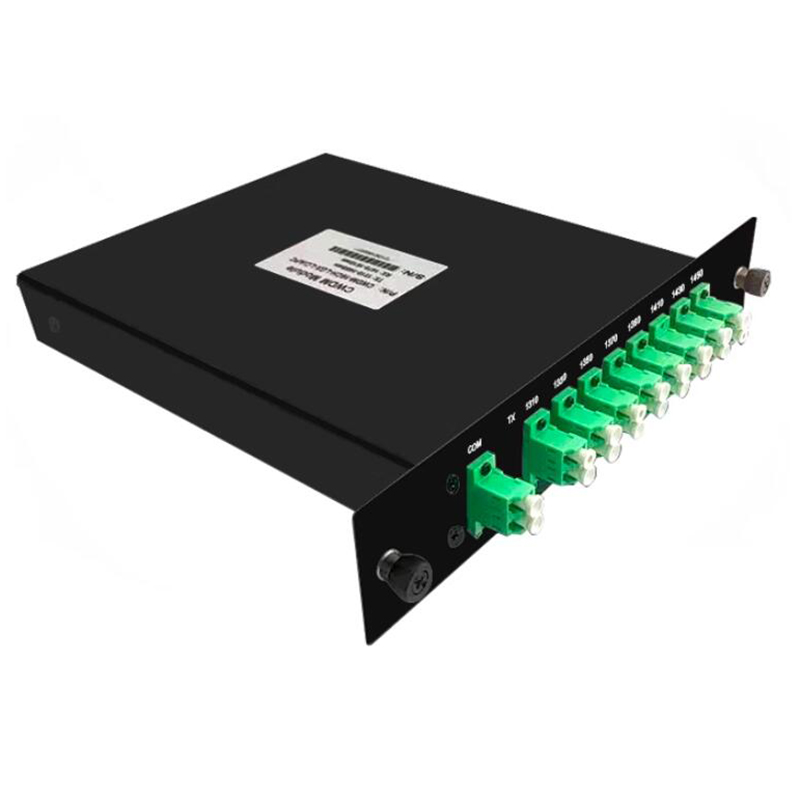

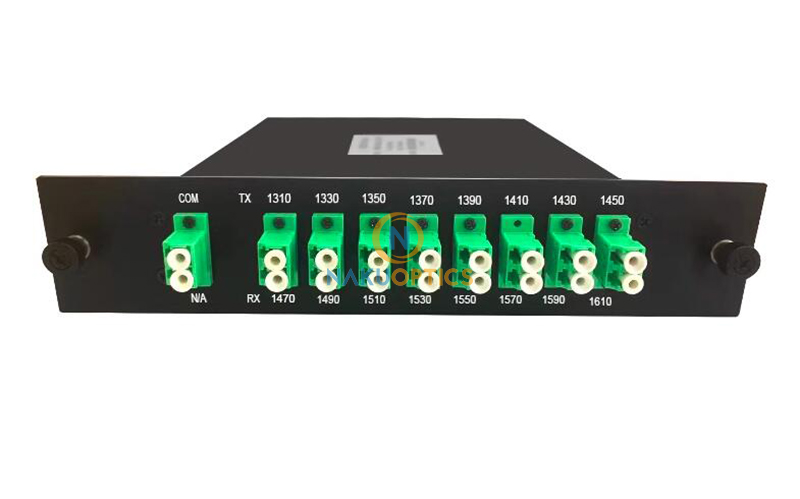

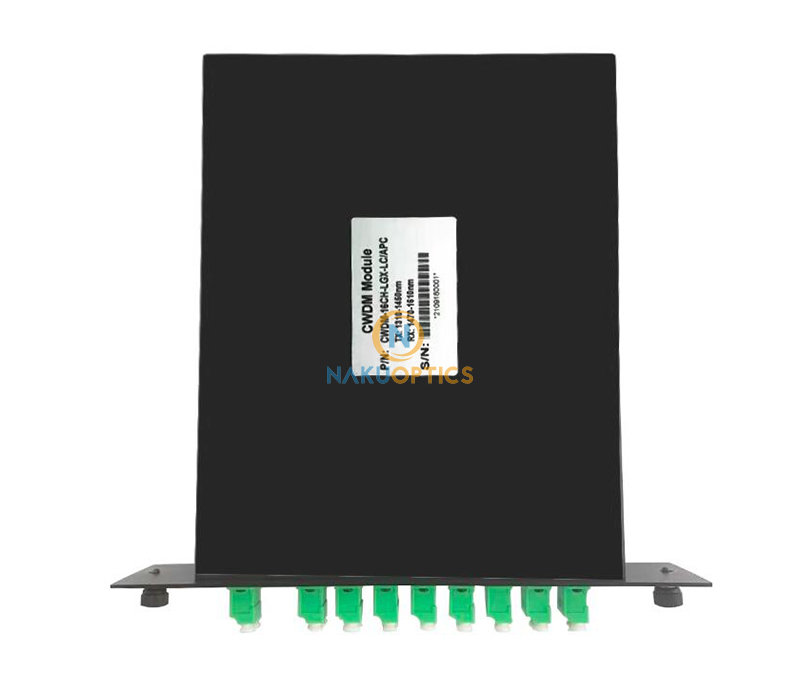

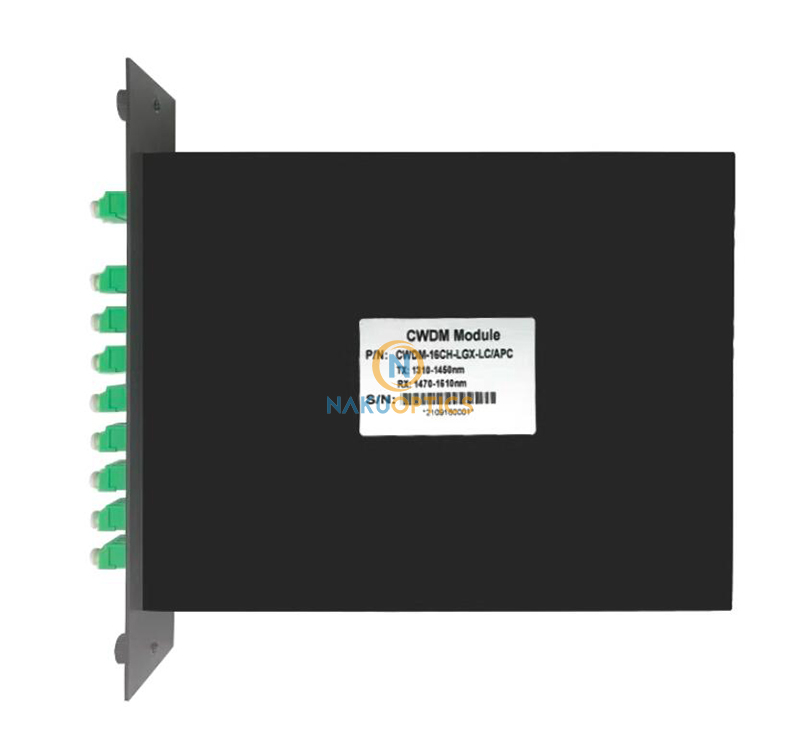

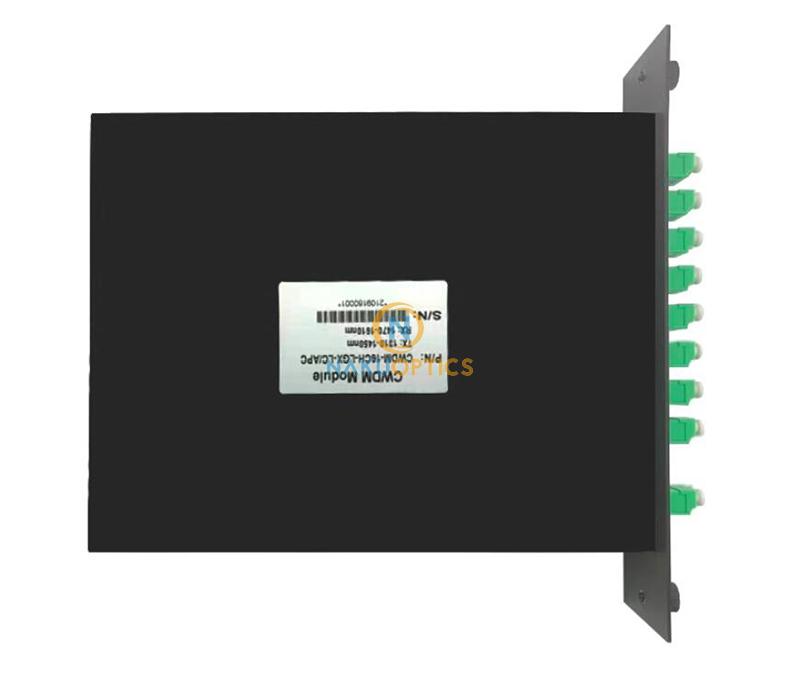

16CH CWDM Mux Demux BiDi LGX Aluminum Box 16 Channels CWDM Multiplexer LC/APC
Product ID: 1824
$149.00
16CH CWDM Mux Demux BiDi LGX Aluminum Box 16 Channels CWDM Multiplexer LC/APC
[Features]
Low insertion loss
High isolation
Low polarization dependent loss
High stability
[Specifications]
| Parameters | Unit | Mux | DeMux |
| Operating Wavelength | nm | 1270-1610 | |
| Center Wavelength Accuracy | nm | ±0.5 | |
| Channel Spacing | nm | 20 | |
| Band Width (@0.5dB bandwidth) | nm | >13 | |
| Insertion Loss | dB | ≤4.5 | |
| Channel Consistency | dB | ≤1.5 | |
| Bandwidth Fluctuations | dB | 0.3 | |
| Adjaccent Isolation | dB | N/A | >30 |
| Non-Adjaccent Isolation | dB | N/A | >40 |
| Insertion Loss Thermal Stability | dB/℃ | <0.005 | |
| Polarization Dependent Loss | dB | <0.1 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Dierctivity | dB | >50 | |
| Return Loss | dB | >45 | |
| Rated Power | mW | 300 | |
| Operating Temperature | ℃ | -5 ~ +75 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.68 kg |
|---|
