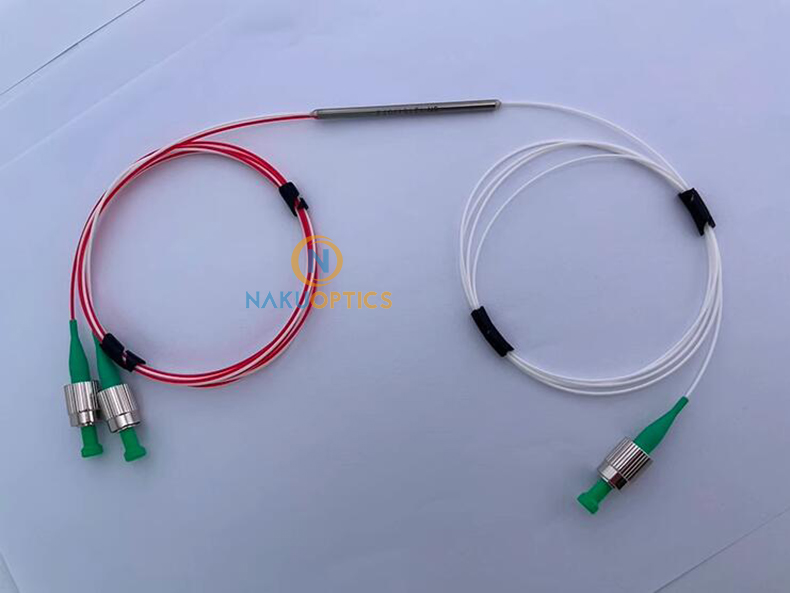

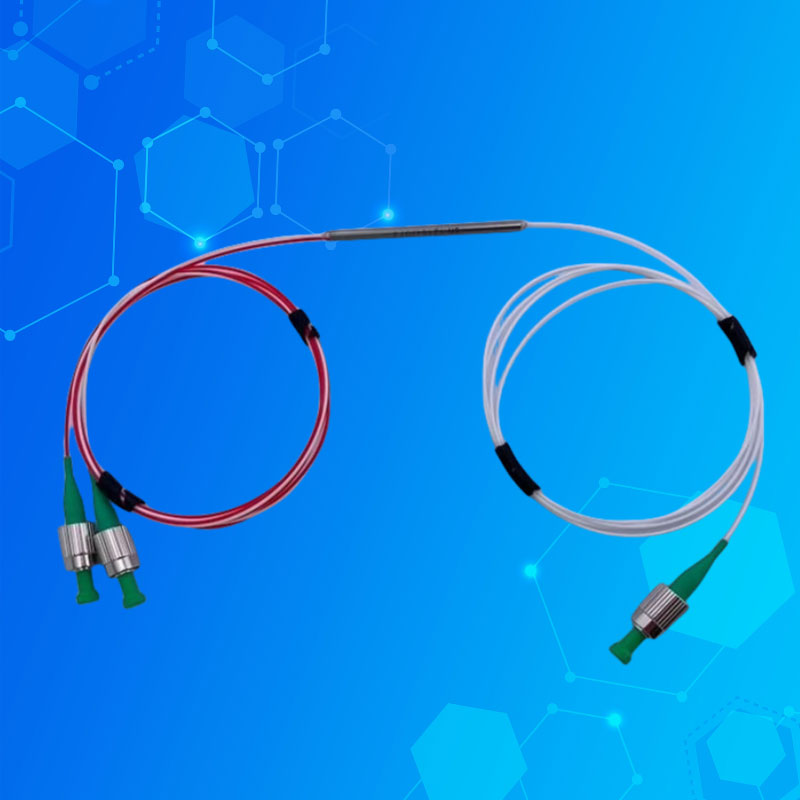

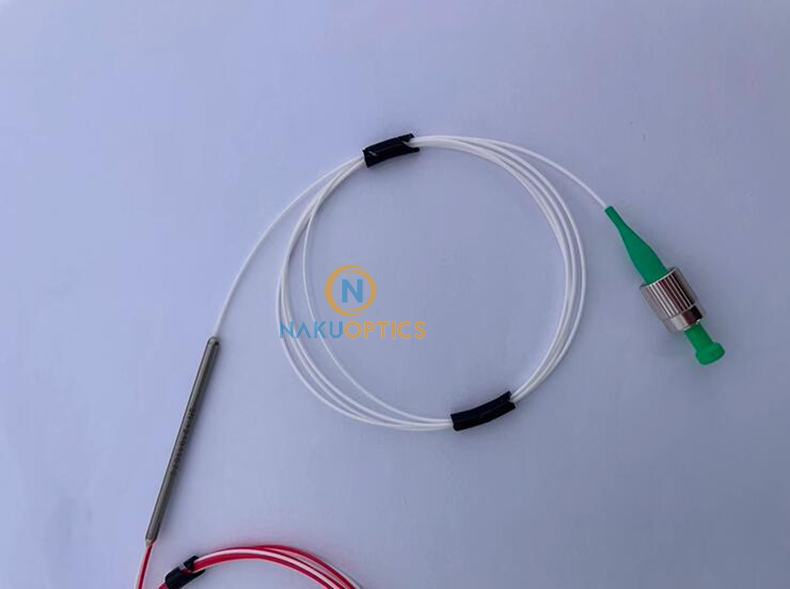

1×2 1550nm Partition Maintaining Taper Coupler Panda Fiber Slow Axis Alignment

Product ID: 1221

$235.00

1×2 1550nm Partition Maintaining Taper Coupler Panda Fiber Slow Axis Alignment

[Features]
Low excess loss
Low insertion loss
High extinction ratio
High stability and reliability

[Applications]
Optical amplifier
Power monitoring
Coherent communications
Fiber gyroscope
Fiber sensor

[Specifications]
Product Name: PM taper coupler
Wavelength: 1550nm
Port Type: 1×2
Fiber Length: 0.8m(Default)
Connector Type: Default FC, can be customized.

Parameters P Grade A Grade P Grade A Grade P Grade A Grade
Central Wavelength(nm) 1310, 1550 980, 1064 780, 850
Bandwidth(nm) ±20
Typical Excess Loss(dB) 0.2 0.3 0.6 0.8 0.6 0.8
Max. Excess Loss(dB) ≤0.4 ≤0.6 ≤0.8 ≤1.0 ≤0.8 ≤1.0
Extinction Ratio(dB) ≥20 ≥17 ≥18 ≥16 ≥18 ≥16
Directivity(dB) ≥55
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

For device connector , IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

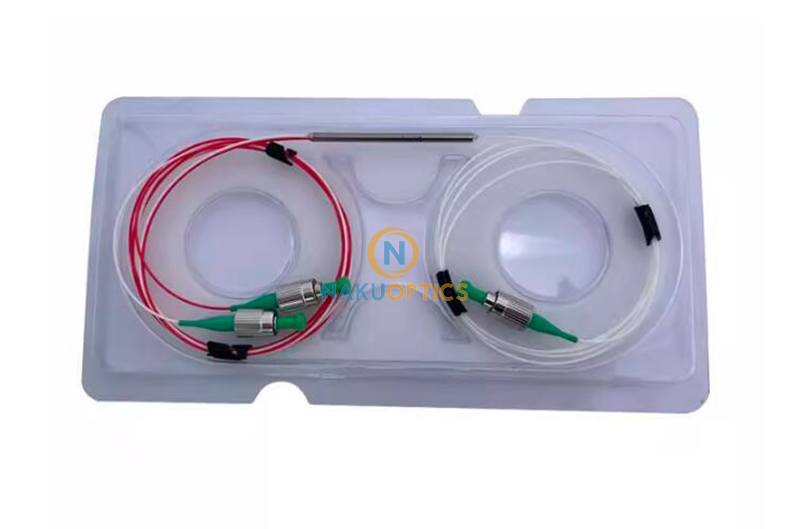

[Package Information]

Configuration 1×2
Fiber Length 0.8m, others on request.
Fiber Type Panda fiber
Pigtail Type 250μm bare fiber 900μm loose fiber 900μm/2mm/3mm loose tube
Dimensions(mm) ψ3.0×54 ψ3.0×70 90x16x9

SKU: P1221 Categories: , Tag:
Weight 5.57 kg
