CWDM

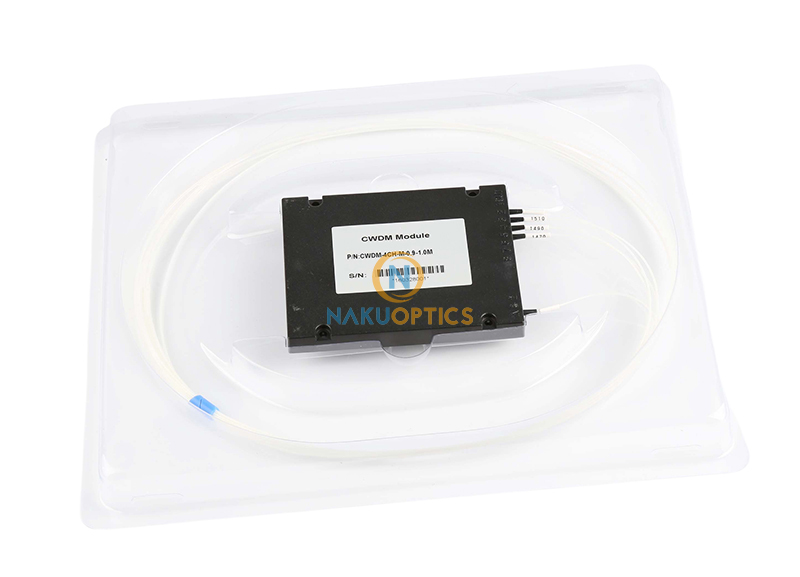

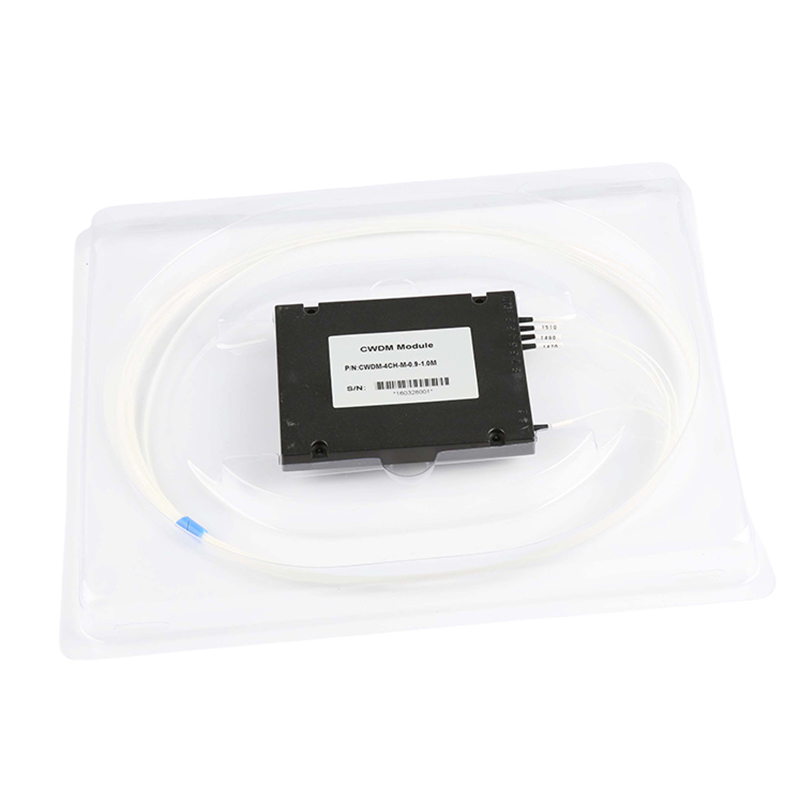

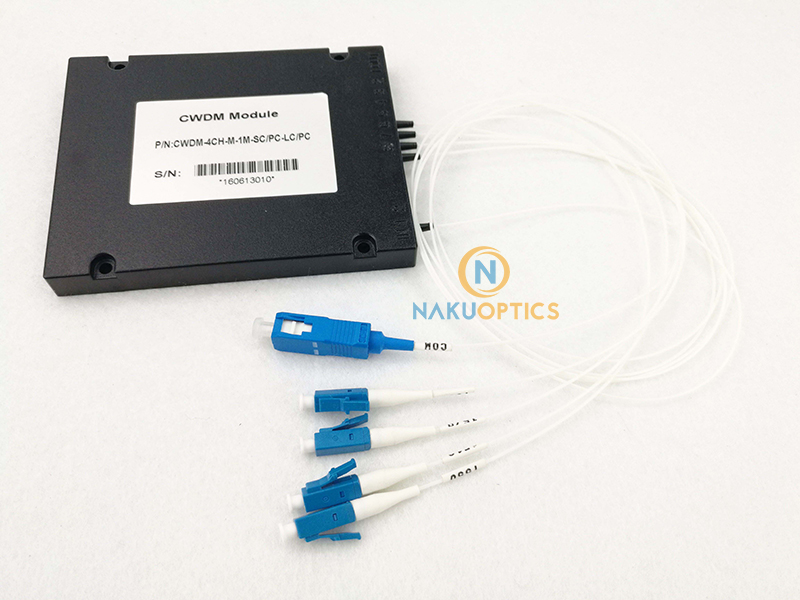

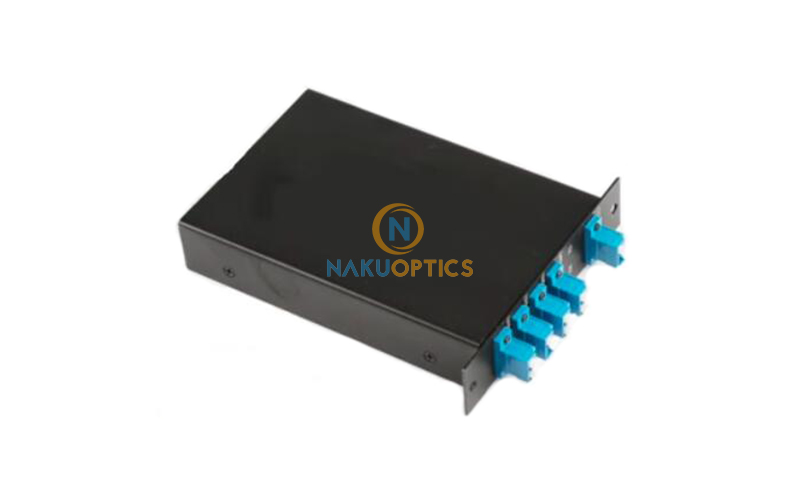

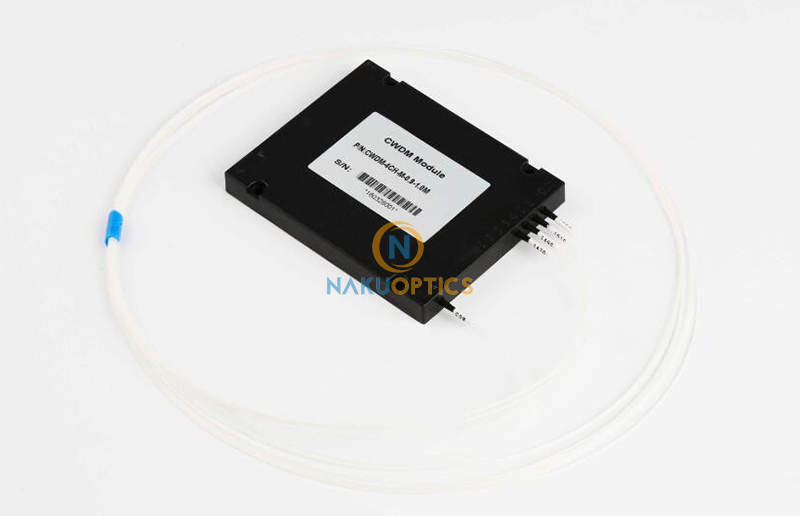

4 Channels Coarse Wavelength Division Multiplexer 1470~1530nm CWDM Module
Product ID: 1807
$73.00
4 Channels Coarse Wavelength Division Multiplexer 1470~1530nm CWDM Module
[Specifications]
| Prameter | Unit | 4 Channel | 8 Channel | |||
| MUX | DEMUX | MUX | DEMUX | |||
| Operating Wavelength | nm | 1260~1620, 1470~1610 | ||||
| Center Wavelength Accuracy | nm | ±0.5 | ||||
| Channel Spacing | nm | 20 | ||||
| Channel Pass Band(@-0.5dB band width) Min. | nm | ≥15 | ≥13 | |||
| Insertion Loss | dB | ≤2.0 | ≤3.0 | |||
| Channel Ripple | dB | ≤0.6 | ≤1.0 | |||
| Isolation | Adjaccent | dB | N/A | >30 | N/A | >30 |
| Non-Adjaccent | dB | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity | dB/℃ | <0.003 | ||||
| Wavelength Temperature Shifting | nm/℃ | <0.002 | ||||
| Polarization Dependent Loss | dB | <0.1 | ||||
| Polarization Mode Dispersion | ps | <0.1 | ||||
| Dierctivity | dB | >50 | ||||
| Return Loss | dB | >45 | ||||
| Max Power Handling | mW | 500 | ||||
| Operating Temperature | ℃ | -20 ~ +70 | ||||
| Storage Temperature | ℃ | -40 ~ +85 | ||||
| Package Dimension | mm | 100*80*10(L*W*H) | ||||
Ordering Information
| CWDM | Channel | Configuration | 1st Channel | Fiber Type | Fiber Length | Connector |
| CWDM | 4=4 channel 8=8 channel 41=4+1 channel 81=8+1 channel |
M=Mux D=DeMux |
47=1470nm 49=1490nm 51=1510nm … 59=1590nm 61=1610nm 31=1310nm(Upgrade) |
1=900um loose tube 2=2mm cable |
1=1 meter 2=2 meters |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
.jpg)
.jpg)
.jpg)
.jpg)
