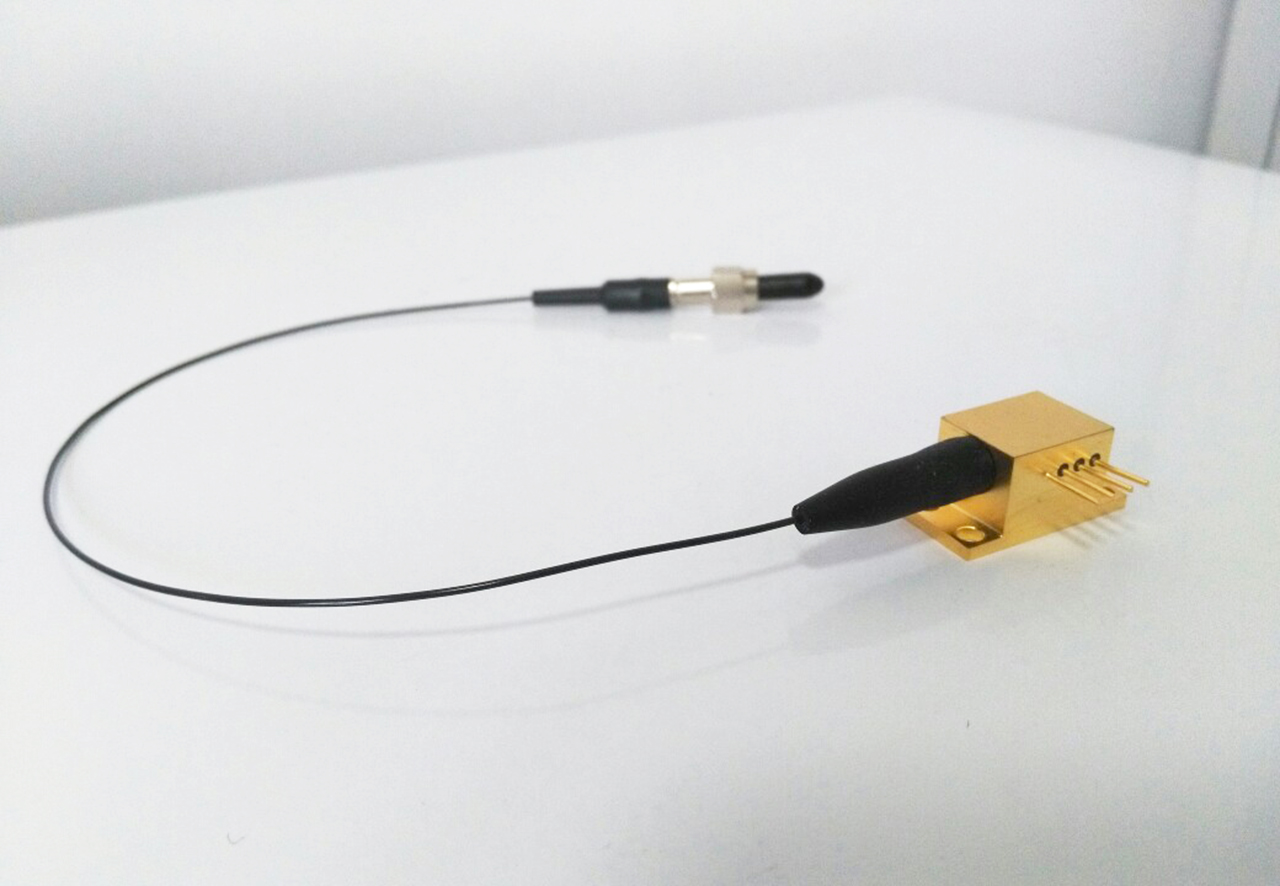

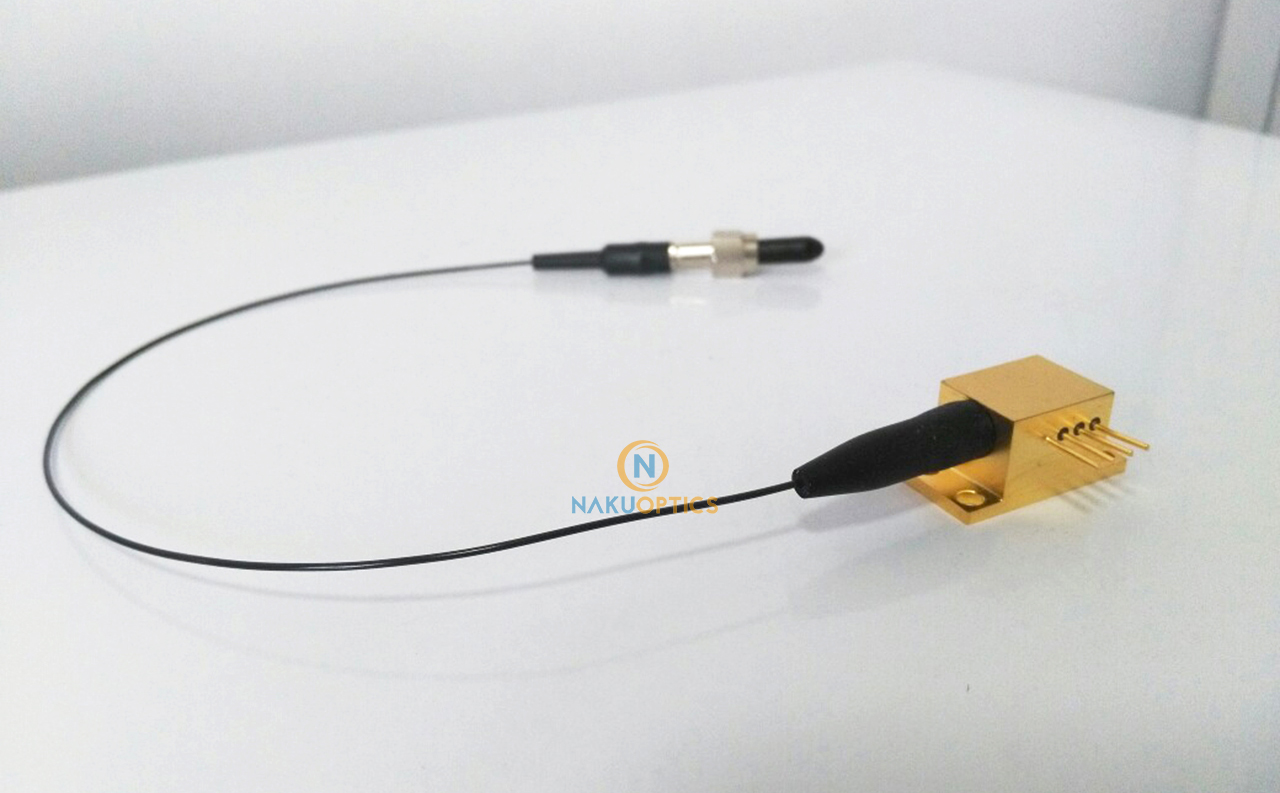

405nm 300mW Blue-violet Pigtail Laser Fiber Coupled Semiconductor Laser

405nm 300mW Blue-violet Pigtail Laser Fiber Coupled Semiconductor Laser

A pigtailed laser is a diode laser device where the generated light is coupled into an optical fiber. It is also known as a fiber-coupled diode laser. Pigtailed lasers can be single-mode or multi-mode and are used in various applications such as high-speed data and telecommunications systems, instrumentation, and optical instruments requiring a laser diode light source.

[Features]
1. Fiber core diameter 105μm, output power 0.3W.
2. 4-pin standard package, reliable performance and easy to use.
3. Fiber parameters can be customized.

[Specification]
Product Name: Pigtailed Laser
Wavelength: 405nm
Wavelength Range: 400nm~414nm
Outout Power: 300mW
Fiber Core Diameter: 105μm
Numerical Aperture: NA 0.22
Fiber Connector: FC/PC
Operating Current: ~300mA (Max 360mA)
Threshold Current: 140mA
Power Conversion Efficiency: ~15%
Differential Quantum Efficiency: ~1.5W/A
Operating Voltage: 4.5~5.5V
Operating Temperature: +10℃ ~ +30℃
Storage Temperature: -20℃ ~ +60℃
Lifetime: >10,000 hrs
