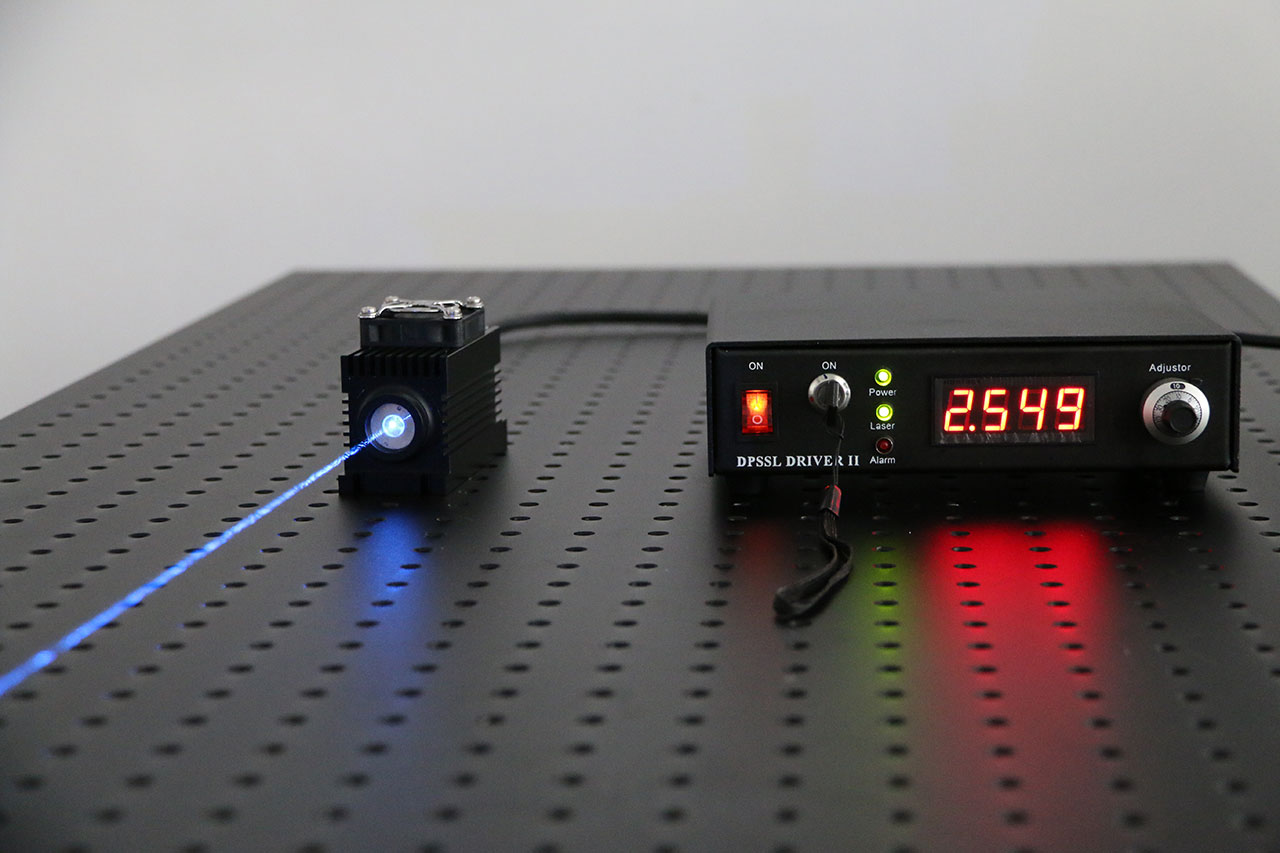

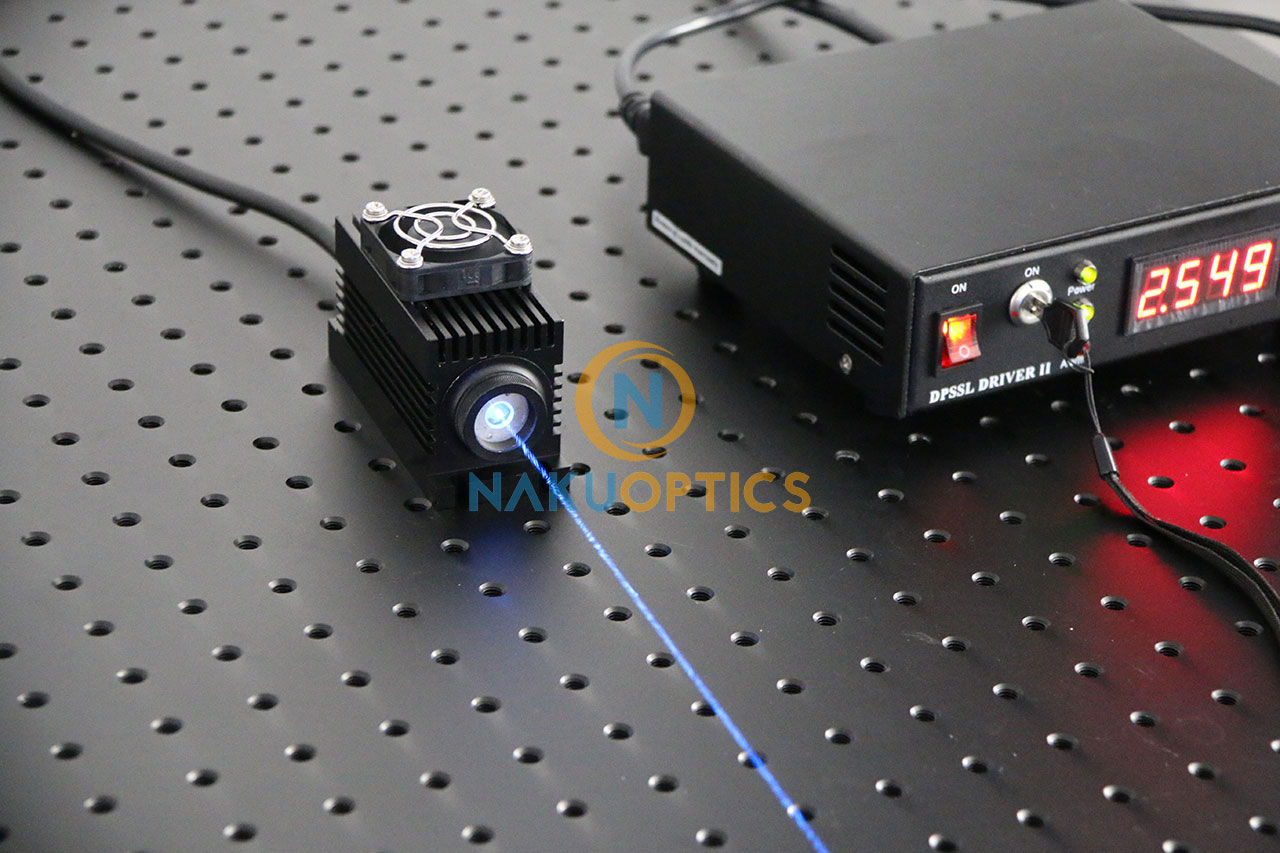

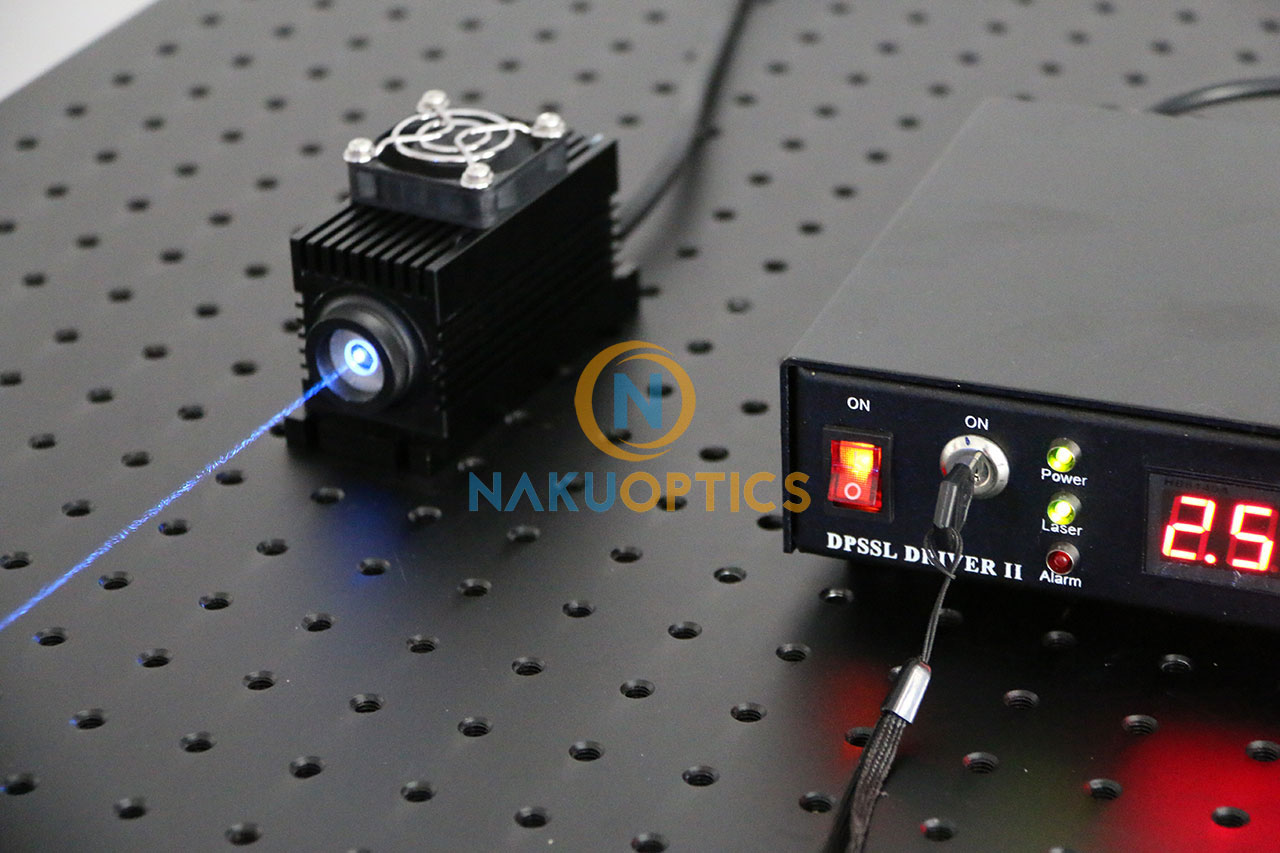

473nm Blue DPSS Laser 0~20mW output power adjustable CW & Modulation together

Product ID: 408


$930.00 $950.00

473nm Blue DPSS Laser 0~20mW output power adjustable CW & Modulation together

The 473nm laser is a laser designed for scientific research applications,
which can provide precise, efficient and reliable laser output.
Using high-quality materials and advanced manufacturing processes,
the laser has the advantages of long life and high reliability, providing stable and reliable output for your research.



[Specifications]
Product Name: 473nm DPSS Laser
Lead Time: 1~3 weeks
Output Wavelength: 473±2 nm
Output Power: Max 20mW
Spatial Mode: Near TEM00
Operating Mode: CW or Modulation
Beam Divergence(full angle): Near 0.5mrad
Beam Size: Near 2mm
Beam Quality(M²): <2
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Modulation: 0~30khz Analog or TTL
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
Laser Head dimension: Near 100(L)x40(W)x50(H) mm³ (fan adds 15mm height)
Power Supply: Adjustable power supply
Warranty: 1 Year

[Package Include]
1 x 473nm Laser head
1 x Laser Power supply
