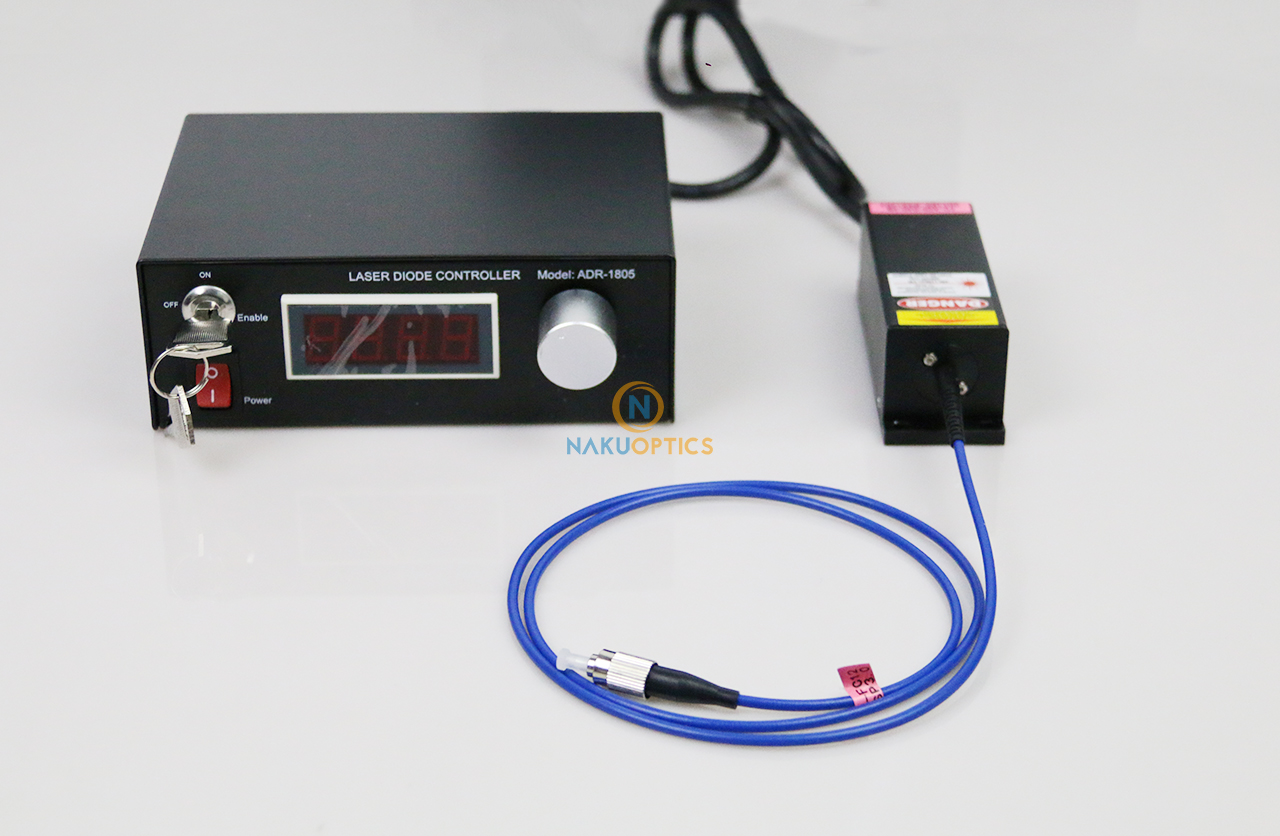

520nm PM Fiber Coupled Laser
520nm 1~40mW Adjustable Output Power Green Laser PM Fiber Output
Product ID: 629
$1,112.00
520nm 1~40mW Adjustable Output Power Green Laser PM Fiber Output
[Features]
Fiber is pluggable
M²≤1.2
Polarization ratio>70:1
TEC temperature control, air cooling
[Applications]
Fluorescence spectroscopy, photodetection, optical measurement, etc.
Note:
Lead Time: About 2~4 weeks.
[Specification]
| Parameter*1 | Working Conditions | Symbol | Min. Value | Typical Value | Max. Value | Unit |
| Optical Parameters | ||||||
| Output Power(CW) | @PO | PO | 40 | mW | ||
| Power Stability (RMS) | 2hrs | Ps | 3 | % | ||
| Central Wavelength | @PO | λc | 515 | 520 | 525 | nm |
| Spectral Linewidth (FWHM) | @PO | Δλ | 1 | 2 | nm | |
| Preheat Time | @PO | Tw | 5 | min | ||
| Noise | RMS(10Hz-100MHz) | N | 1 | % | ||
| Polarization Ratio | @PO | 70:1 | ||||
| Optical Fiber Parameter Index*² | ||||||
| Fiber Specifications | PM Fiber | |||||
| Fiber Length | L | 1.0 | m | |||
| Fiber Numerical Aperture | NA | 0.12 | ||||
| Fiber Interface | FC-PC/FC-APC | |||||
| Electrical Parameter Index | ||||||
| Operating Voltage | @PO | Vin | 90 | 220 | 245 | V |
| TTL Modulating Frequency | 100 | KHz | ||||
| Electrical Parameter Index | ||||||
| Service Life*³ | @PO/room temperature | MTTF | 10,000 | Hrs | ||
| Operating Temperature | Tstg | 0 | 40 | ℃ | ||
| Storage Temperature | Topr | -20 | 65 | ℃ | ||
| Note | *1: Test data at 25°C operating temperature; *²: Fiber length and fiber interface can be customized; *³: The service life refers to the service life of the laser diode. |
|||||
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
