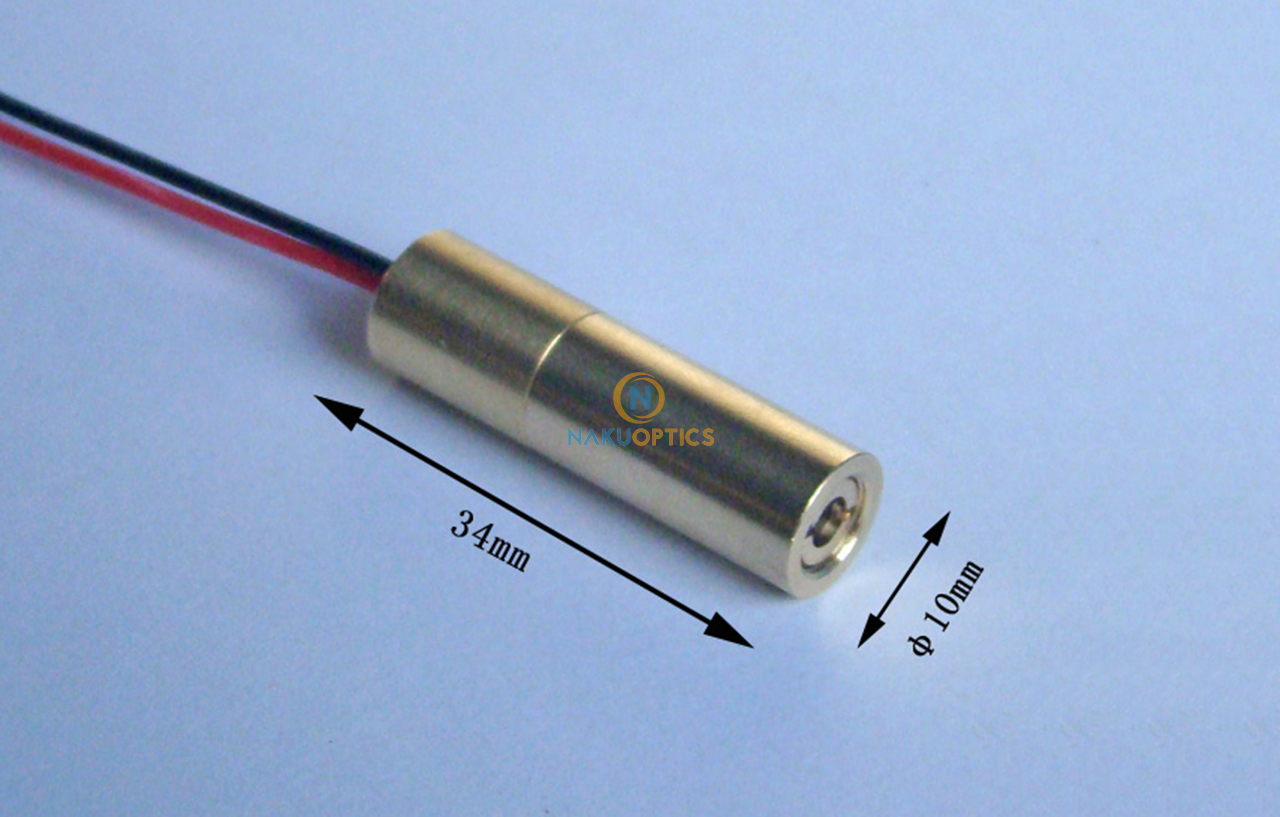

532nm 10~50mW Laser Diode Module Dot Green Laser Positioner Φ10x34mm

532nm 10~50mW Laser Diode Module Dot Green Laser Positioner Φ10x34mm

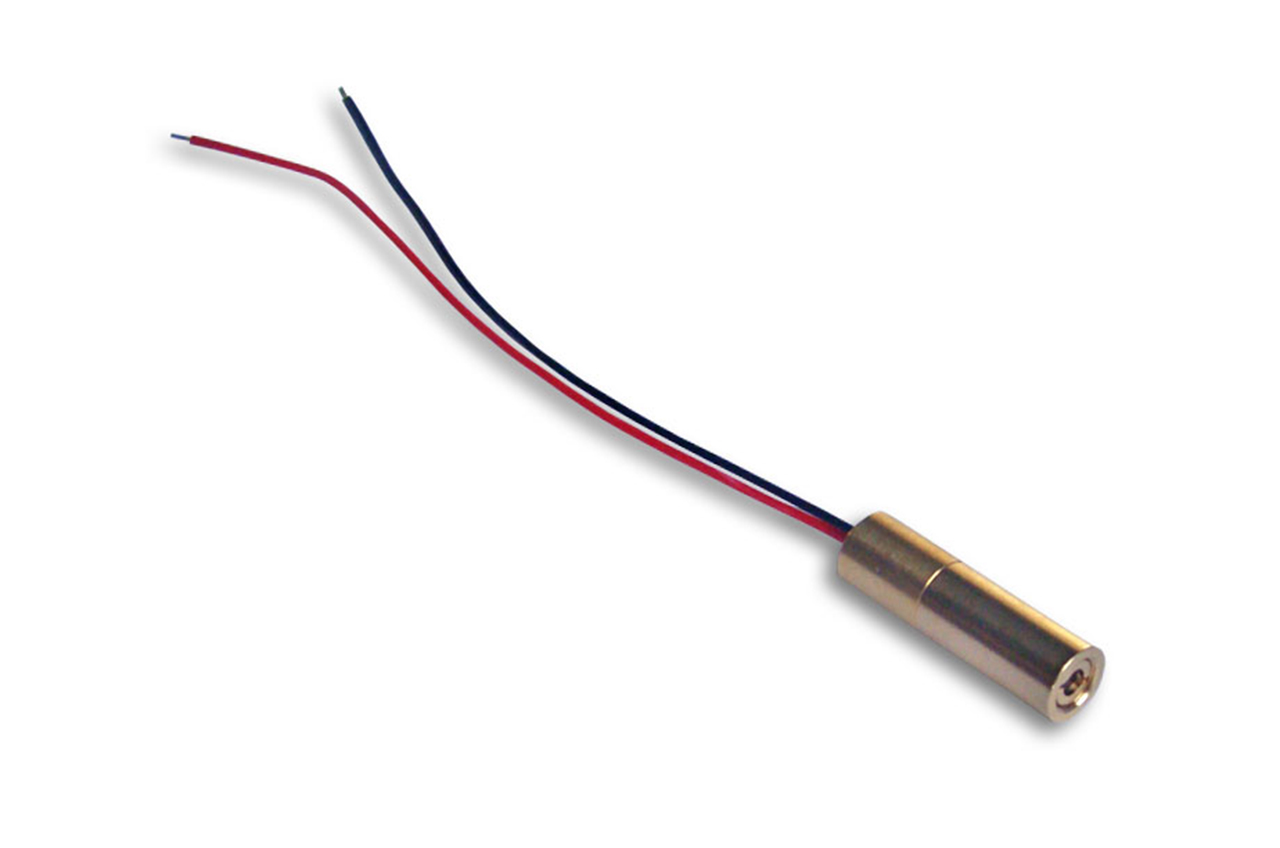

The laser module is a green diode-pumped solid-state laser module that emits green light at a wavelength of 532nm. They have different output power levels, 2.8-3.5V DC operating voltage and adjustable focus. It is used for industrial laser positioning, aiming device, laser flashlight, laser positioning, range finder, medical equipment, teaching, electronic production enthusiasts, etc.

[Specification]
Product Name: Laser module
Wavelength: 532nm±5nm
Output Power: 10mW/20mW/30mW/50mW (Choose)
Laser Shape: Dot
Spot Size: Minimum spot diameter ≤ Φ1.0mm (short-range fixed-point focusing required), light spot at 10m <Φ15mm
Material: Copper

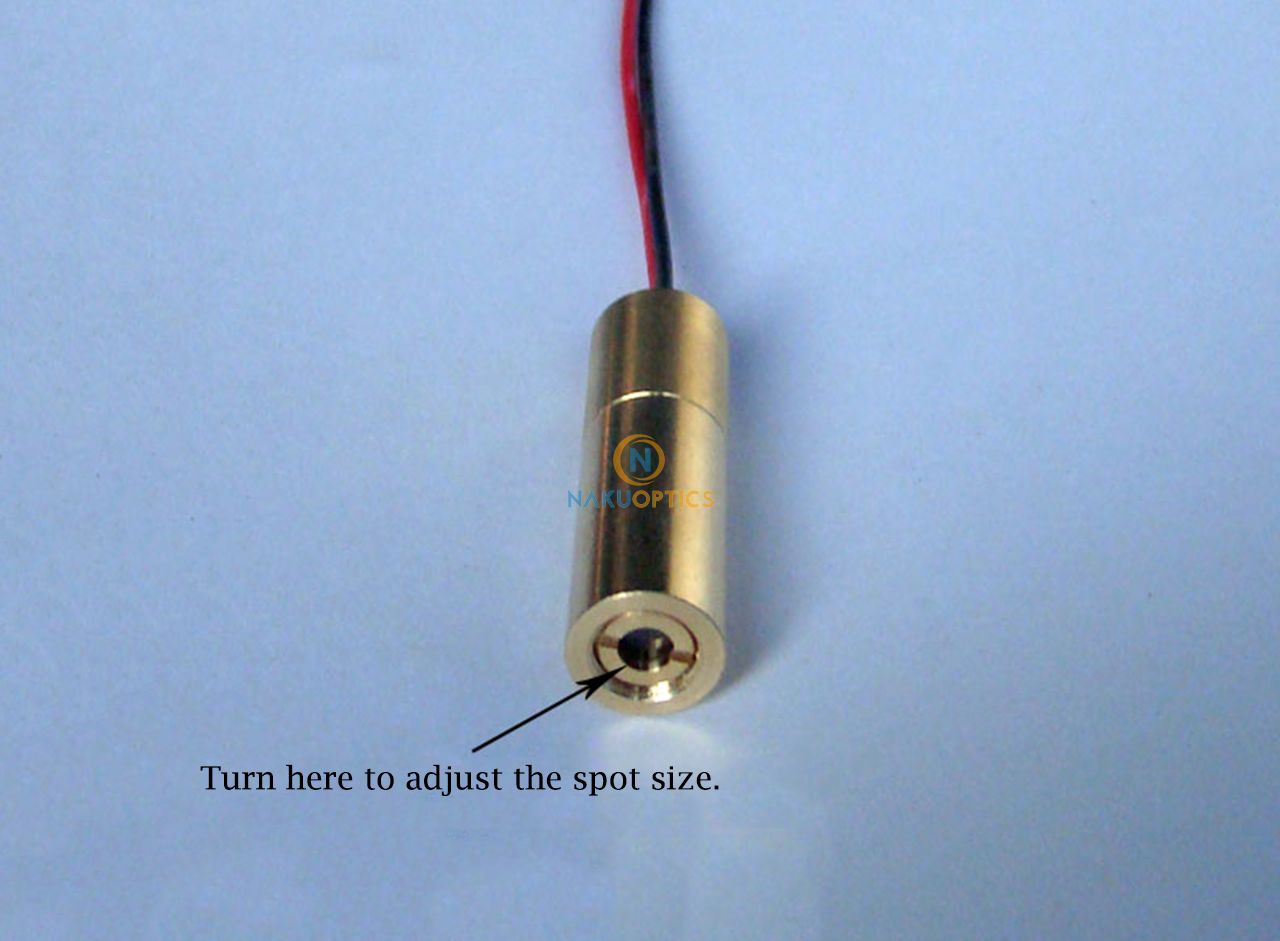

Focus Mode: Adjustable focus
Circuit Control: ACC circuit
Operating Voltage: DC 2.8-3.5V
Operating Current: I <350mA
Operating Temperature: +15°C~+35°C
Storage Temperature: -10°C~+60°C

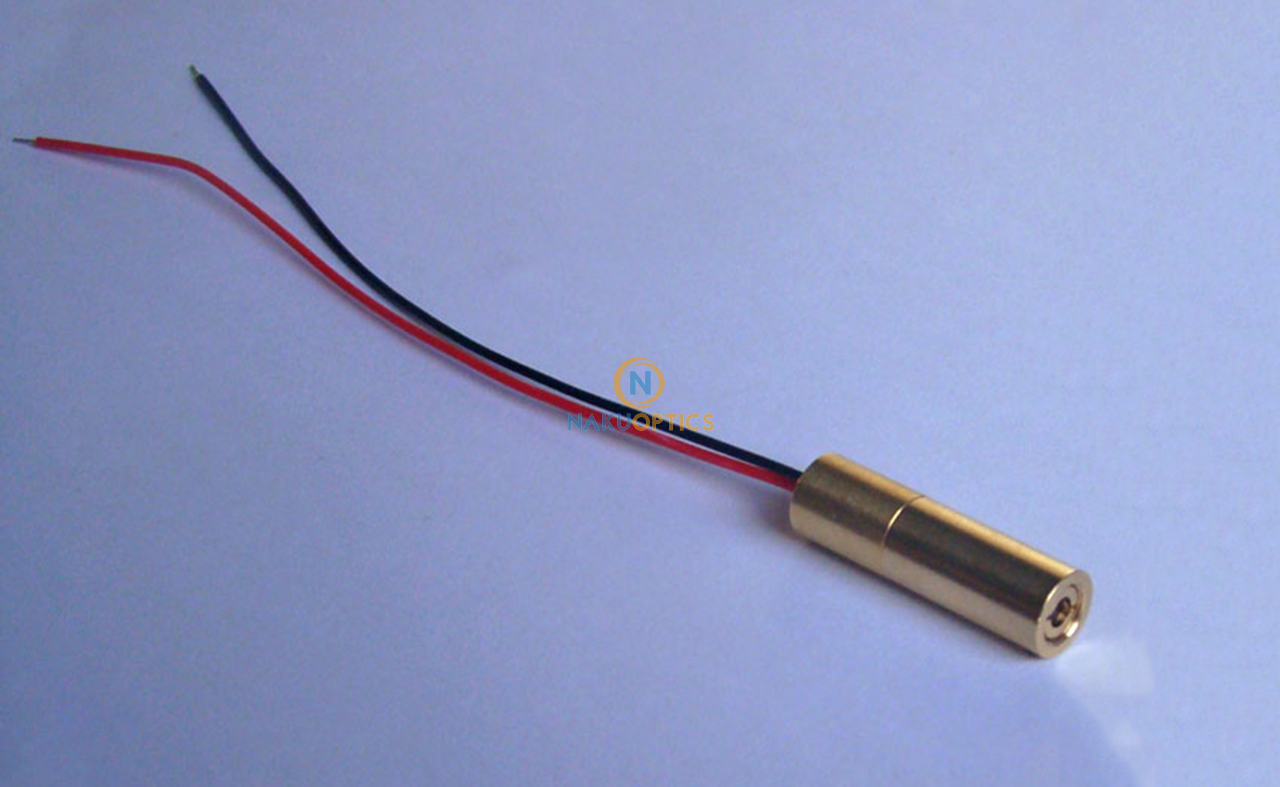

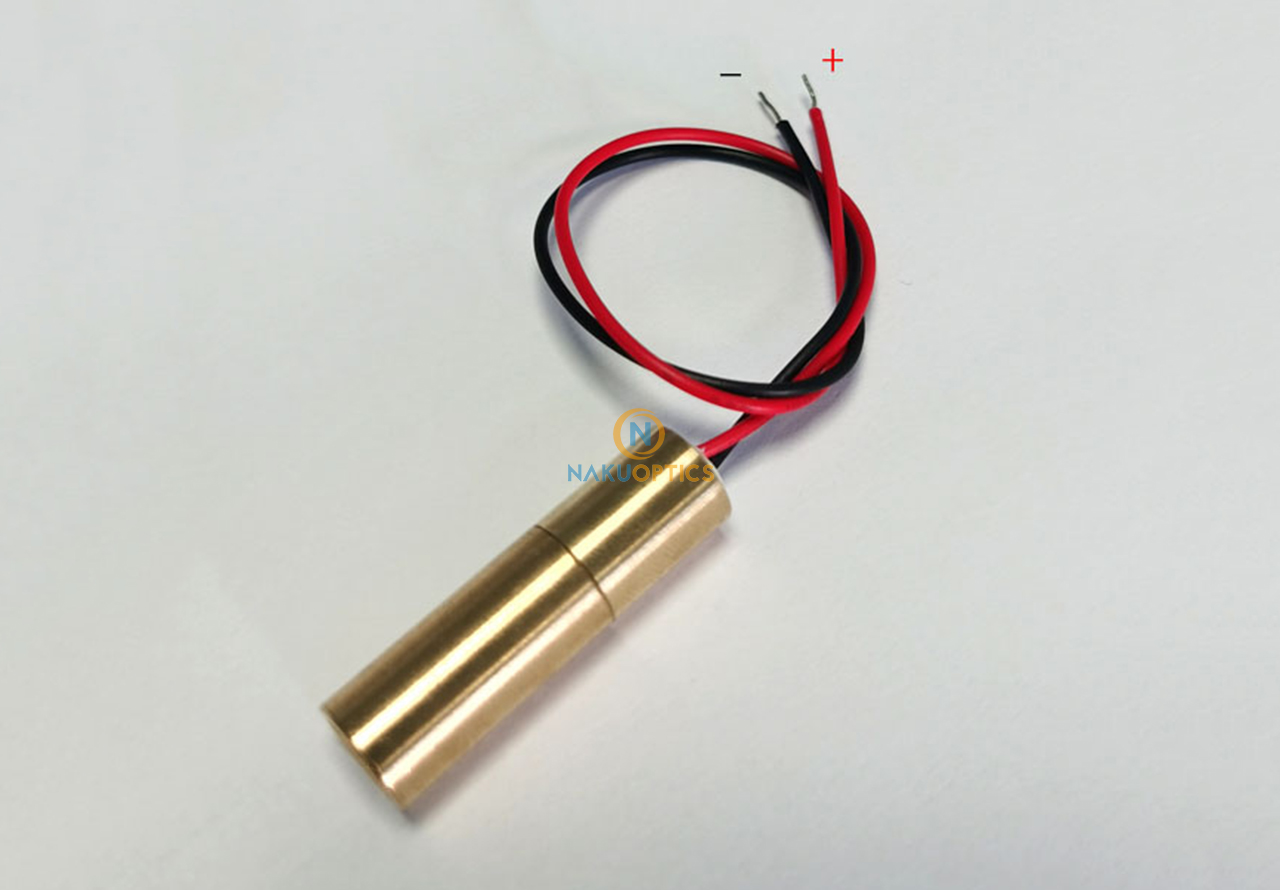

Tail Wire: 150mm length red-black lines (if you add the power adapter together, it is equipped with a 1 meter DC female plug cable.)

[Package Include]
1 x Laser module

Related products:

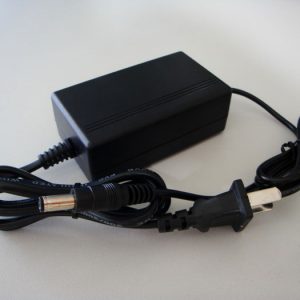

Laser power supply (Defult Not Include, If you need, please click here)

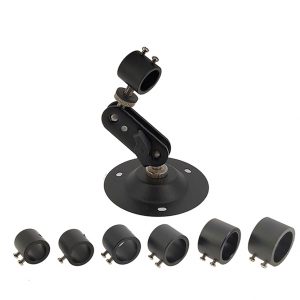

Laser module holder (Defult Not Include, If you need, please click here)
