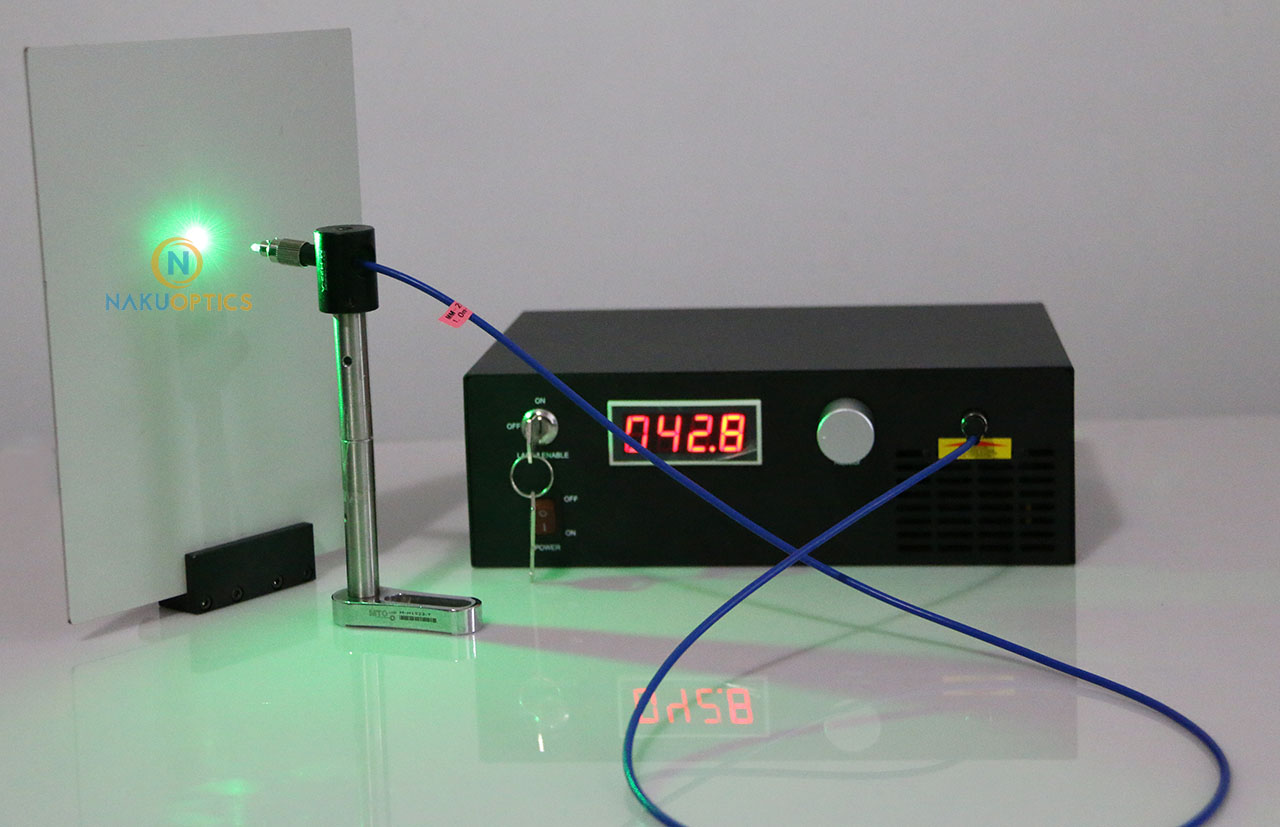

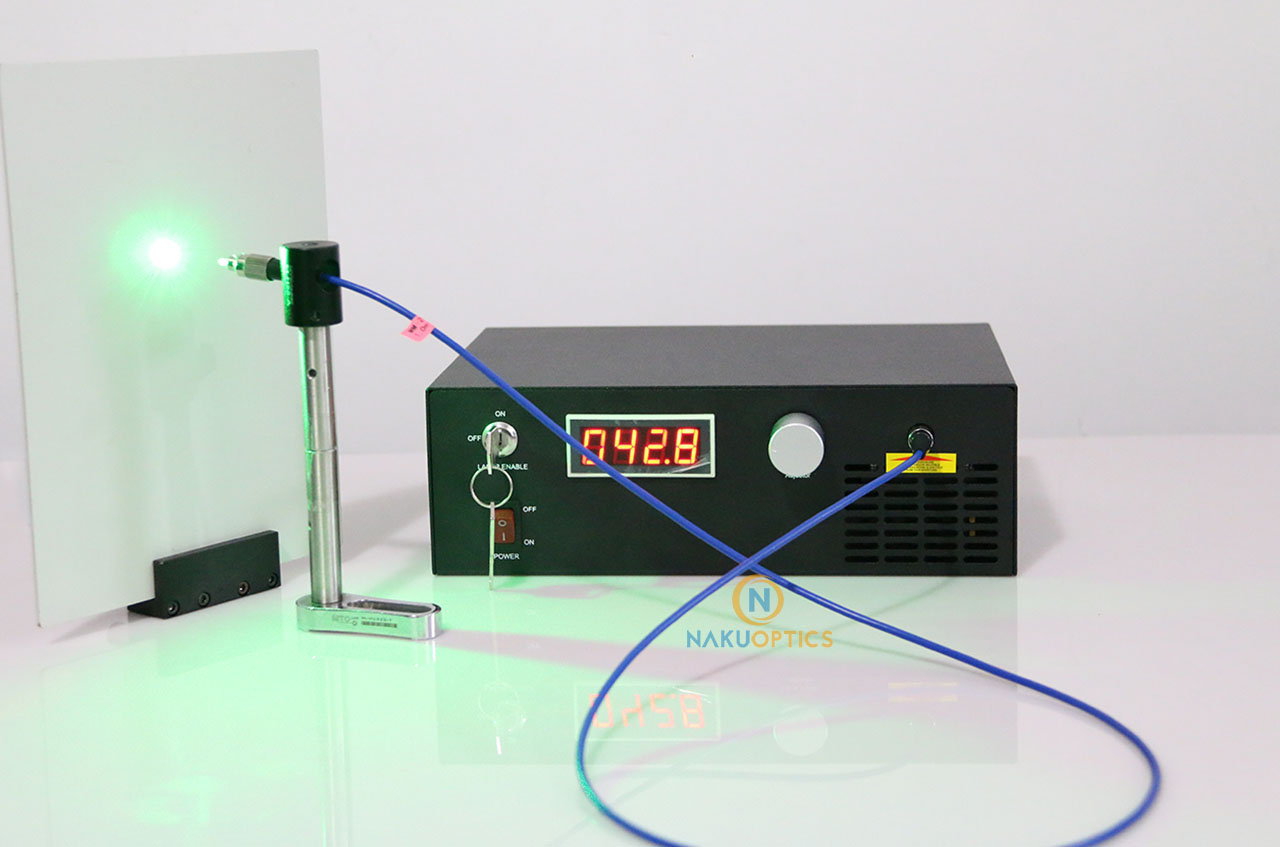

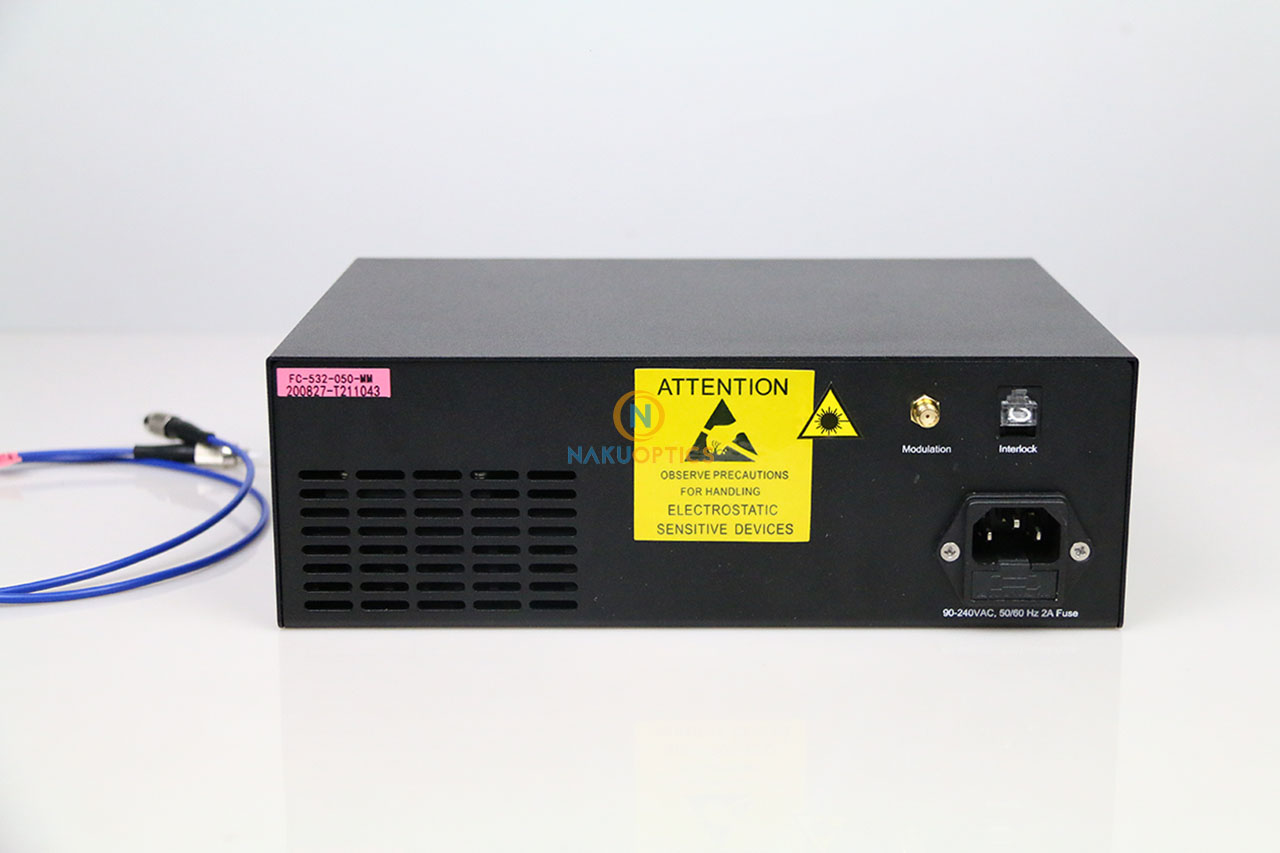

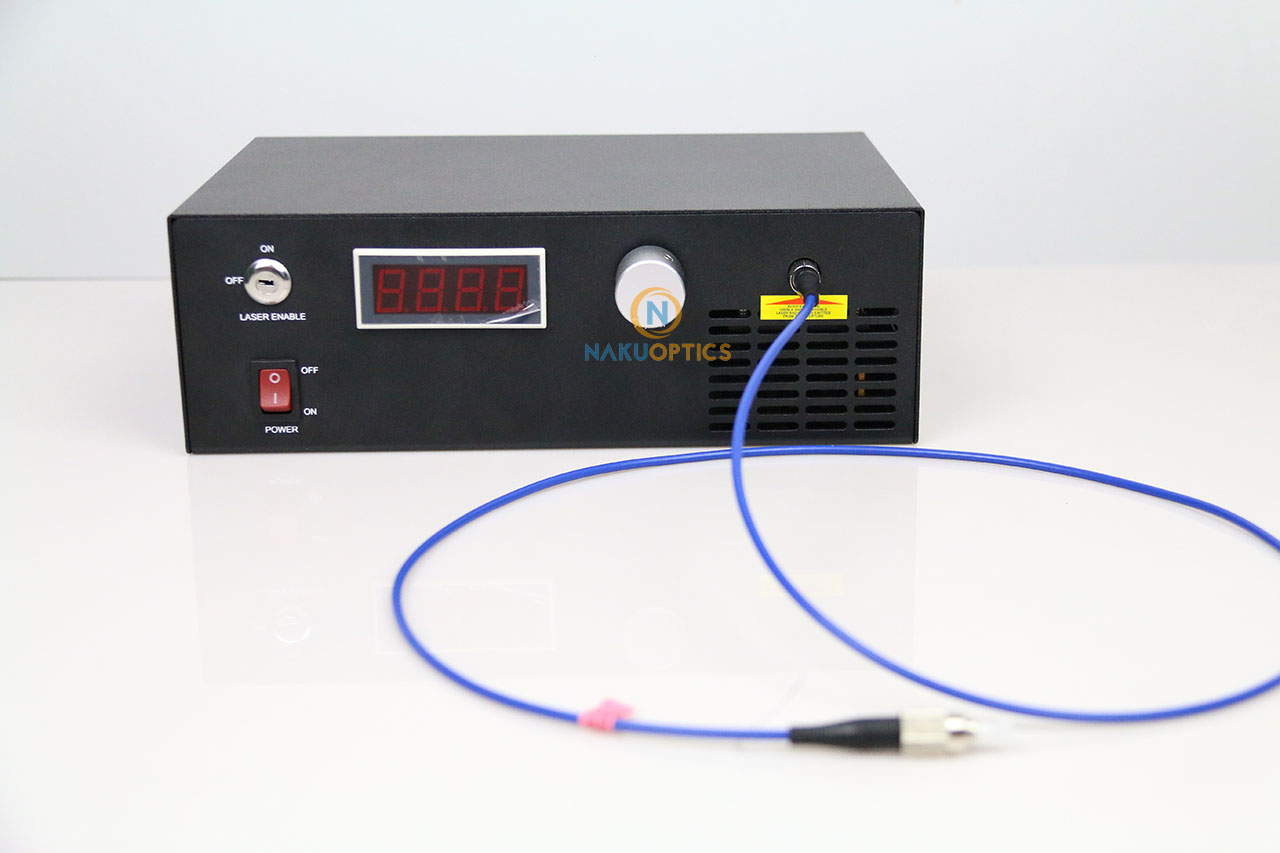

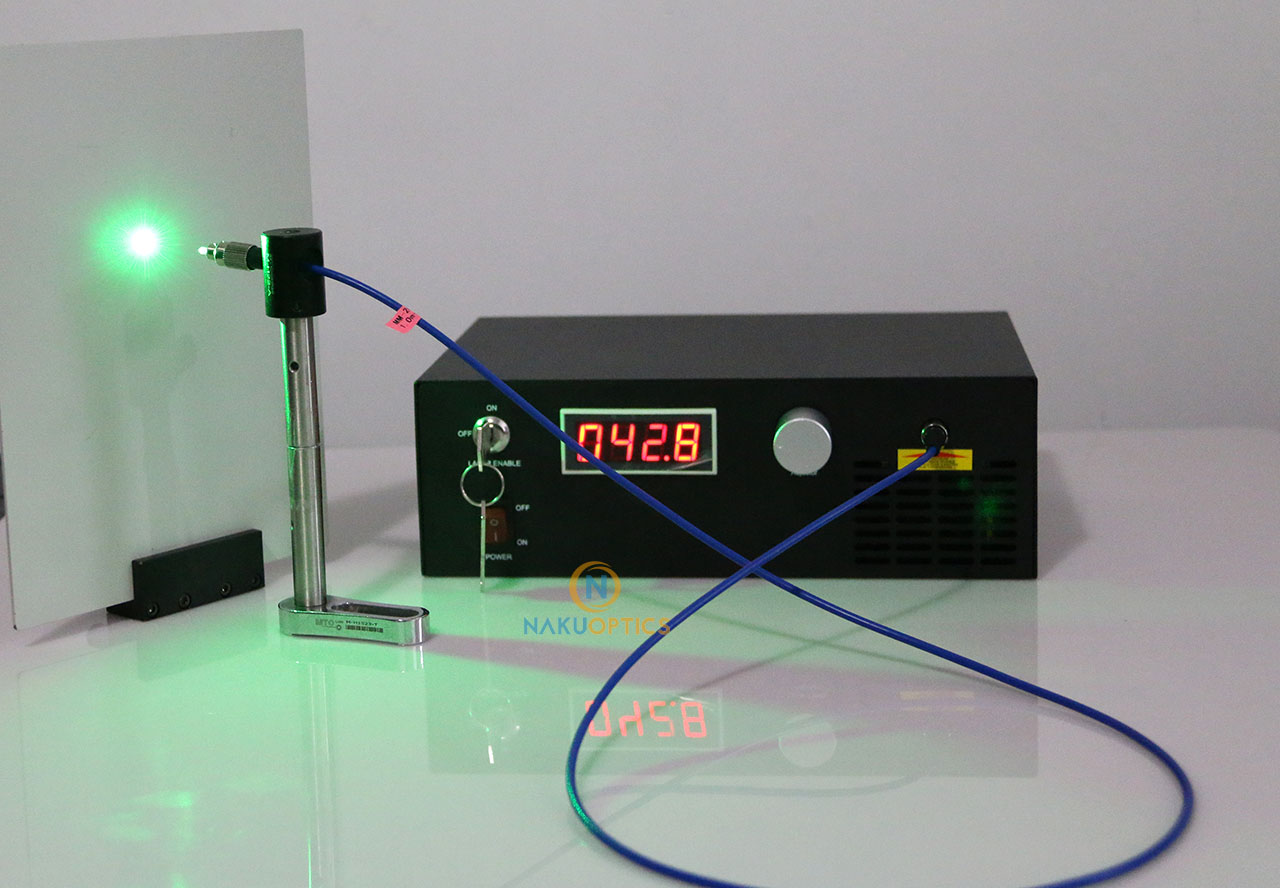

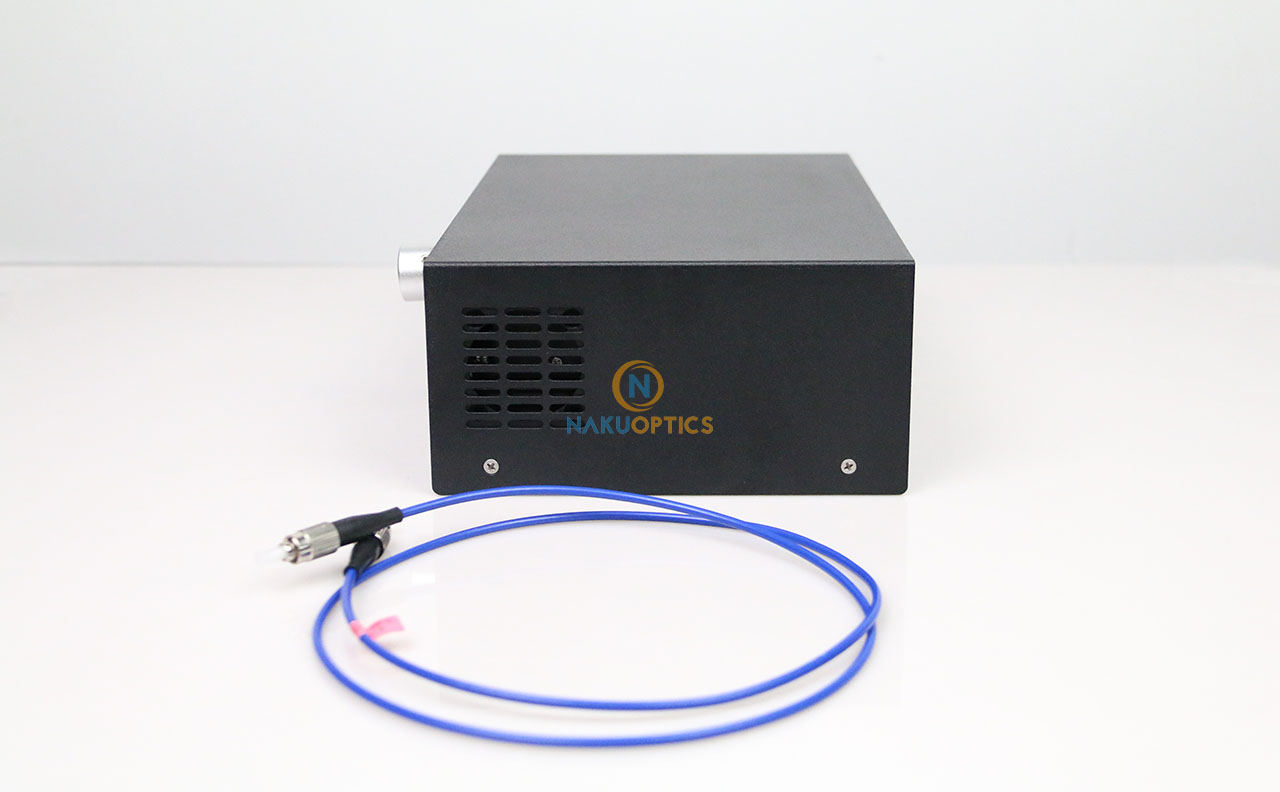

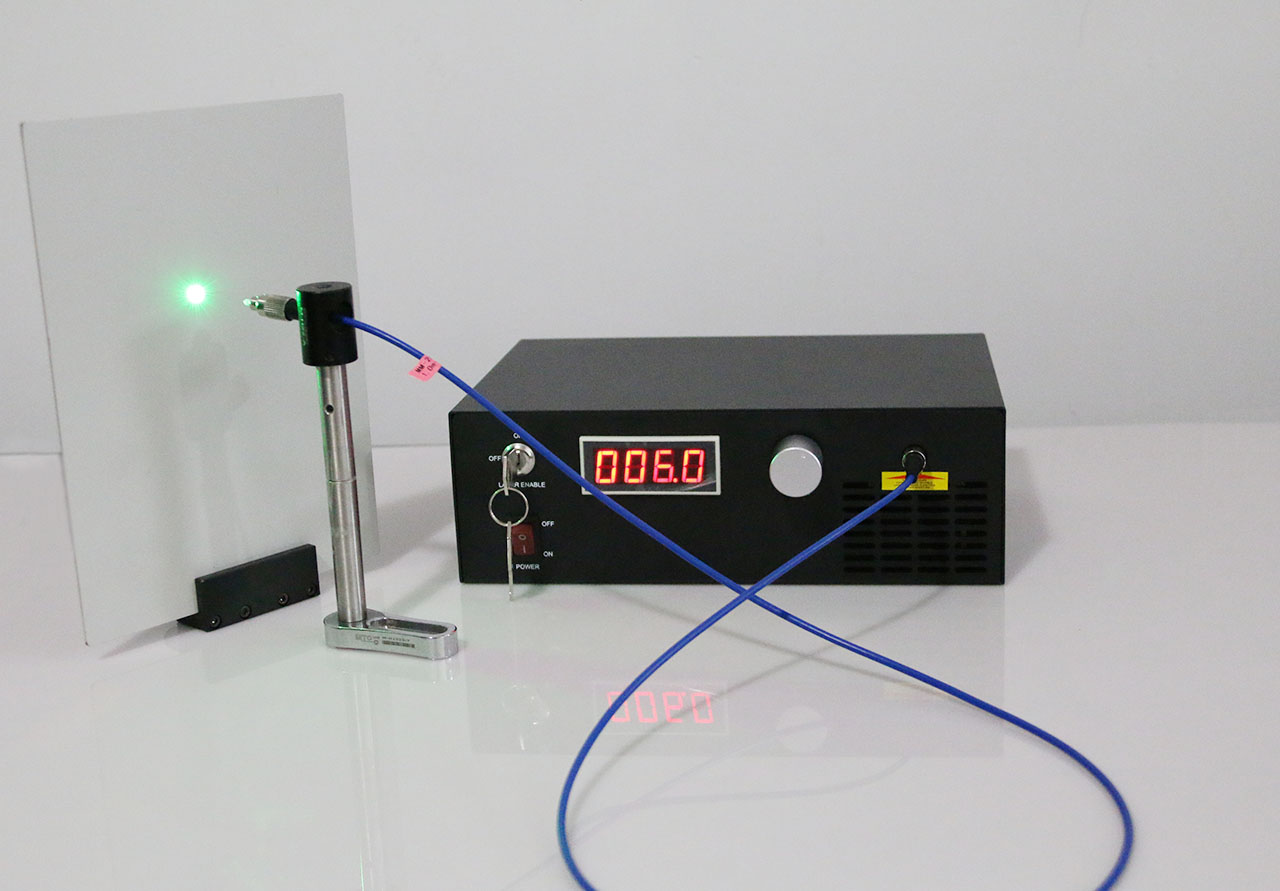

532nm 100mW 0.3nm Linewidth All-in-one Fiber Laser Source

532nm 100mW 0.3nm Linewidth All-in-one Fiber Laser Source

All-in-One series lasers integrate the laser head and power supply, and output through optical fiber. It is a fiber-coupled laser that can be used for a variety of applications such as material processing, medical treatment, and scientific research1.

[Features]
1. All-in-one integrated machine: laser and power together, not separated.
2. Customizable software control.

[Specifications]
Product Name: 532nm Fiber Coupled Laser
Lead Time: 2~4 weeks
Wavelength: 532±1 nm
Output Power: 100mW (@ Fiber output side, and 0~max power adjustable)
Spectral Linewidth：<0.3nm
Fiber Core Diameter: 200μm / 400μm (Choose)
Fiber Interface: FC/PC, SMA905 (Choose)
Control Mode: Button / Button+software (Choose)
Fiber Length: 1m
Fiber Numerical Aperture: 0.22NA
Operating Temperature: 0°C-40°C
Storage Temperature: -40°C-85°C
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Laser Head Dimension: Near 268(L)x160(W)x82(H)mm
Power Supply: Adjustable Power Supply
Modulation: 0~10KHz TTL
Warranty: 1 Year

[Packing List]
1 x All-in-one laser
1 x Optical fiber
1 x Test data report
1 x Operation manual
