Name: 532nm Passively Q-Switched Pulsed Laser With Adjustable Repetition Frequency
SKU: P583
Availability: InStock

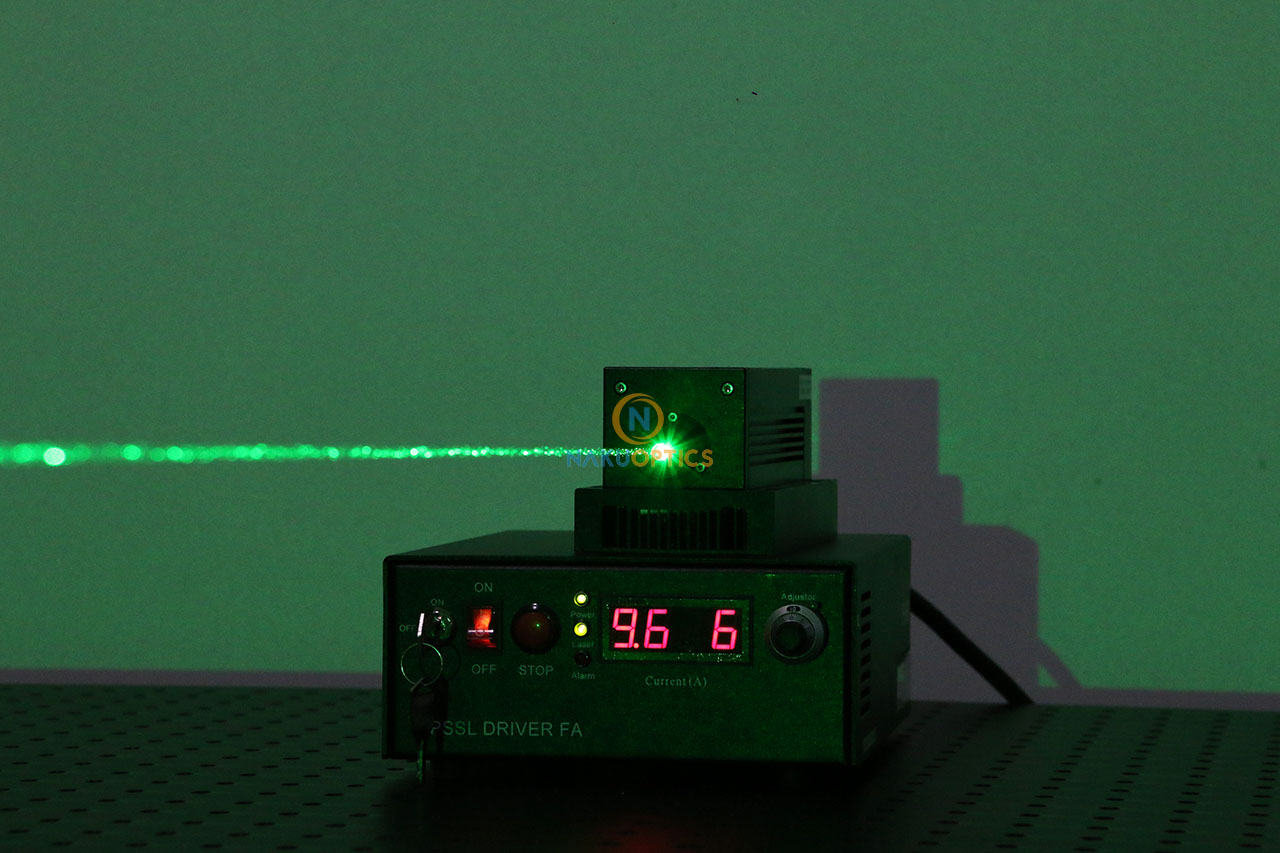

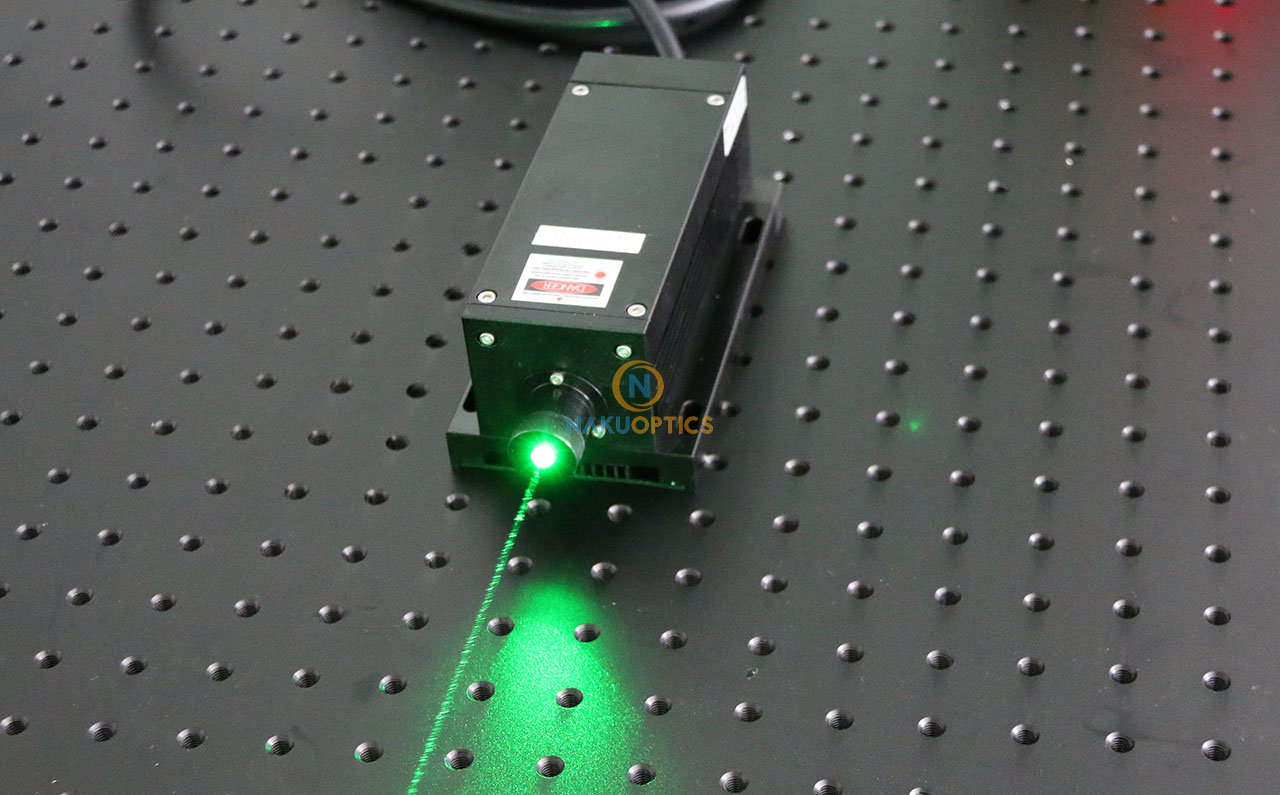

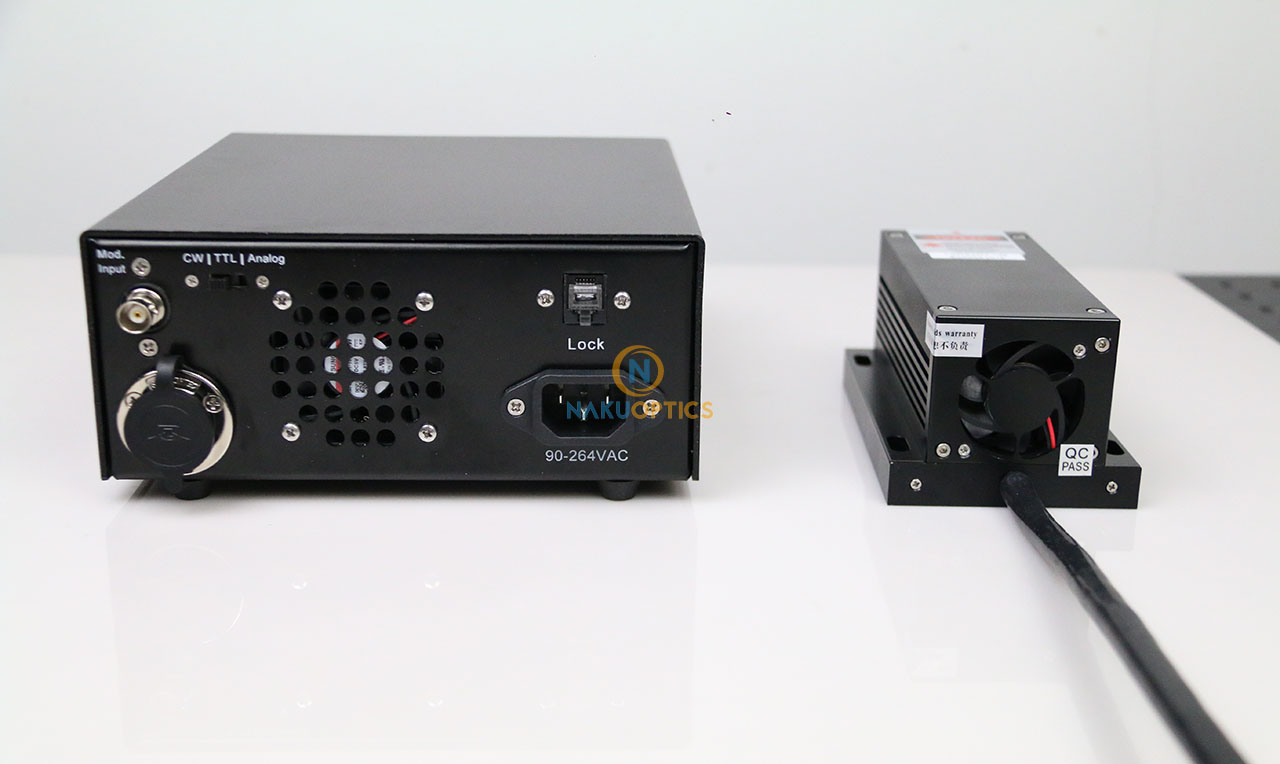

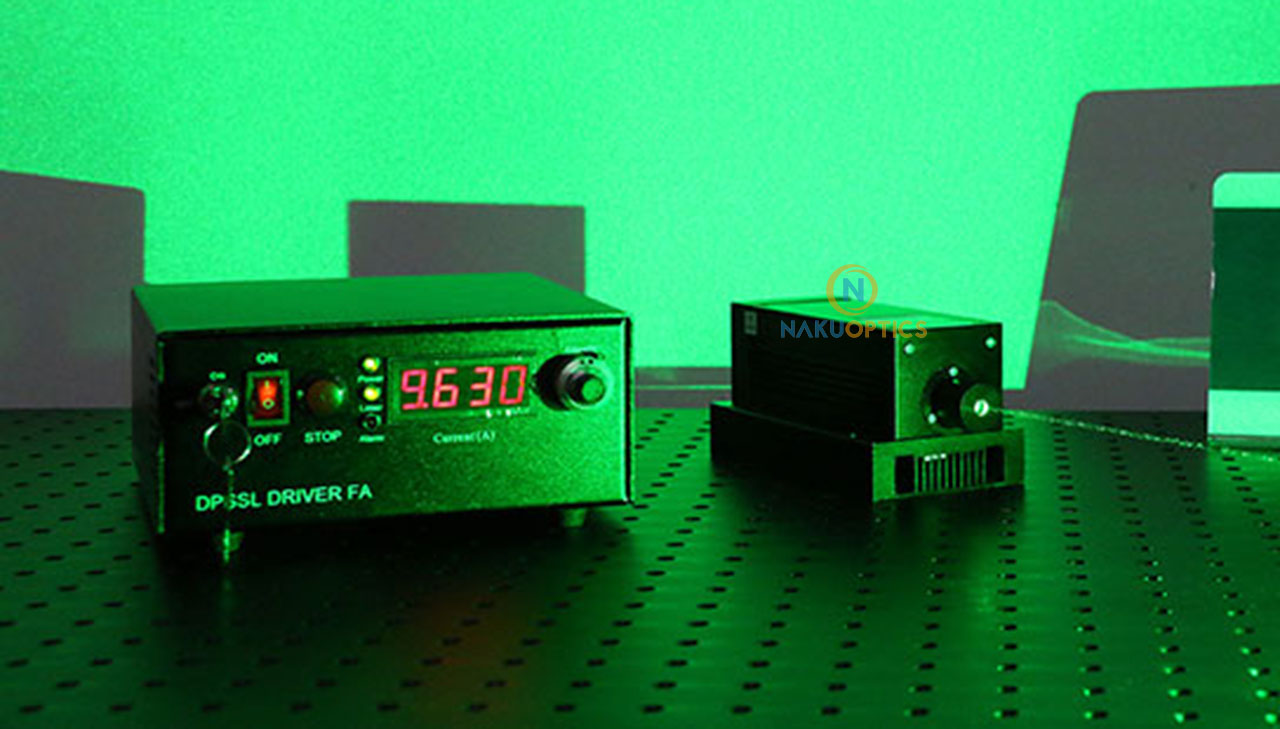

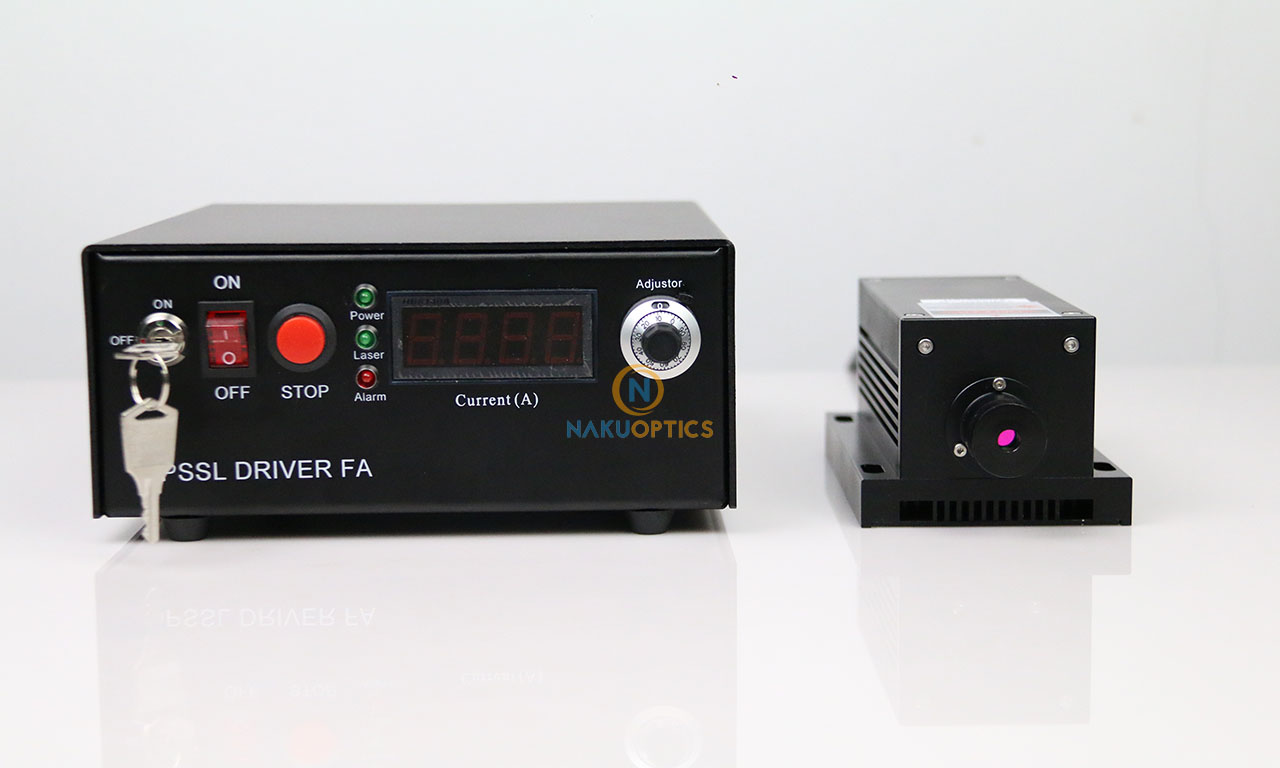

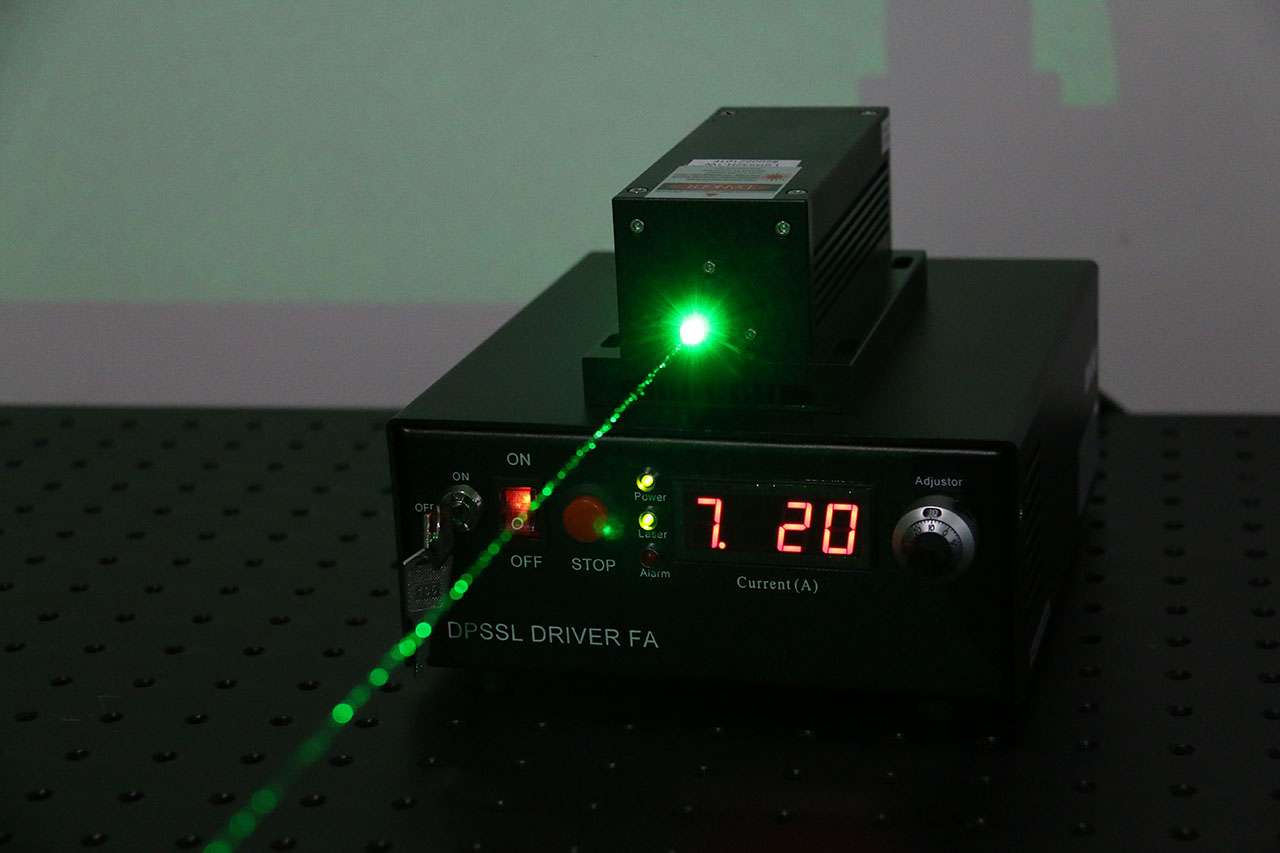

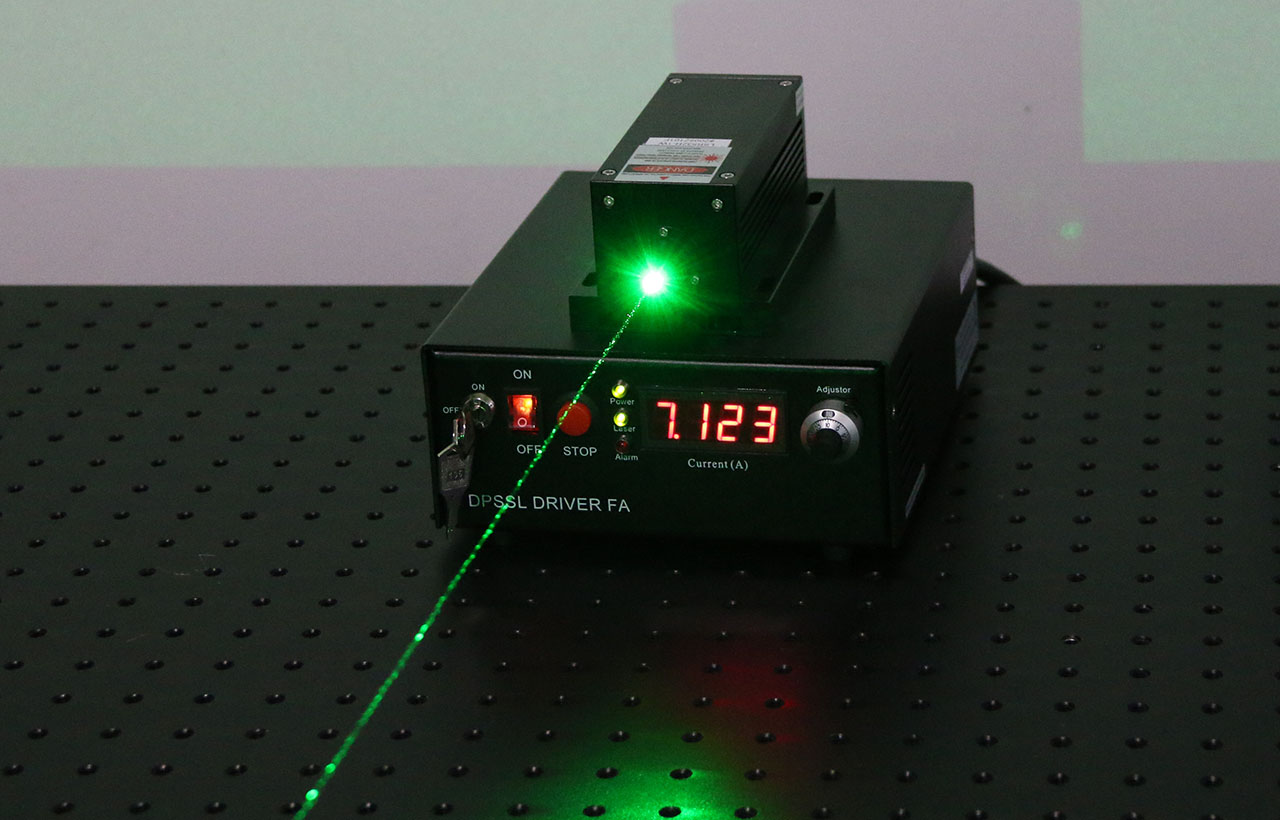

532nm Passively Q-Switched Pulsed Laser With Adjustable Repetition Frequency

Passively Q-switched lasers are a type of solid-state laser that use a saturable absorber to generate short pulses of light. They are known for their high peak power and short pulse duration, making them ideal for applications such as laser marking, micromachining, and Raman spectroscopy. One example of a passively Q-switched laser is the 532 series diode pumped solid state (DPSS) Q-switched laser which is ideal for applications that require a wavelength of 532nm and single pulse energy levels up to 20uJ.

[Features]
1. Passively Q-switched
2. Adjustable repetition frequency

[Specification]

Model	Model 01-532HQ	Model 02-532HXQ	Model 03-532HYQ
Wavelength	532nm	532nm	532nm
Spatial Mode	TEM00	TEM00	TEM00
Average Output Power	30~100mW	near 150mW	near 200mW
Single Pulse Energy	3~10uJ (random)	default near 10uJ (1~20uJ customizable)	default near 15uJ~20uJ
Pulse Width	10~50ns (random)	default near 15ns (10~20ns customizable)	default near 20ns (15~30ns customizable)
Peak Power	60W~1KW	300W~2KW	300W~2.6KW
Repeat Rate	near 10KHz	default near 15KHz (1~50KHz customizable)	default near 10Khz (1Hz~50KHz customizable)
Beam Spot Shape	Circular, aspect ratio<1.1:1	Circular, aspect ratio<1.1:1	Circular, aspect ratio<1.1:1
Pointing Stability	<0.05 mrad	<0.05 mrad	<0.05 mrad
Beam Diameter（1/e2）	<2 mm	<2 mm	<1.5 mm
Beam Divergence	<1 mrad	<1 mrad	<1.5 mrad
Power Stability	<±3% per 2 hrs	<±3% per 2 hrs	<±3% per 2 hrs
Beam Height	29mm	29mm	29mm
Temperature Stabilizing	TEC	TEC	TEC
Warm Up Time	<5 minutes	<5 minutes	<5 minutes
Beam Quality（M2）	<2	<2	<2
Optimum Operating Temperature	20~30℃	20~30℃	20~30℃
Storage Temperature	10~50℃	10~50℃	10~50℃
MTTF	10,000 hrs	10,000 hrs	10,000 hrs
Laser Head Size	155(L)x77(W)x60(H)mm3	167(L)x77(W)x70(H)mm3	155(L)x77(W)x60(H)mm3
Power Supply	178(W)x197(D)x84(H) mm3	178(W)x197(D)x84(H) mm3	178(W)x197(D)x84(H) mm3
Note	The average power of this model is 30~100mw, single pulse energy, pulse width and repetition frequency affect each other.	The average power of this type of Q-switched laser is about 150mw. The two parameters of single pulse energy and repetition frequency affect each other.	The average power of this model Q-switched laser is about 200mw. The two parameters of single pulse energy and repetition frequency affect each other.

[Main parameters explanation]
(1) Repeat rate
The max repeat rate is fixed.
1 ~ max repeat rate can be adjusted by Exteranl input signal.

(2) Single pulse energy
It can be customized according to your needs.
It is a fixed value after production is completed.

(3) Pulse width
It can be customized according to your needs.
It is a fixed value after production is completed.

(4)Average output power
Average output power = [Repeat rate]*[Single pulse energy]

e.g.
Repeat Rate: 1~10KHz
Single Pulse Energy: near 20uJ
Average output power = [Repeat rate]*[Single pulse energy] = 10*1000*20 = 200000uJ (200mW)

(5)Peak Power
Peak Power = [Single pulse energy]/[Pulse Width]

e.g.
Pulse Width: near 15ns
Single Pulse Energy: near 20uJ
Peak Power = [Single pulse energy]/[Pulse Width] = 20uJ/15ns = 20*10^(-6) / 15 * 10^(-9) = 20 / (15*0.001) = 1333W
