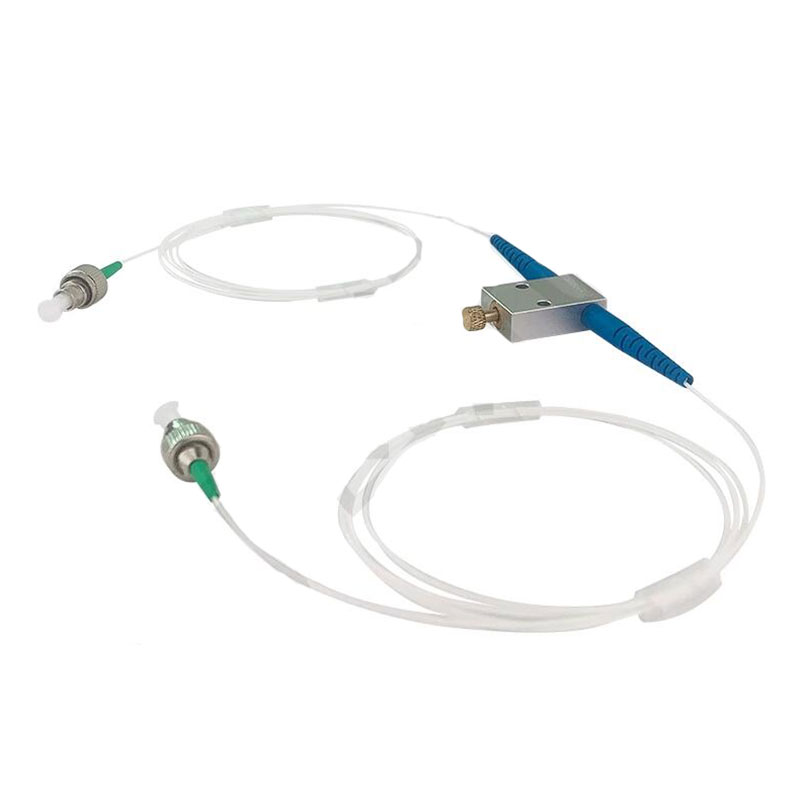

630nm In-line Mechanical Manually Adjustable Fiber Optic Attenuator Can be Customized 26x18x8mm

Product ID: 1408

$226.00

630nm In-line Mechanical Manually Adjustable Fiber Optic Attenuator Can be Customized 26x18x8mm

[Features]
Low insertion loss
High return loss
High stability and reliability

[Applications]
Fiber sensor
CATV
Fiber communication
Fiber transmission

[Specifications]

Paramter Unit Value
Center Wavelength nm 630
Working Bandwidth nm ±20
Max. Additional Loss dB 1.5
Max. Attenuation dB 40
Polarization Dependent Loss dB 0.1
Return Loss dB 50
Withstand Power CW mW 100
Fiber Type 630-HP or others
Fiber length m 1 or others
Connector Type FC/APC or others
Max. Tensile Load N 5
Package Dimensions mm 26x18x8
Operating Temperature ℃ -5 ~ +70
Storage Temperature ℃ -40 ~ +85

The temperature measurement environment is 23℃.
If more connectors are added, the insertion loss will increase by 0.3dB, and the return loss will decrease by 5dB.

Package Dimensions

630nm fiber attenuator


Ordering Information

Working Wavelength Withstand Power Fiber Type Pigtail Length Tail Sleeve Type Connector Type
630=630nm
S=Specify		 00=300mW
S=Specify		 1=630-HP
S=Specify		 08=0.8m
10=1.0m
15=1.5m
S=Specify		 B=250um bare fiber
L=900um loose tube
S=Specify		 N=None
FP=FC/PC
FA=FC/APC
S=Specify



630nm fiber attenuator



630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

SKU: P1408 Category: Tag:
Weight 1.59 kg
