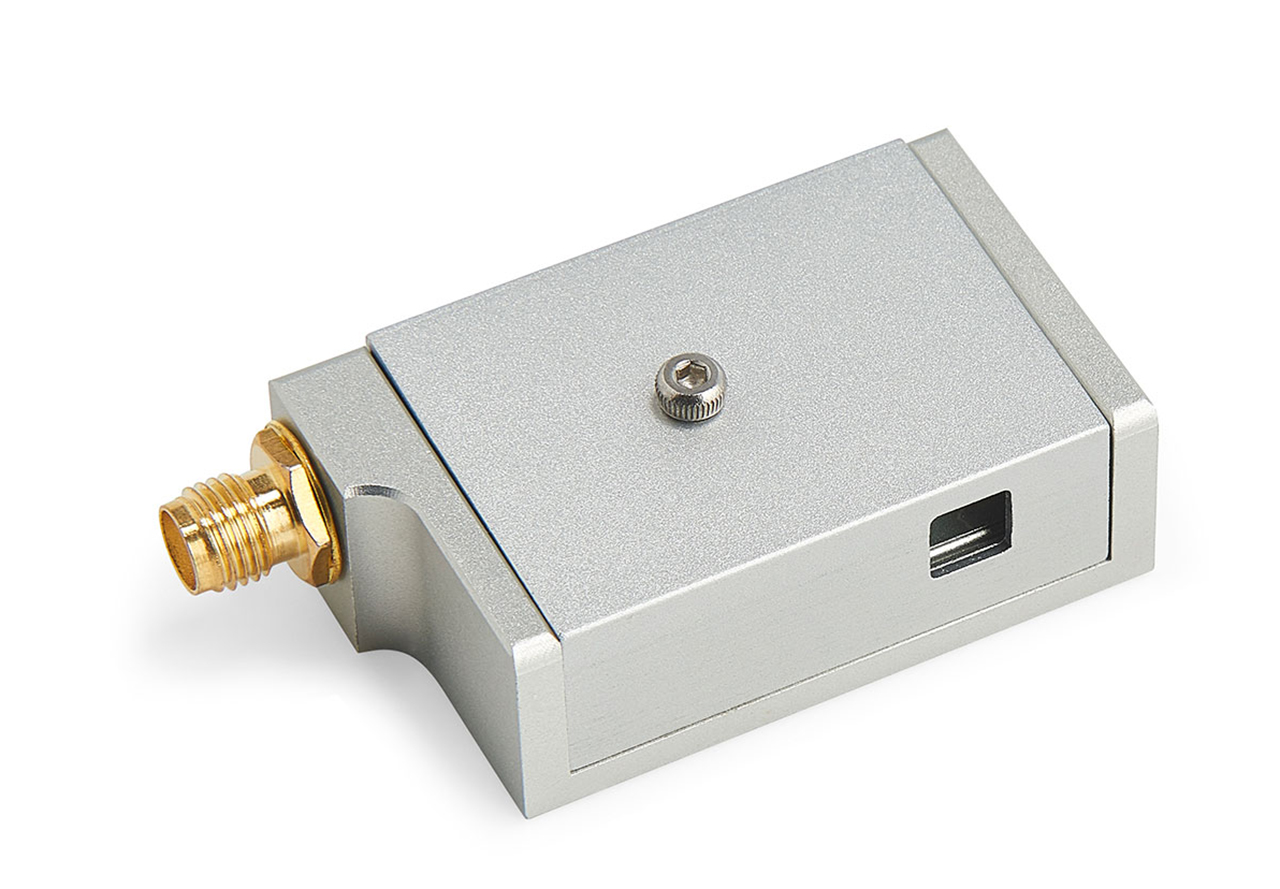

632nm 100MHz AOM Optical Aperture 1mm Free Space Acousto-optic Modulator

632nm 100MHz AOM Optical Aperture 1mm Free Space Acousto-optic Modulator

A free-space acousto-optic modulator is a device that combines sound and light signals for transmission, which can transmit signals without optical fibers. This technology is widely used in the field of wireless communication, such as wireless local area network, mobile communication and satellite communication.

[Applications]
Optical switch
Laser wavelength shift

[Note]
Lead Time: 3~4 weeks

[Specifications]

Parameter	Unit	Min	Max	Typical Value	Remarks
Material				TeO²
Wavelength	nm			632
Average Optical Power Density	W	250W/mm²
Ultrasonic Velocity	m/s			4200
Diffraction Efficiency	%		90	85
Center Frequency	MHz			100	Customizable
3dB Bandwidth	MHz			±20
Clear Aperture	mm			1
RF Power	W			0.8
Rising Time	ns
Voltage Standing Wave Ratio				1.2:1
Input Resistance	Ω			50
Deflection Angle	mrad
Device Interface				SMA
Operating Temperature	℃			-10~+60
Storage Temperature	℃			-30~+70
