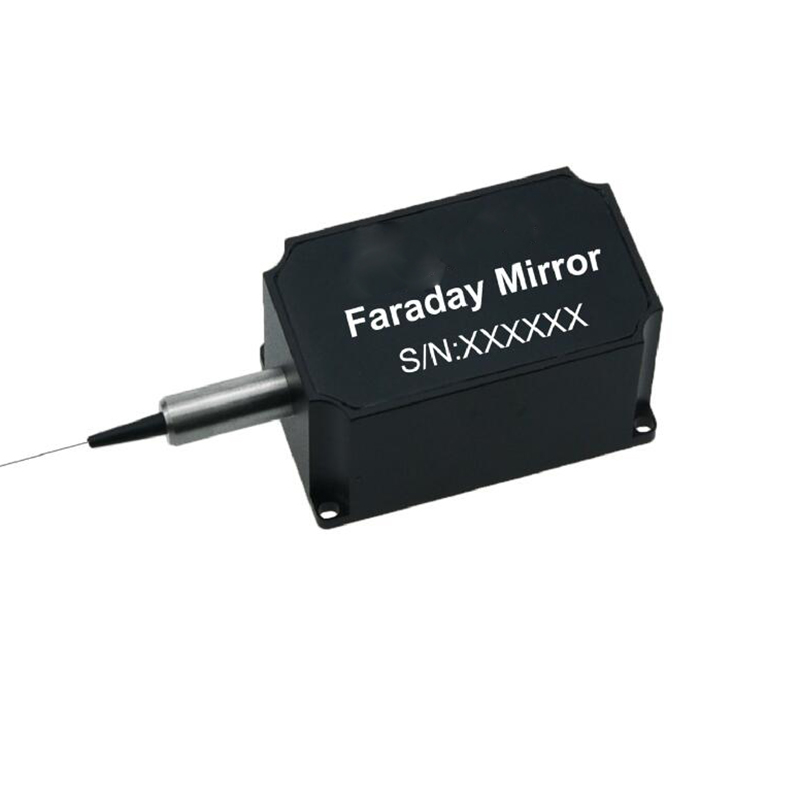

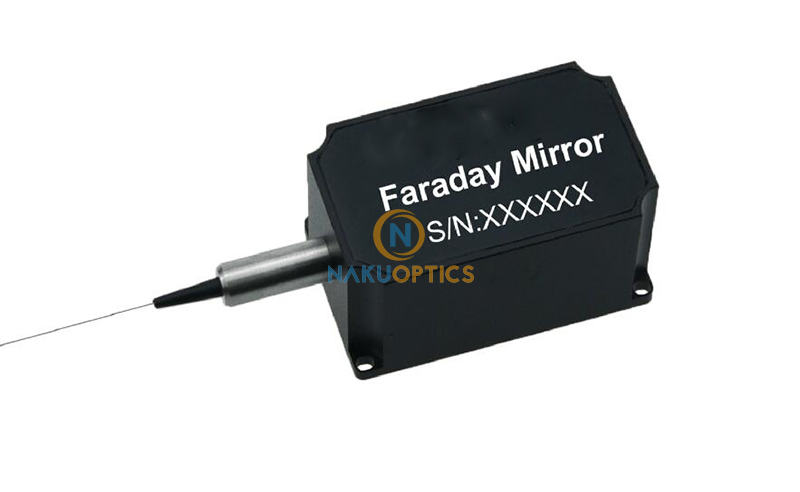

780nm Single-mode Fiber Faraday Rotating Mirror FRM With Hi780 Fiber
Product ID: 1651
$1,378.00
780nm Single-mode Fiber Faraday Rotating Mirror FRM With Hi780 Fiber
The fiber optic Faraday rotating mirror can reflect light in an orthogonal polarization direction of 90° relative to the incident light state of polarization (SOP); it has low insertion loss, high return loss, high signal-to-noise ratio and good environmental stability and reliability. It can minimize the changes in polarization state caused by thermal and mechanical disturbances in the optical fiber, and is excellent in optimizing the performance of fiber amplifiers, fiber lasers, and fiber interferometers.
[Features]
Low insertion loss
High return loss
High stability and reliability
[Specifications]
| Prameter | Unit | Value |
| Center Wavelength | nm | 780 |
| Operating Bandwidth | nm | ±10 |
| Max Insertion Loss | dB | 1.2 |
| Rotation Angle (One Way) | degree | 45 (90° optional) |
| Rotation Angle Error | degree | ±3 |
| Polarization Dependent Loss | dB | 0.15 |
| Withstand Power | W | 0.5 (1/5/10W can be customized.) |
| Fiber Type | Hi780 | |
| Fiber Length | m | 1 (Customizable) |
| Connector | FC/APC (Customizable) | |
| Max Tensile Load | N | 5 |

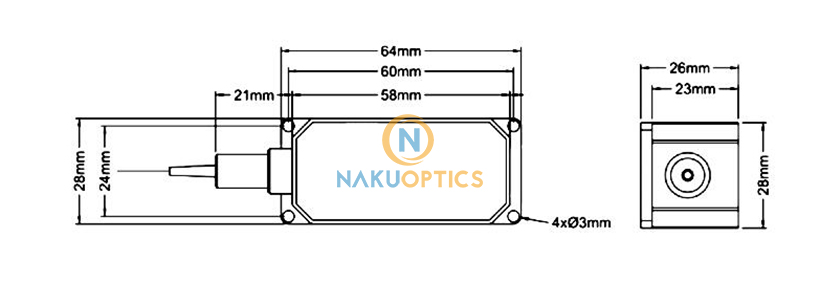

| Package Dimension | mm | 58*28*26 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
*The test environment is 23℃;
*The above test data does not include connectors. If connectors are added, the insertion loss will increase by 0.3dB and the return loss will decrease by 5d8. For polarization-maintaining products, the extinction ratio is reduced by 2dB.
.jpg)
.jpg)
| Weight | 2.08 kg |
|---|---|
| Rotation Angle | 45°, 90° |
