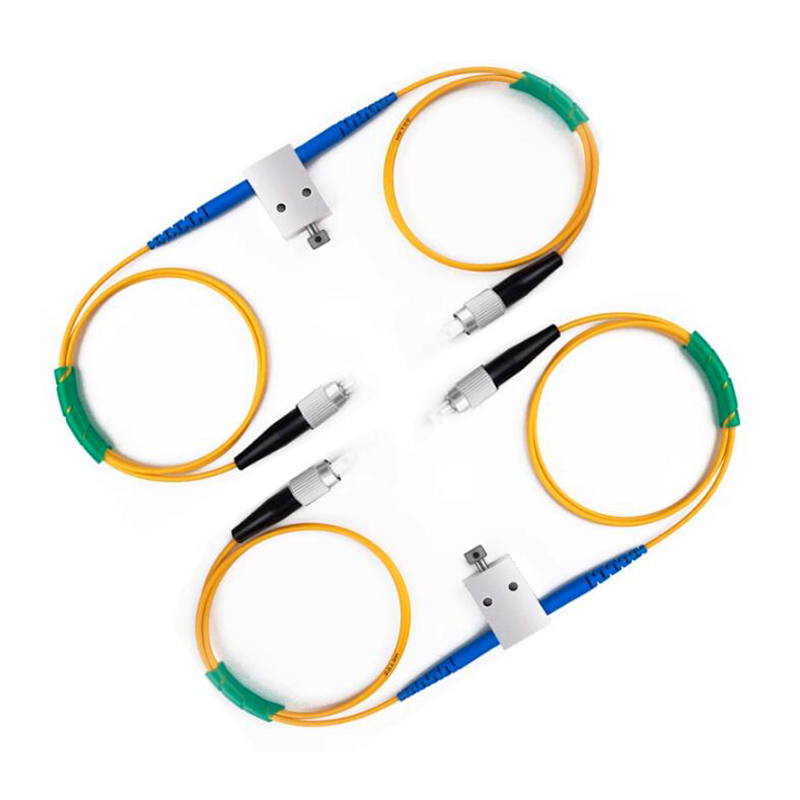

808nm Manually Various Optical Fiber Attenuator MVOA  Can be Customized

Product ID: 1385


$172.00

808nm Manually Various Optical Fiber Attenuator MVOA  Can be Customized

Optical fiber attenuator is an optical device that can reduce the energy of optical signals. It is used to intentionally reduce the input optical power to avoid damage to the receiving equipment due to excessive input optical power. NakuOptics can provide fixed attenuators of different wavelengths. and online adjustable attenuator.

[Features]
Low insertion loss
Wide attenuation range
Compact structure
High stability and reliability

[Applications]
Fiber laser
Fiber amplifier
Optical communication field

[Specifications]

Paramter Unit Value
Central Wavelength nm 808
Working Bandwidth nm ±20
Max. Additional Loss dB 1.0
Max. Attenuation dB 40
Polarization Dependent Loss dB 0.1
Wavelength Thermal Stability dB/℃ 0.001
Return Loss dB 55
Withstand Power CW mW 300
Fiber Type Hi780 or others
Fiber length m 1 or others
Connector Type FC/APC or others
Max. Tensile Load N 5
Package Dimensions mm 18x14x7
Operating Temperature 0 ~ +70
Storage Temperature -40 ~ +85

The temperature measurement environment is 23℃.
If more connectors are added, the insertion loss will increase by 0.3dB, and the return loss will decrease by 5dB. For polarization-maintaining products, the light ratio will decrease by 2dB.
For polarization-maintaining devices, the default is slow-axis operation and fast-axis cutoff. If you have any other needs, please contact us.

Package Dimensions

980nm fiber attenuator


Ordering Information

Working Wavelength Withstand Power Fiber Type Pigtail Length Tail Sleeve Type Connector Type
780=780nm
808=808nm
830=830nm
850=850nm
S=Specify
00=300mW
S=Specify
1=Hi780
S=Specify
08=0.8m
10=1.0m
15=1.5m
S=Specify
B=250um bare fiber
L=900um loose tube
S=Specify
N=None
FU=FC/PC
FA=FC/APC
SU=SC/PC
S=Specify

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator

630nm fiber attenuator
