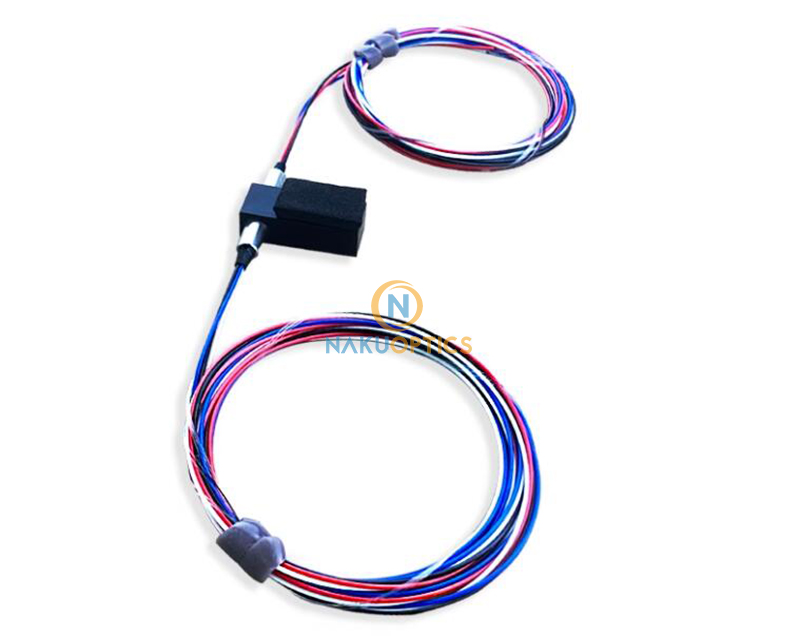

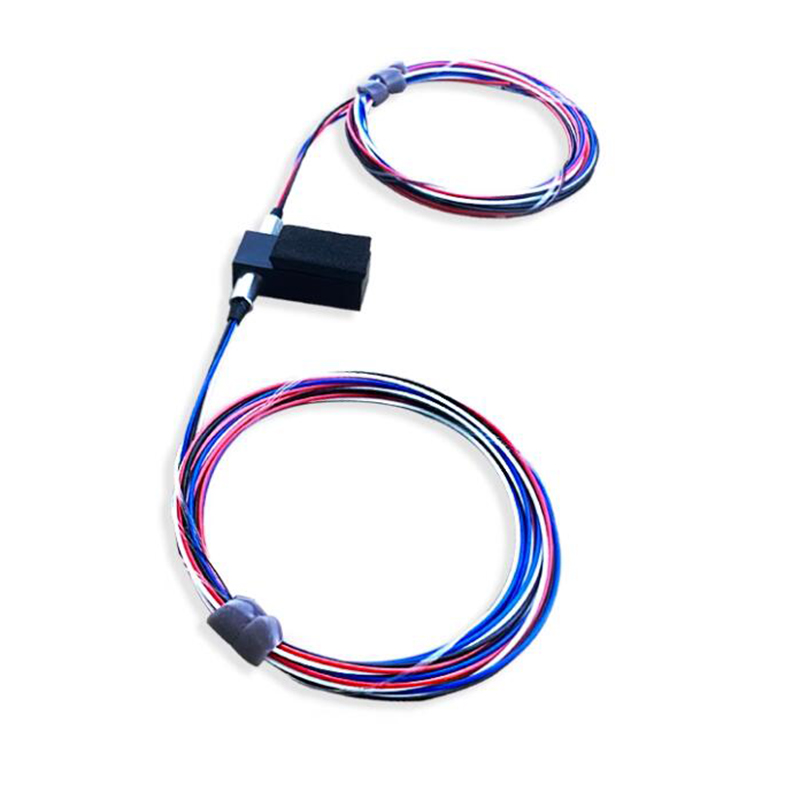

850nm Dual 2X2 Multimode Fiber Bypass Optical Switch with 900um Loose Tube

850nm Dual 2X2 Multimode Fiber Bypass Optical Switch with 900um Loose Tube

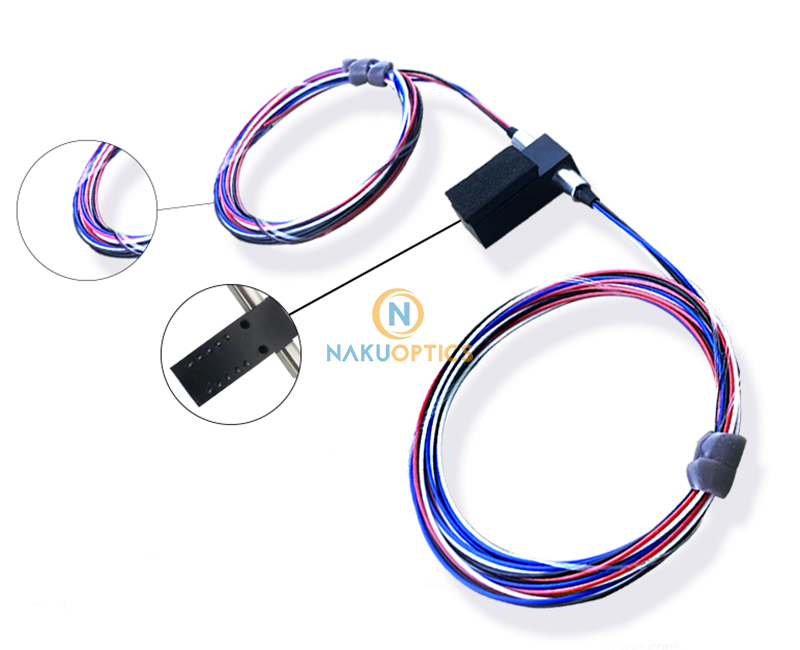

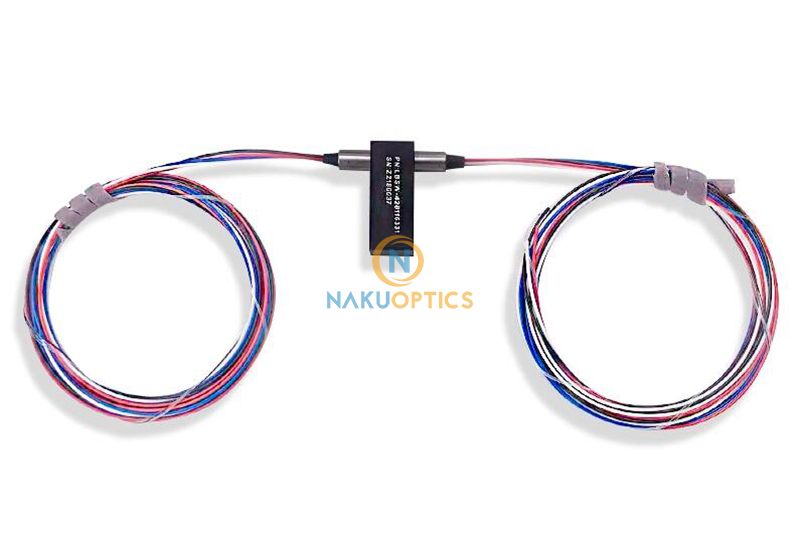

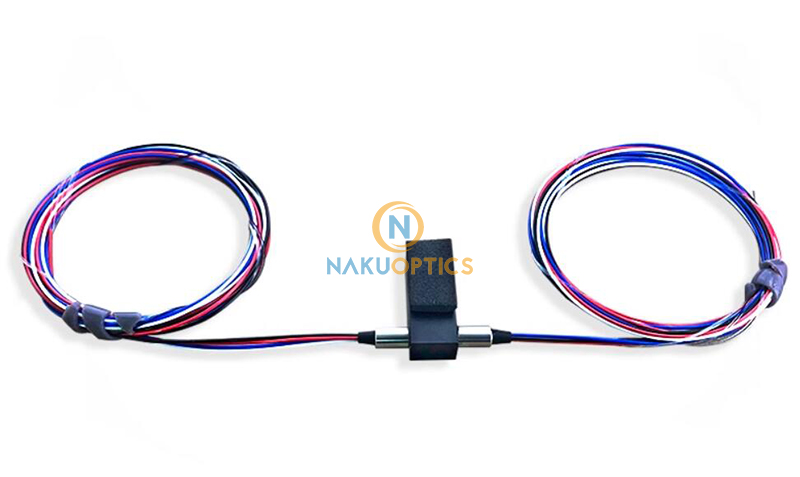

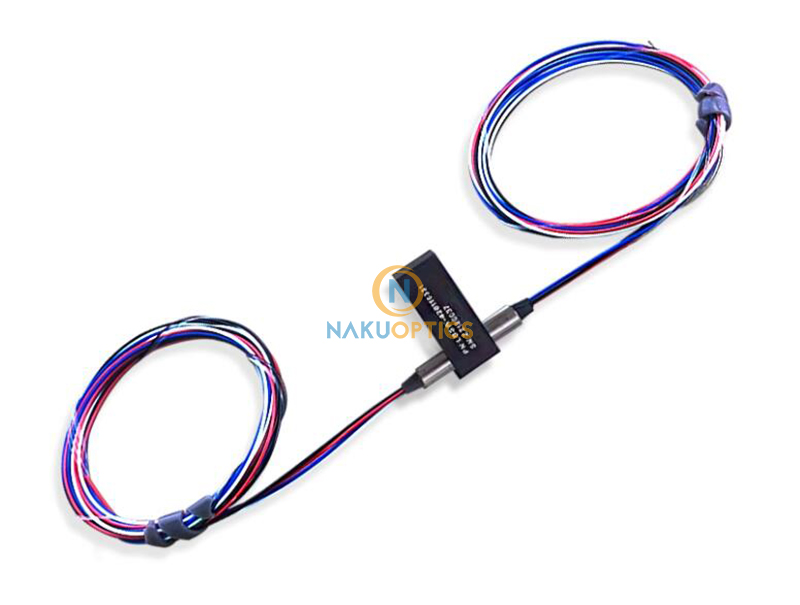

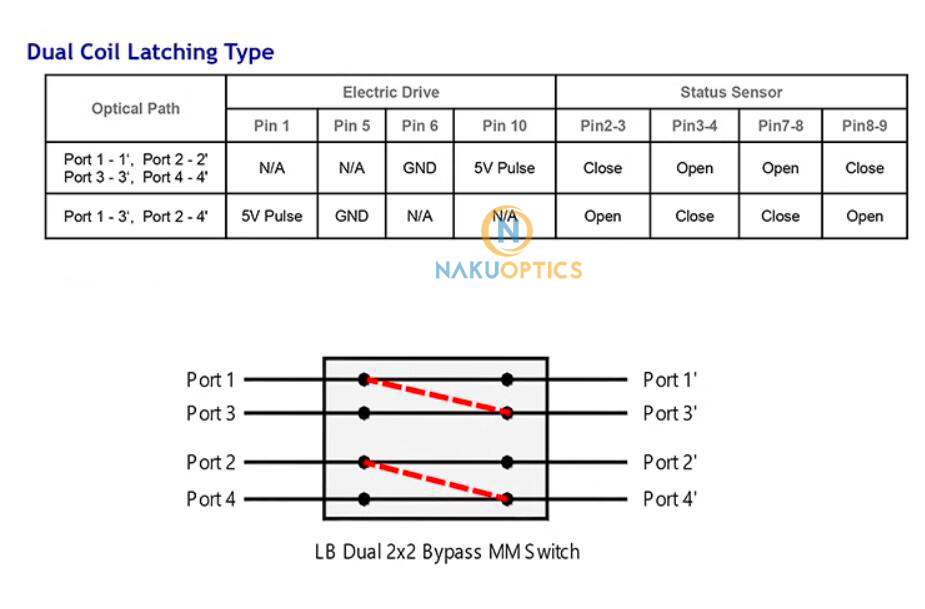

The dual 2×2 bypass multimode fiber switch is a highly integrated single fiber switch device with 8 fiber ports.

[Features]
Low insertion loss
High stability

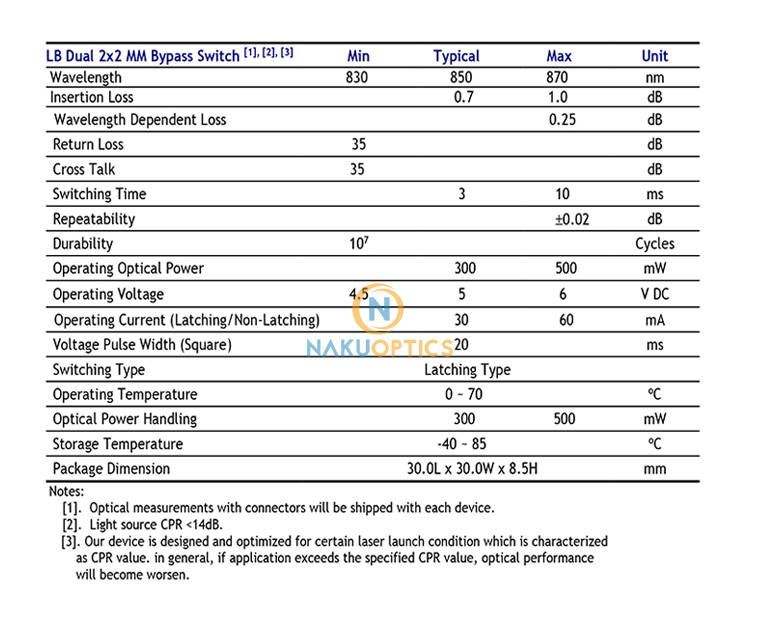

[Specifications]
Produc Name: Optical switch
Port Type: Dual 2X2
Wavelength: 850±20 nm
Typical Insertion Loss: 0.7dB
Return Loss: ≥35dB
Fiber Type: 62.5/125 Multimode fiber
Pigtail Length: 1m
