Fiber Attenuator
850nm Multi-mode In-line Adjustable Attenuator VOA Can be Customized
Product ID: 1394
$79.00

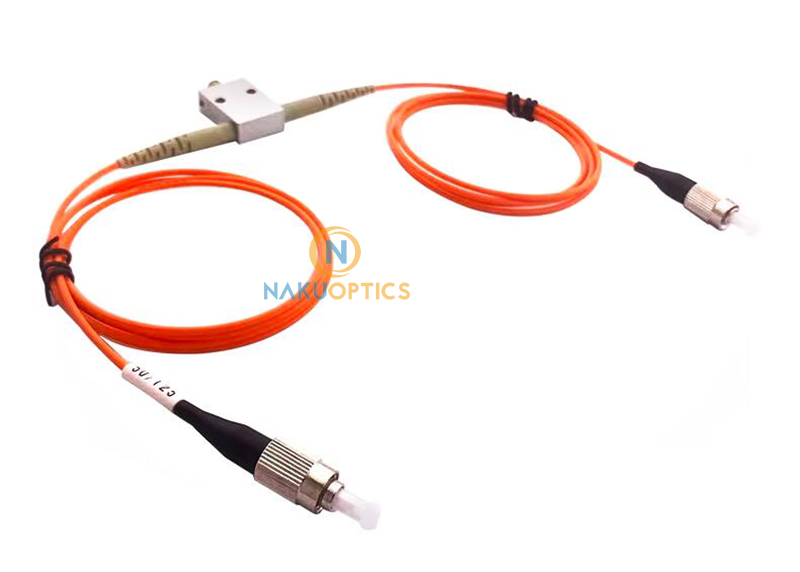

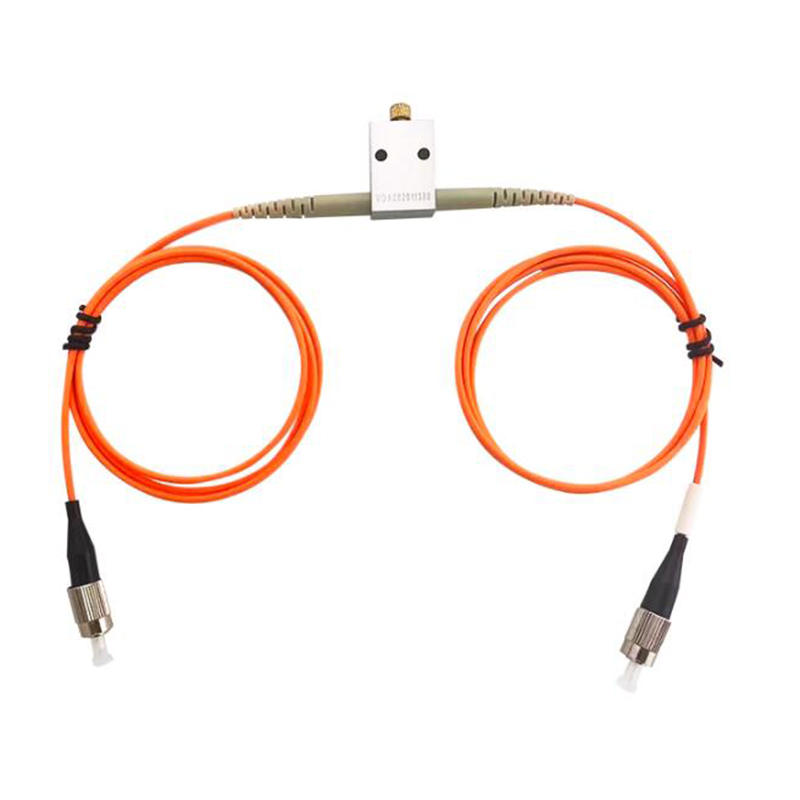

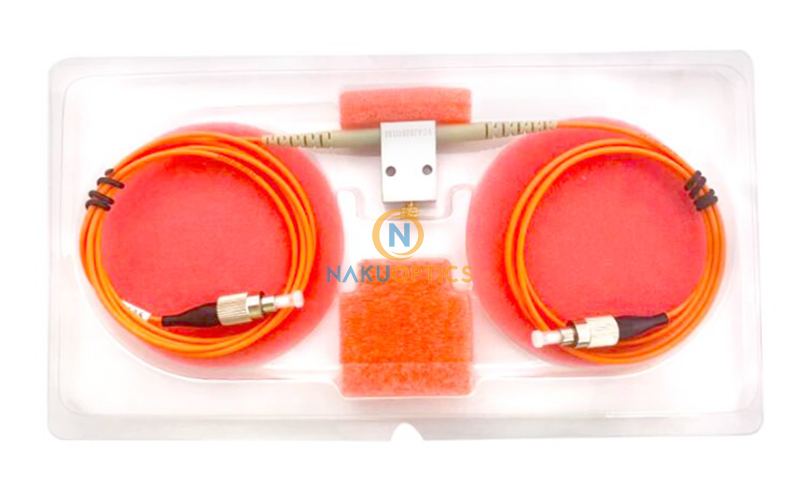

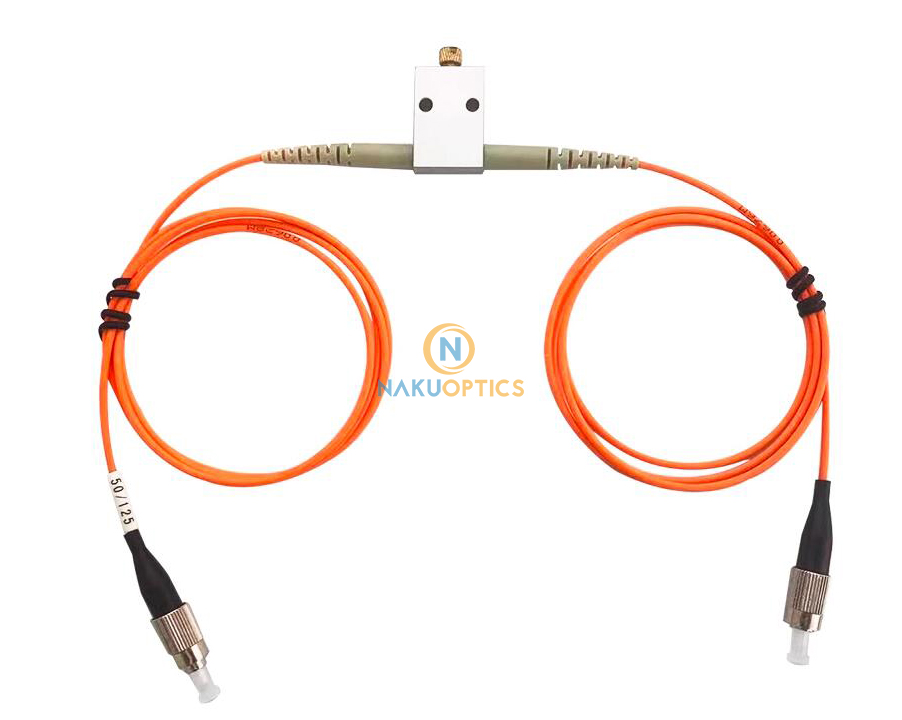

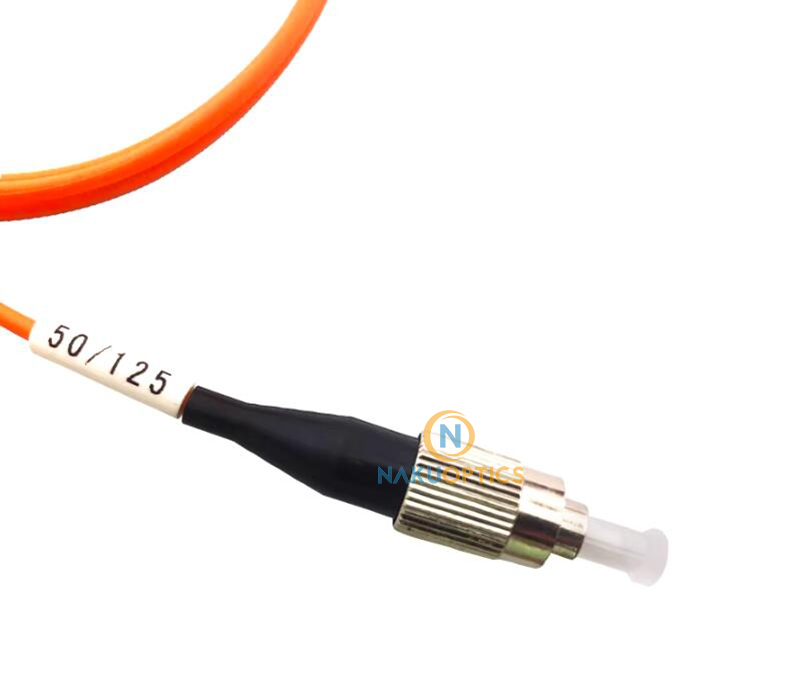

850nm Multi-mode In-line Adjustable Attenuator VOA Can be Customized
[Features]
Low insertion loss
Compact structure
High stability and reliability
[Specifications]
Product Name: Fiber attenuator
Wavelength: 850nm
Insertion Loss: <1.0dB Return Loss: >45dB (UPC), >50dB (APC)
Adjustable Attenuation Range: >35DdB
Fiber Type: Multi-mode fiber (50/125μm, 62.5/125μm)
Pigtail Length: 1m (Default)
Withstand Power: 500mW
Ordering Information
| Working Wavelength | Fiber Type | Pigtail Length | Connector Type |
| 850=850nm S=Specify |
MM fiber | 1=1.0m 2=2.0m 3=3.0m S=Specify |
1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC |
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 4.11 kg |
|---|
There are no reviews yet.
