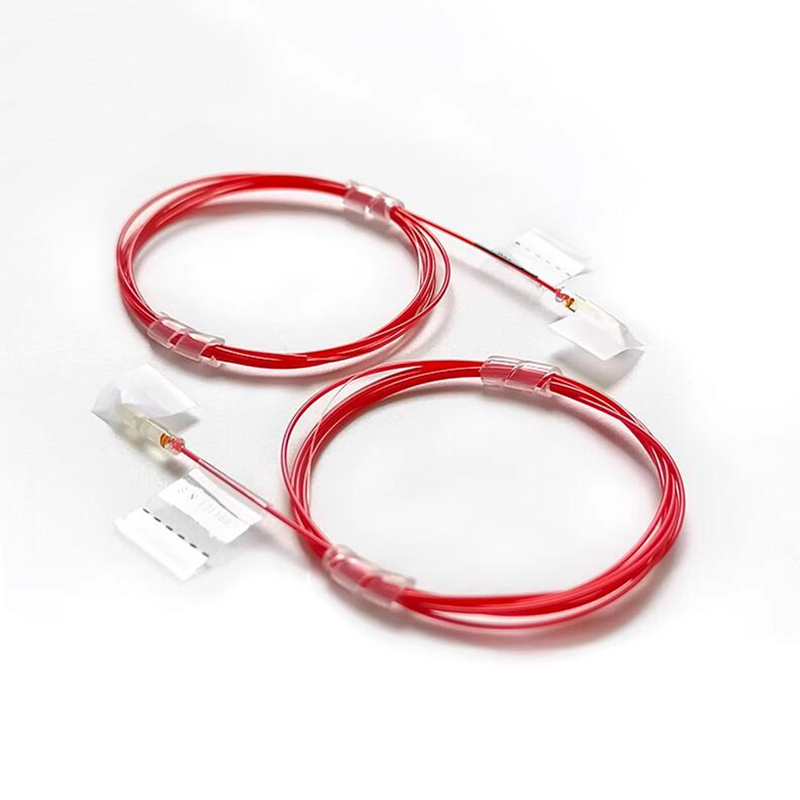

850nm PM Fiber Collimator C GLens Polarization Maintaining Collimator
Product ID: 1303
$73.00
850nm PM Fiber Collimator C GLens Polarization Maintaining Collimator
[Features]
Low insertion loss
High return loss
Glue-free process for light path
High stability and repeatability
[Applications]
Optical fiber communication system
Wavelength division multiplexing devices and modules
Isolator
circulator
Optical path coupling
[Specifications]
| Parameter | Unit | Value |
| Central Wavelength | nm | 850 |
| Working Wavelength Range | nm | ±30 |
| Working Distance | mm | 5 or specify |
| Insertion Loss (23℃) | dB | ≤0.25 |
| Max. Insertion Loss (23℃) | dB | ≤0.3 |
| Min. Return Loss(Input/Output) | dB | ≥60 |
| Extinction Ratio (23℃) | dB | 25 |
| Max. Extinction Ratio (23℃) | dB | 23 |
| Max. Optical Power (CW) | mW | 300 |
| Max. Tension Load | N | 5 |
| Input/Output Fiber Type | PM980 Panda fiber | |
| Package Dimension | mm | Φ3.2*10 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 4.94 kg |
|---|
