980nm 1X2 2X2 Taper Type Single-mode Fiber Coupler Mini Coupler
Product ID: 1542
$79.00 – $96.00
980nm 1X2 2X2 Taper Type Single-mode Fiber Coupler Mini Coupler
Optical fiber coupler refers to a component that splits optical signals into multiple optical fibers through optical fibers. It is an optical passive component and is generally used in various fields such as telecommunications networks, cable TV networks, user loop systems, and regional networks. Fiber optic connectors play an important role in passive components and are also called splitters.
[Features]
Low insertion loss
High return loss
Good interchangeability
High stability and repeatability
[Applications]
LAN
CATV
Fiber to the home
Fiber data transmission
Fiber sensor
[Specifications]
Product Name: Fiber coupler
Wavelength: 980±15nm
Port Type: 1X2, 2X2 (Choose)
Fiber Type: Hi1060 single-mode fiber (Customizable)
Fiber Length: 0.8m (Customizable)
Ordering Information
| Grade | Port Type | Wavelength | Coupling Ratio | Pigtail Type | Fiber Type | Length | Connector | Package |
| P=P Grade A=A Grade |
0102=1X2 0202=2X2 |
488=488nm 532=532nm 633=633nm 780=780nm 830=830nm 850=850nm 980=980nm 1064=1064nm |
1/99 2/98 3/97 … 50/50 |
250=250um bare fiber 900=900um loose tube 2000=2mm loose tube 3000=3mm loose tube |
SM450 SM600 Hi780C SM800 Hi1060flex Hi1060 |
08=0.8m 10=1.0m X=Others |
N=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC LA=LC/APC LU=LC/UPC XX=Others |

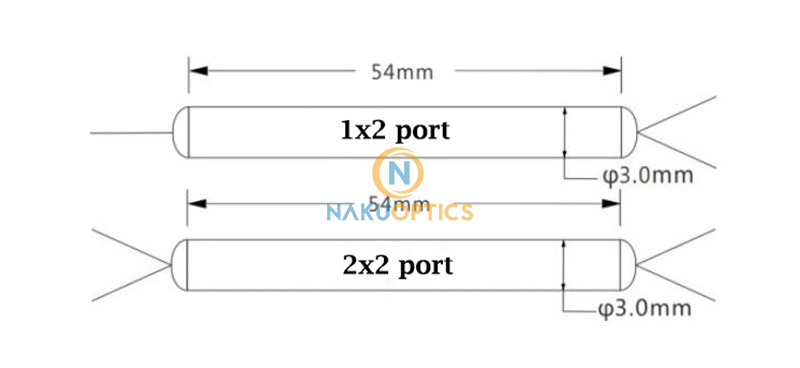

Φ3*54 90*14*8.5 |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.41 kg |
|---|---|
| Port Type | 1X2, 2X2 |
