Fiber Attenuator
980nm Optical Fiber Attrnuator MVOA Manually Adjustable Attenuator FC/APC FC/UPC 26X18X8mm
Product ID: 1421
$136.00
980nm Optical Fiber Attrnuator MVOA Manually Adjustable Attenuator FC/APC FC/UPC 26X18X8mm
[Features]
Low insertion loss
High return loss
High stability and reliability
[Applications]
Fiber sensor
CATV
Fiber communication
Fiber transmission
[Specifications]
| Paramter | Unit | Value |
| Center Wavelength | nm | 980 |
| Working Bandwidth | nm | ±50 |
| Max. Additional Loss | dB | 0.5 |
| Max. Attenuation | dB | 60 |
| Polarization Dependent Loss | dB | 0.1 |
| Return Loss | dB | 50 |
| Withstand Power CW | mW | 500 |
| Fiber Type | Hi1060 or others | |
| Fiber length | m | 1 or others |
| Connector Type | FC/APC or others | |
| Max. Tensile Load | N | 5 |
| Package Dimensions | mm | 26x18x8 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
The temperature measurement environment is 23℃.
If more connectors are added, the insertion loss will increase by 0.3dB, and the return loss will decrease by 5dB.

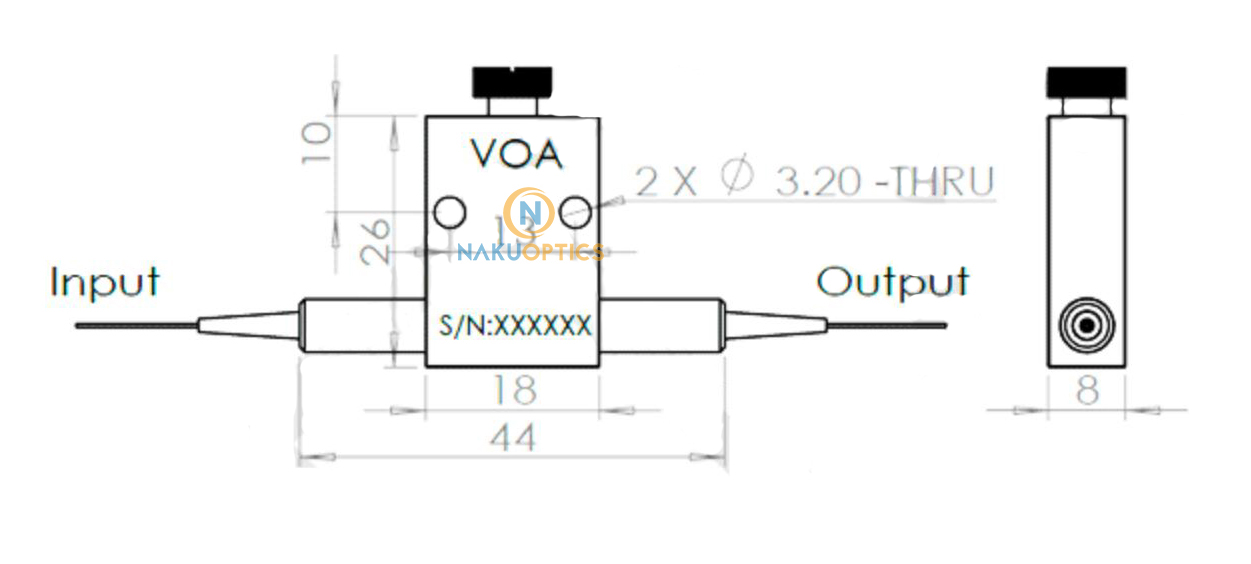

Package Dimensions
.jpg)
Ordering Information
| Working Wavelength | Withstand Power | Fiber Type | Pigtail Length | Tail Sleeve Type | Connector Type |
| 980=980 S=Specify |
00=300mW A S=Specify |
H1=Hi1060 S=Specify |
08=0.8m 10=1.0m 15=1.5m S=Specify |

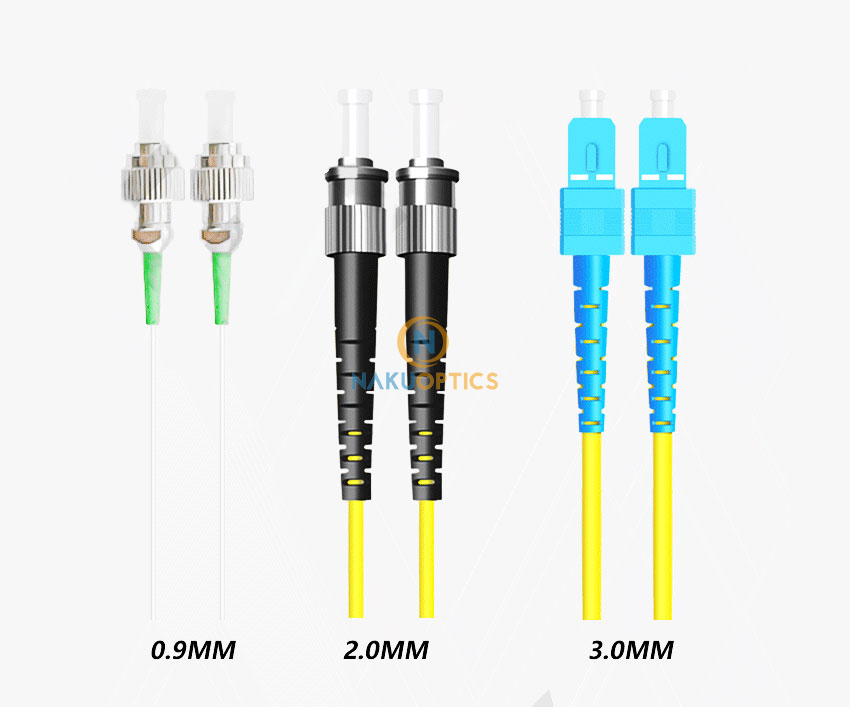

B=250um bare fiber L=900um loose tube S=Specify |

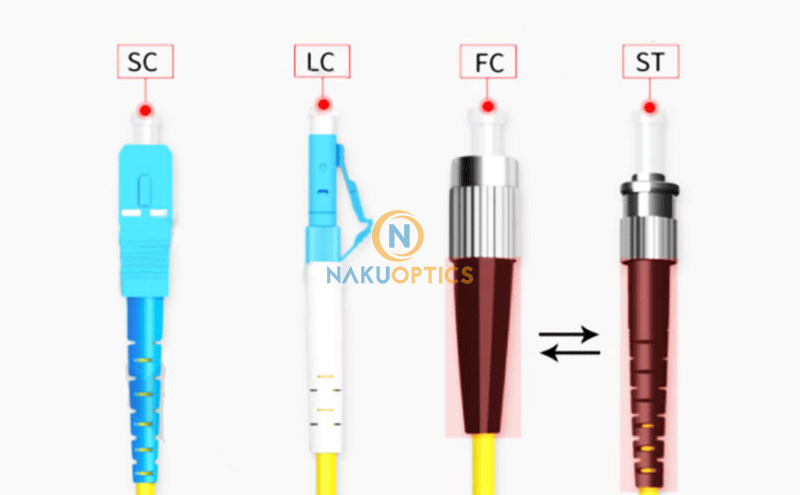

N=None FP=FC/PC FA=FC/APC S=Specify |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
