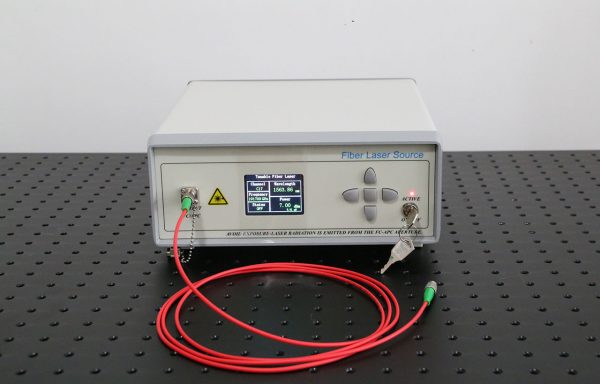

1529~1567nm C-Band 96 Multi Wavelength Tunable Laser Fiber Output
Product ID: 592
$1,859.00 – $2,159.00
1529~1567nm C-Band 96 Multi Wavelength Tunable Laser Fiber Output
The source wavelength tuning range covers the C-band and achieves continuous laser output up to 96 wavelengths (ITU-T standard wavelength, 50 GHz wavelength interval). It features an integrated dual FP cavity tuning etalon and high gain chip, with high output power ranging from 5~16mW. The laser has a narrow linewidth and high wavelength accuracy. It also comes with a special drive control circuit, high-definition color LCD screen, and optional control keyboard and host computer software.
The user can easily tune the wavelength accurately. Can be used for DWDM system development, fiber laser, fiber optic link, optical device testing and other fields.
[Features]
1. Up to 96 wavelengths
2. High power stability
3. High side mode rejection ratio
4. Excellent relative intensity noise
[Applications]
1. DWDM system
2. Fiber laser
3. Fiber link
4. Optical device testing
[Specification]
|
Parameters |
Unit |
Typical Value |
Remarks |

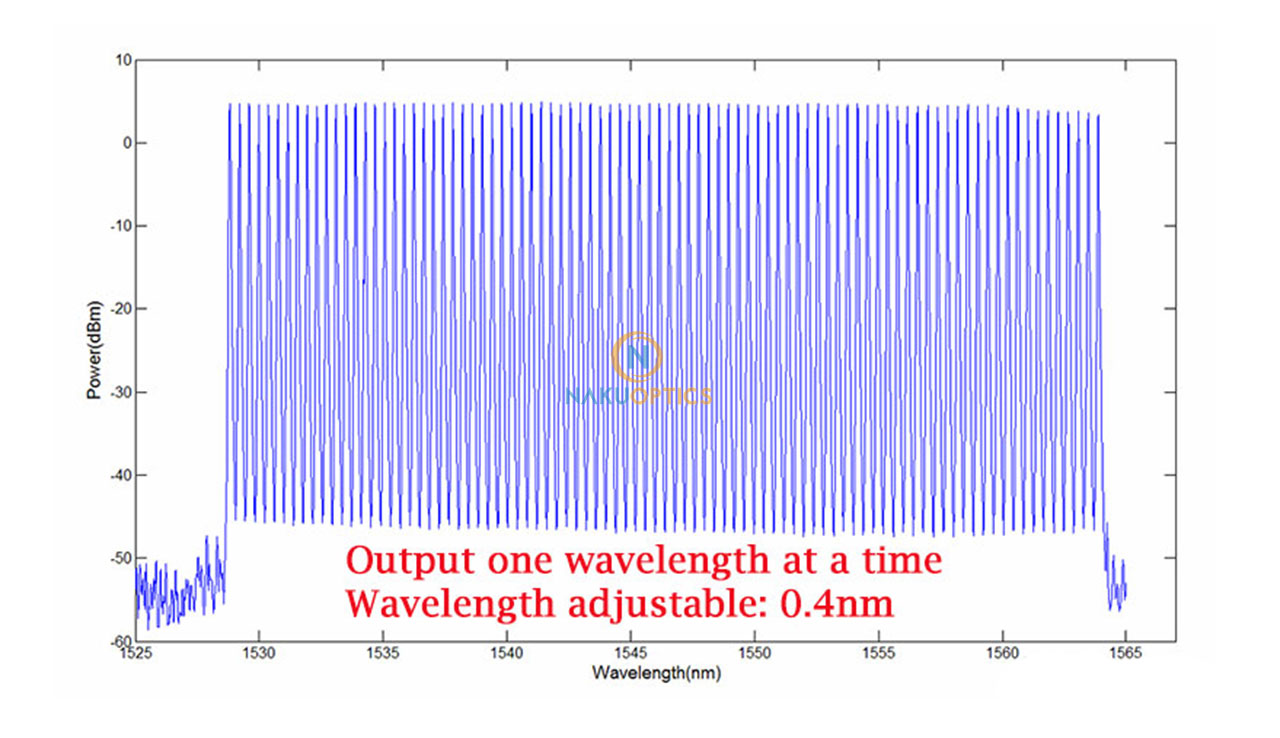

| Wavelength Tuning Range |
nm |
1529.16~1567.13 |
ITU Standards H60~C13 |
| Frequency Tuning Range |
THz |
191.3~196.05 |
|
| Channel Spacing |
GHz |
50 |
Equivalent to 0.4nm |

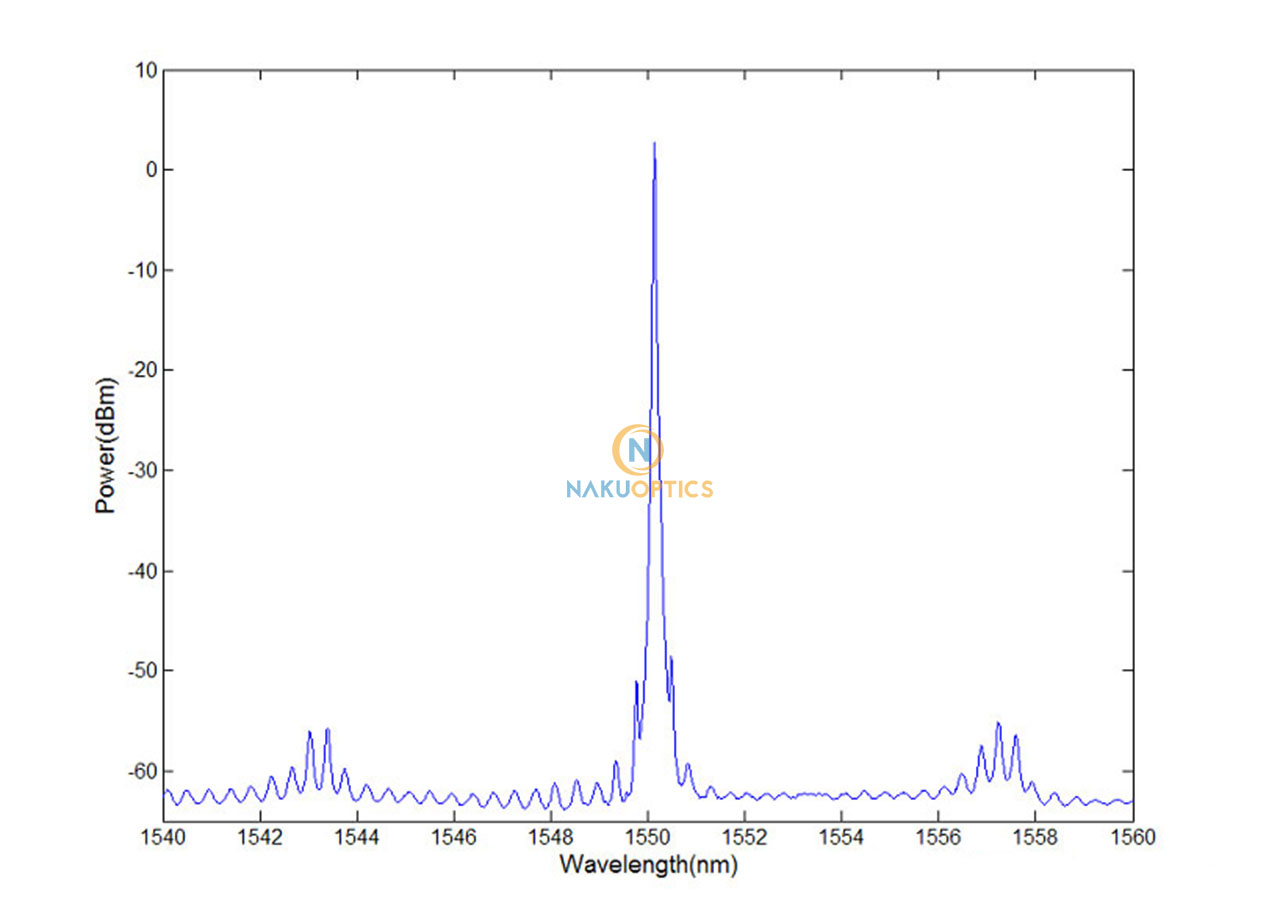

| Side Mode Suppression Ratio(SMSR) |
dB |
>50 |
|
| Wavelength Channels |
— |
96 |
|
| Output Power |
mW |
10~20 |
7~20mW Tunable |
| Short-term Stability (15 minutes) |
dB |
≤ 0.01 |
Single wavelength full temperature |
| Long-term Stability (8 hours) |
dB |
≤ 0.025 |
Single wavelength full temperature |
| Pigtail Fiber Type |
— |
SMF-28e / PM1550 |
Choose |
| Fiber Interface Type |
— |
FC/APC |
|
|
Electrical and environmental parameters |
DeskTop Type |
| Control method |
Button |
| Communication interface |
DB9 Female(Default not include) |
| Power supply |
100~240V AC, <30W |
| Size |
260(W)×280(D)×120(H)mm |
| Operating temperature range |
-5~+35°C |
| Operating humidity range |
0~70% |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
