Full Band Deuterium Halogen 2IN1 Lab Fiber Light Source

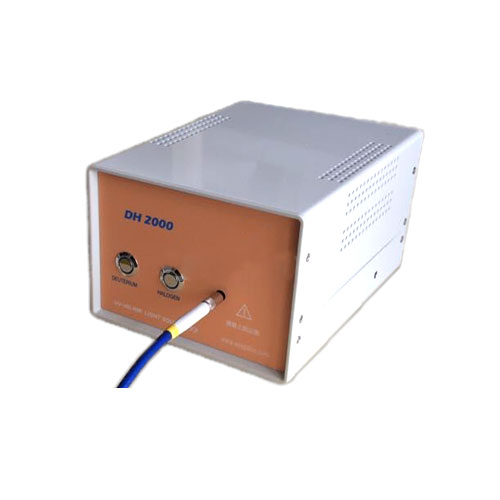

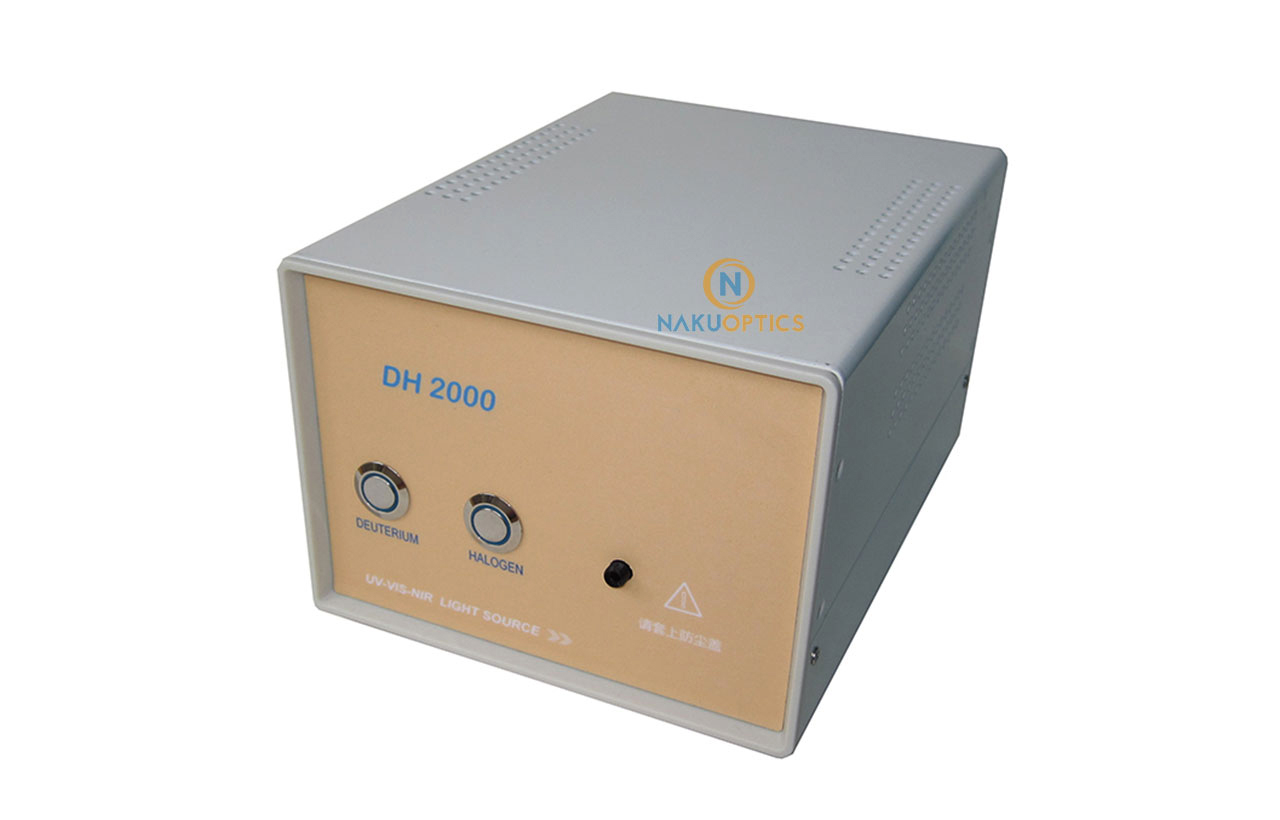

Full Band Deuterium Halogen 2IN1 Lab Fiber Light Source DH2000/DH2000-LL

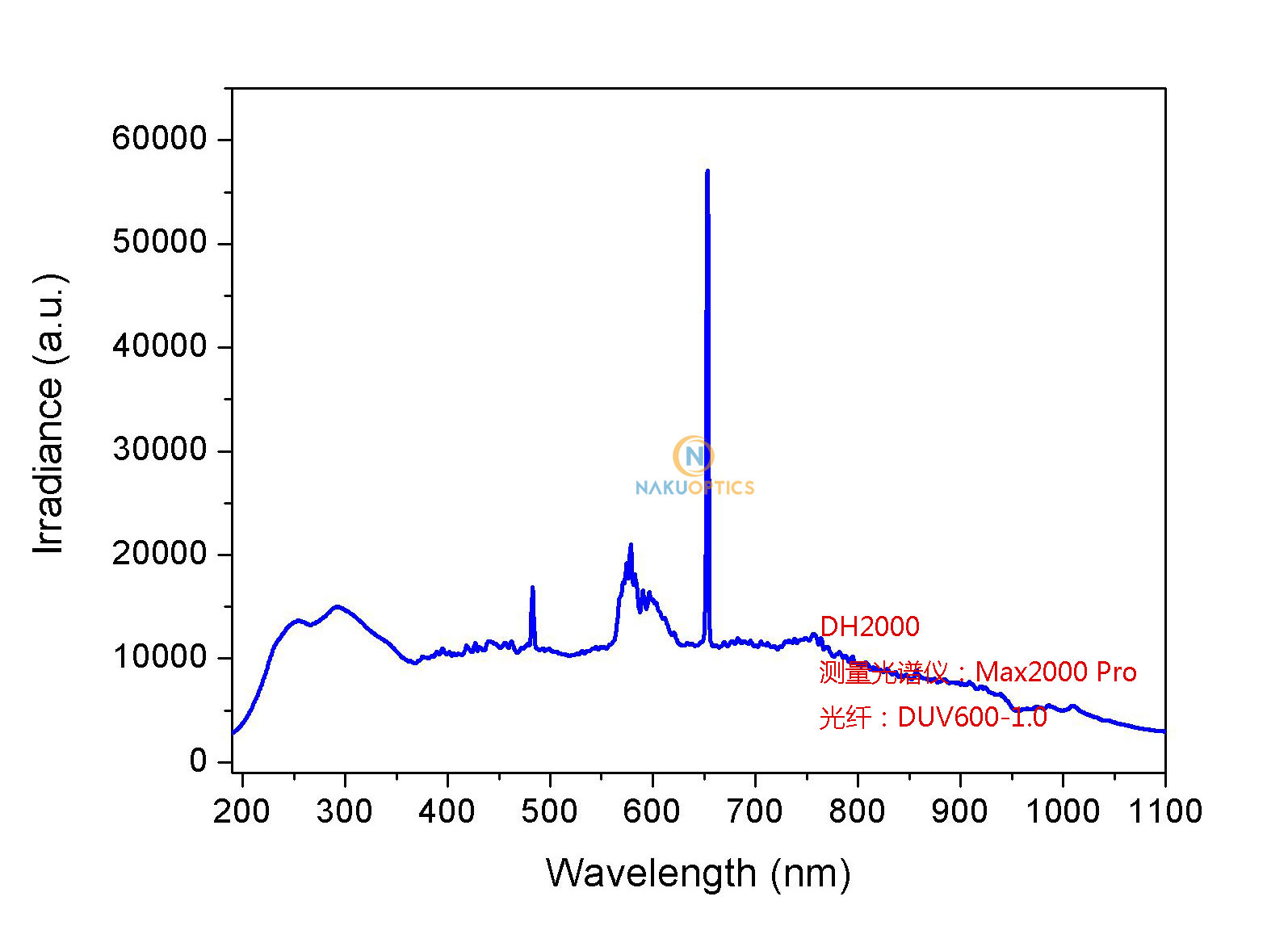

The DH2000 composite light source integrates continuous deuterium lamp and tungsten halogen lamp wide-band spectrum in one channel. The integrated spectrum provides continuous output from 190nm to 2500nm.

The continuous spectrum emitted by the deuterium lamp ranges from 190-400 nm in the ultraviolet band to 400-800 nm in the visible light, making the deuterium lamp a high-precision light source for analysis and measurement instruments, such as liquid chromatographs.

The light-emitting principle of the tungsten-halogen bulb is realized by using the principle of heating the object and the principle of heat radiation. The tungsten-halogen bulb is to conduct enough current to the filament, and the filament will emit light when it heats up to an incandescent state. The wavelength range of tungsten halogen bulbs is usually 360nm-2000nm. The life of a tungsten halogen bulb is related to its operating temperature. The higher the color temperature, the shorter the life span.

[Features]
High stability, high quality deuterium lamp and tungsten halogen lamp.
The output light intensity of the halogen lamp can be adjusted, which can realize the balanced output of the deuterium halogen spectrum.
Efficient cooling system.
Provide 185-2500 nm continuous spectrum radiation continuous output.
High power output.
SMA905 standard interface output.
The deuterium lamp and the tungsten halogen lamp can be turned on separately.
Long life and high stability.
Suitable for UV spectrum measurement.

[Specifications]

Model	DH2000	DH2000-LL
Size	150 mm x 135 mm x 319 mm	150 mm x 135 mm x 319 mm
Weight	3.5 kg	3.5 kg
Power	25W(deuterium lamp), 10W (halogen lamp)	30W(deuterium lamp), 20W (halogen lamp)
Wavelength Range	190~400nm (deep UV deuterium lamp bulb) 360~2500nm (halogen bulb)	180~400nm (deep UV deuterium lamp bulb) 360~2500nm (halogen bulb)
Humidity Range	5~95%	5~95%
Operating current	85V/0.3A	85V/0.3A
Operating Voltage	580V@20℃	580V@20℃
Voltage Drift	<0.01% per hour	<0.01% per hour
Voltage Stability	<5×10^-6 peak (0.1-10.0 Hz)	<5×10^-6 peak (0.1-10.0 Hz)
Operating Temperature	5℃~35℃	5℃~35℃
Radiation Characteristics	1.0mm aperture, numerical aperture NA0.22~0.37	0.5mm aperture, numerical aperture NA0.22~0.37
Power Consumption	~78 VA	~78 VA
Warm-Up Time	40 minutes (deuterium lamp) 20 minutes (halogen lamp)	40 minutes (deuterium lamp) 20 minutes (halogen lamp)
Power Supply	85~250 V AC 50~60HZ	85~250 V AC 50~60HZ
Lifetime	1500hrs	2000hrs
