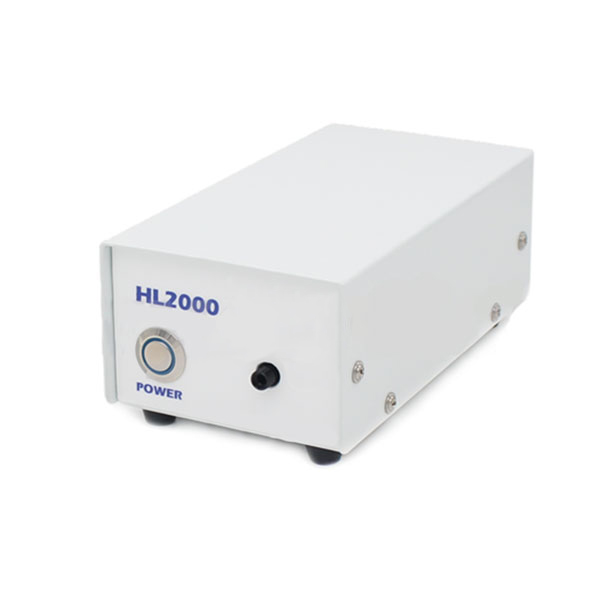

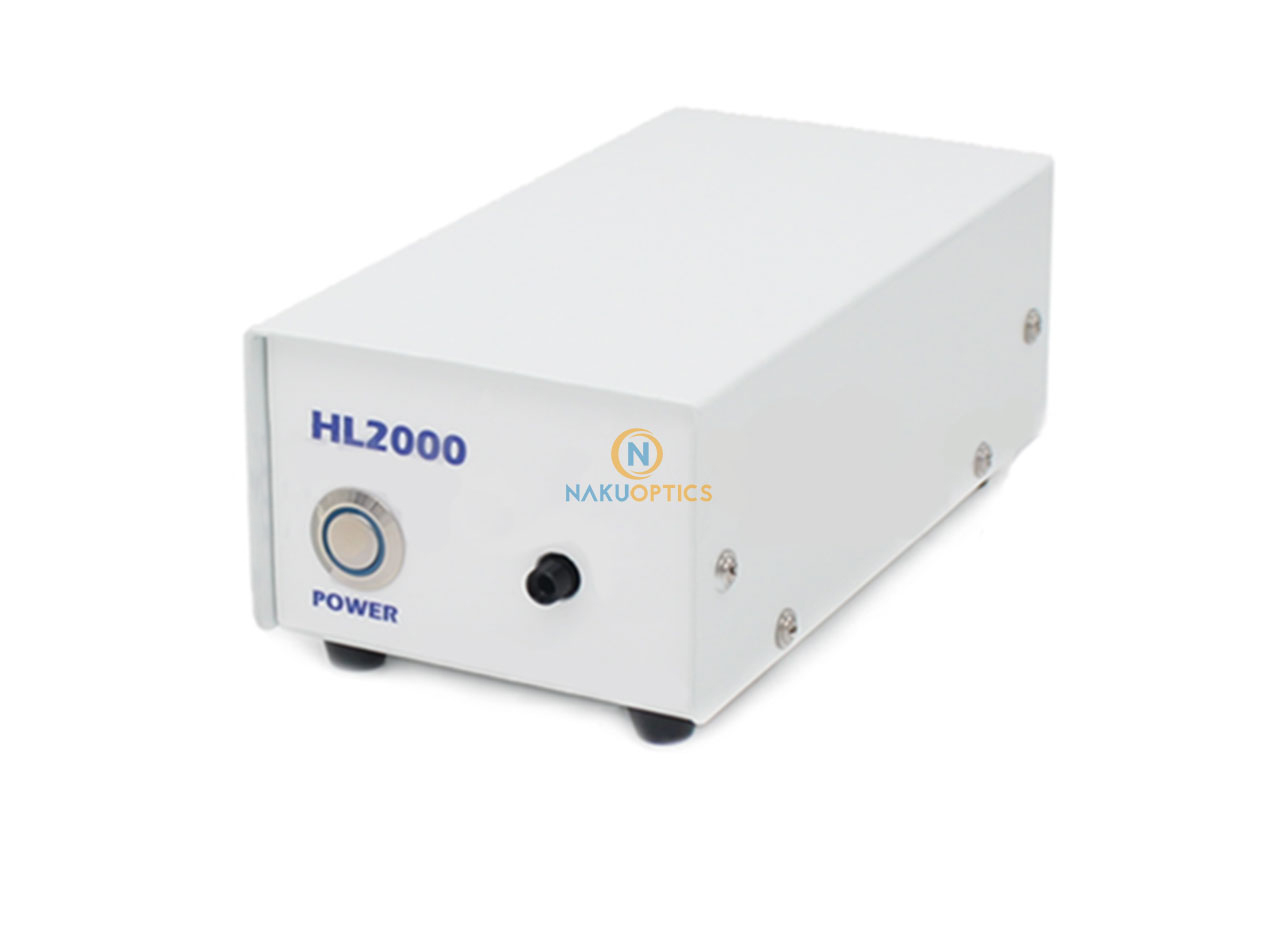

HL2000 Halogen Fiber Light Source For Spectrometer Measurement

HL2000 Halogen Fiber Light Source For Spectrometer Measurement

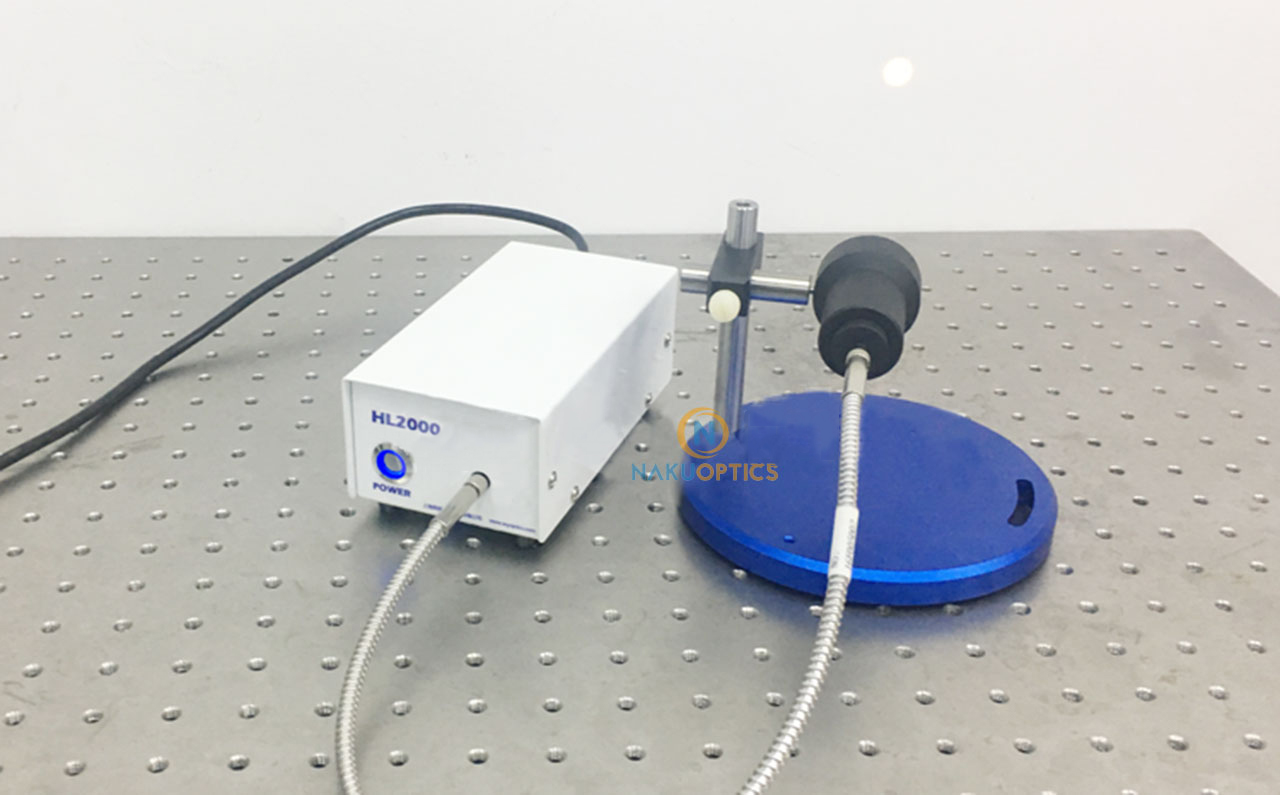

The HL2000 is a tungsten halogen light source that is versatile and most suitable for VIS-NIR (360nm-2500nm) applications. It can be connected to the SMA905 connector and connected with the maximum amount of optical fiber. The HL2000 has ultra-stable characteristics, long life and high color temperature. It is generally suitable for various spectrum applications and offers diverse models and performance characteristics to match your measurements.

[Features]
1. Using high-quality bulbs, long lifetime.
2. Wide wavelength range: 360~2000nm.
3. Using air cooling, during use, do not block the air inlet and outlet.
4. The bulb power is optional from 5W to 20W.
5. Lamp drift <0.15%/hr, high stability.

[Applications]
Film transmittance analysis
Absorbance analysis
Chromaticity analysis
Analysis of solar cell reflectance
Diffuse reflection integrating sphere measurement

[Specifications]
Product Name: Halogen Light Source
Model: HL2000-5W / HL2000-10W / HL2000-20W (Choose)

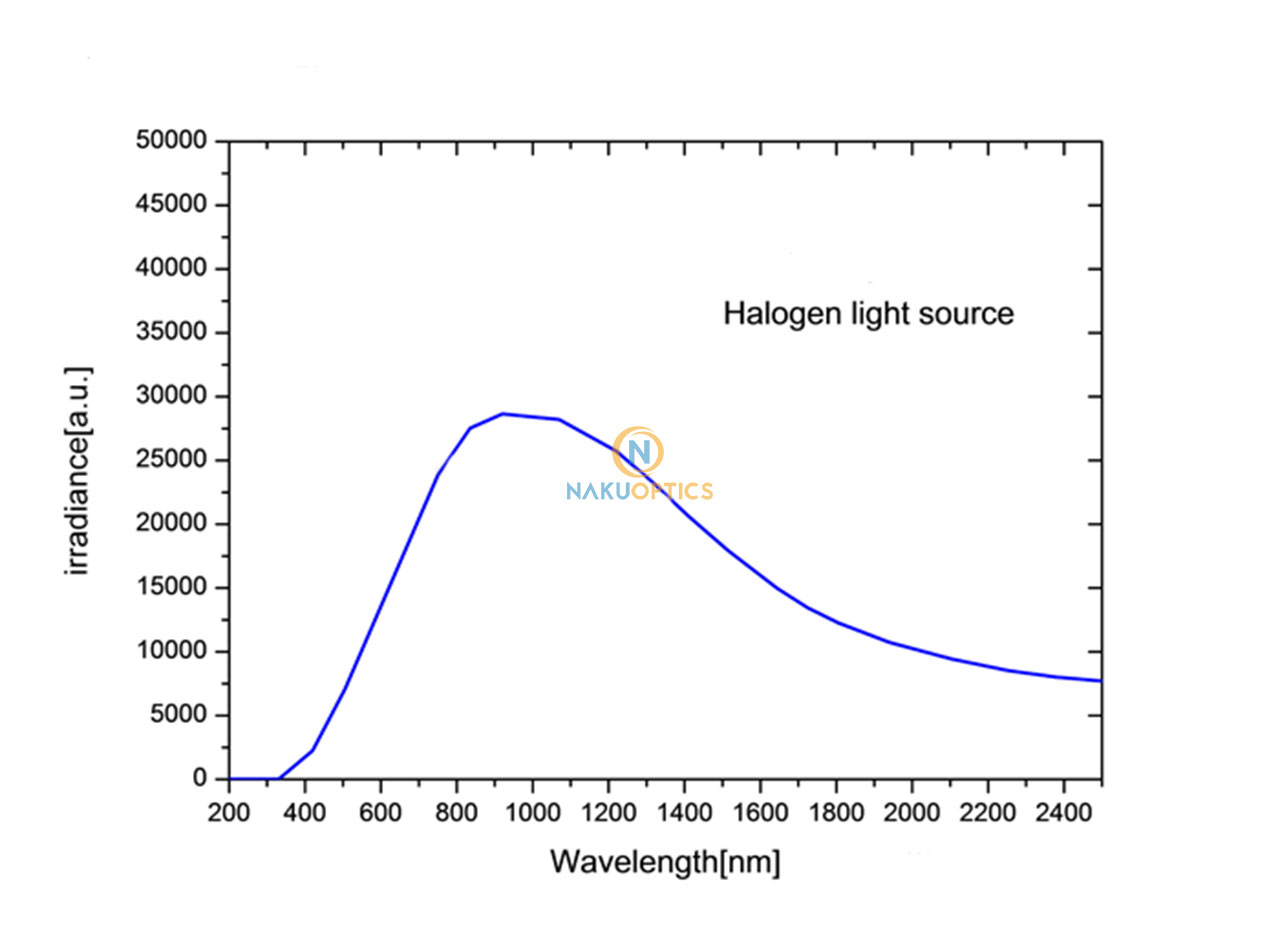

Wavelength Range: 360nm~2500nm
Output Power: 5W / 10W / 20W (Choose)
Humidity Range: 5~95%
Bulb Operating Current: 5V/2A
Voltage Stability: <5×10^-6 peak-to-peak
Radiation characteristics: 0.5mm aperture, numerical aperture NA0.22
Operating Temperature: 5~35℃
Warm-Up Time: 20 minutes

Model	HL2000-5W	HL2000-10W	HL2000-20W
Power Consumption	5W	10W	20W
Bulb Volatge	5V	5V	12V
Color Temperature	2800K	2900K	3000K
Output Power	600um=3.0mW	1000um=5.5mW	1500um=8.5mW
stability	<0.15%/hr	<0.15%/hr	<0.15%/hr
Size	160mm x 85mm x 60mm
Lifetime	10000H	6000H	2000H
