10pcs LC SM 5dB Yin-Yang Fiber Optic Attenuator Without Ears
Product ID: 769
$60.00

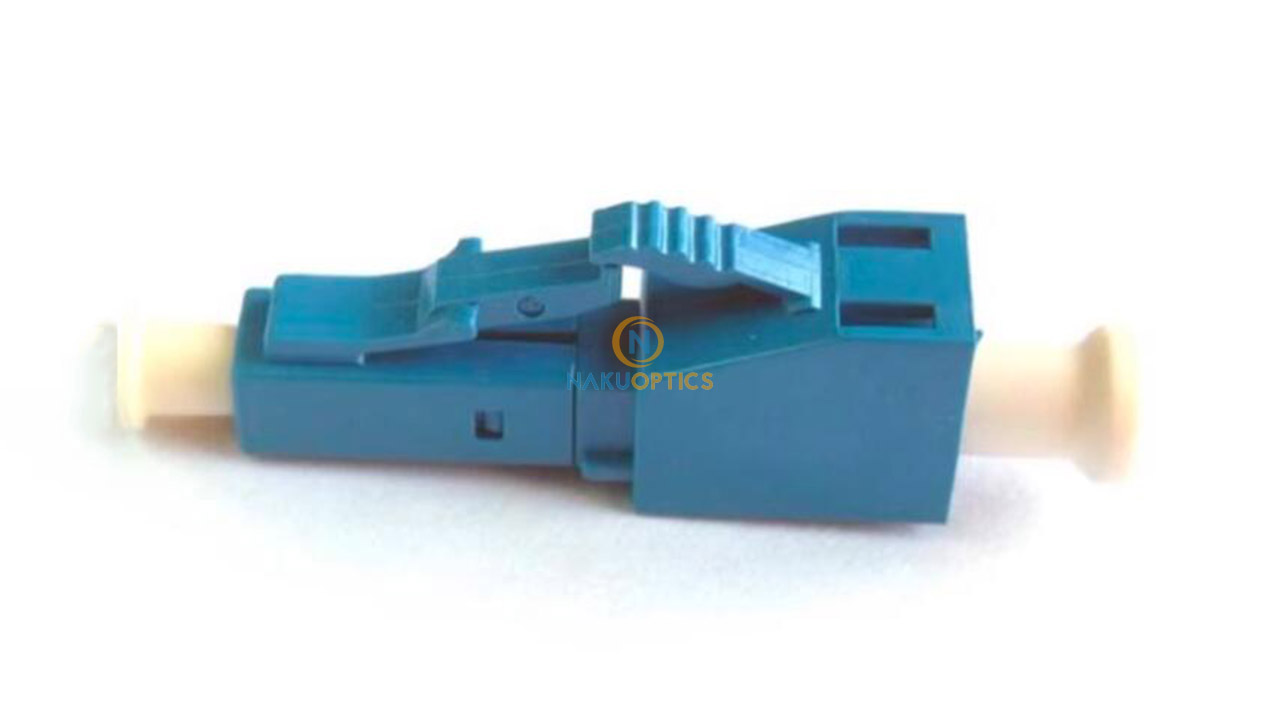

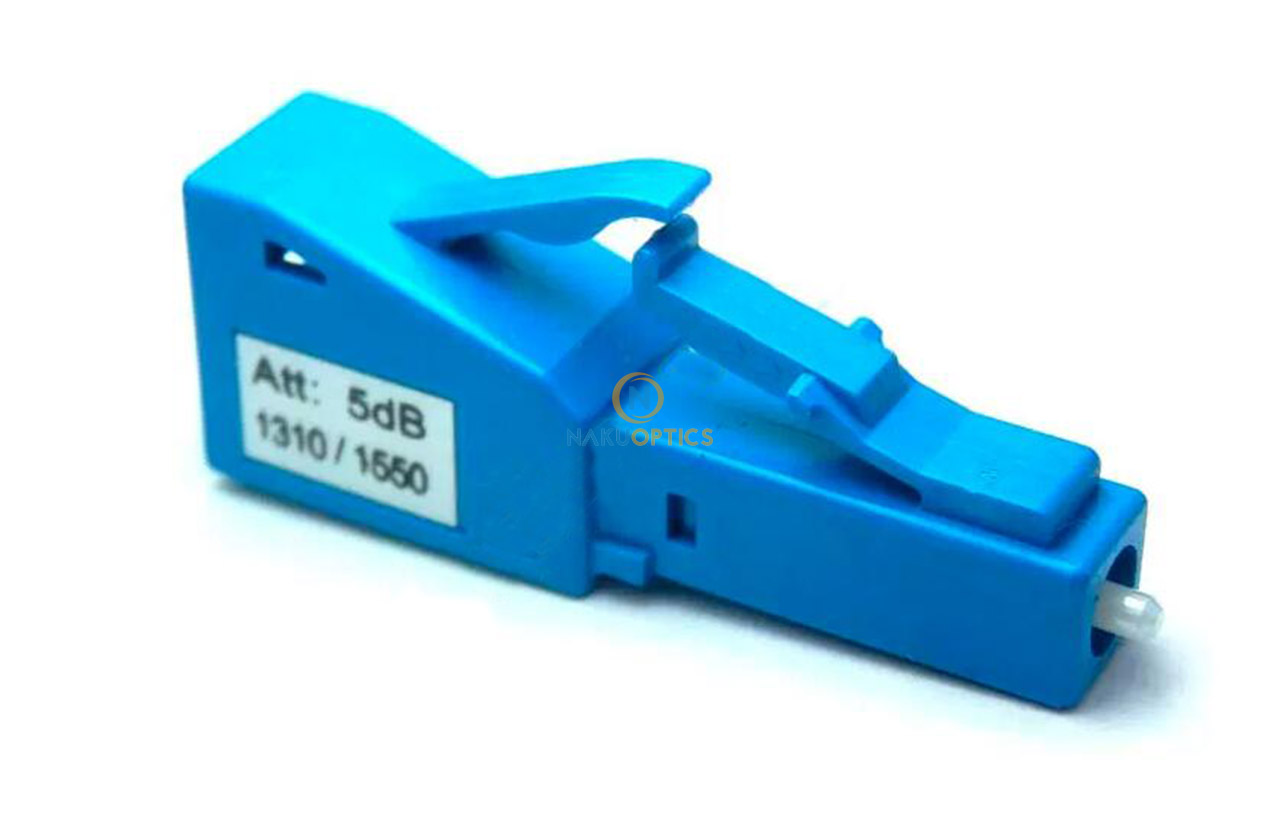

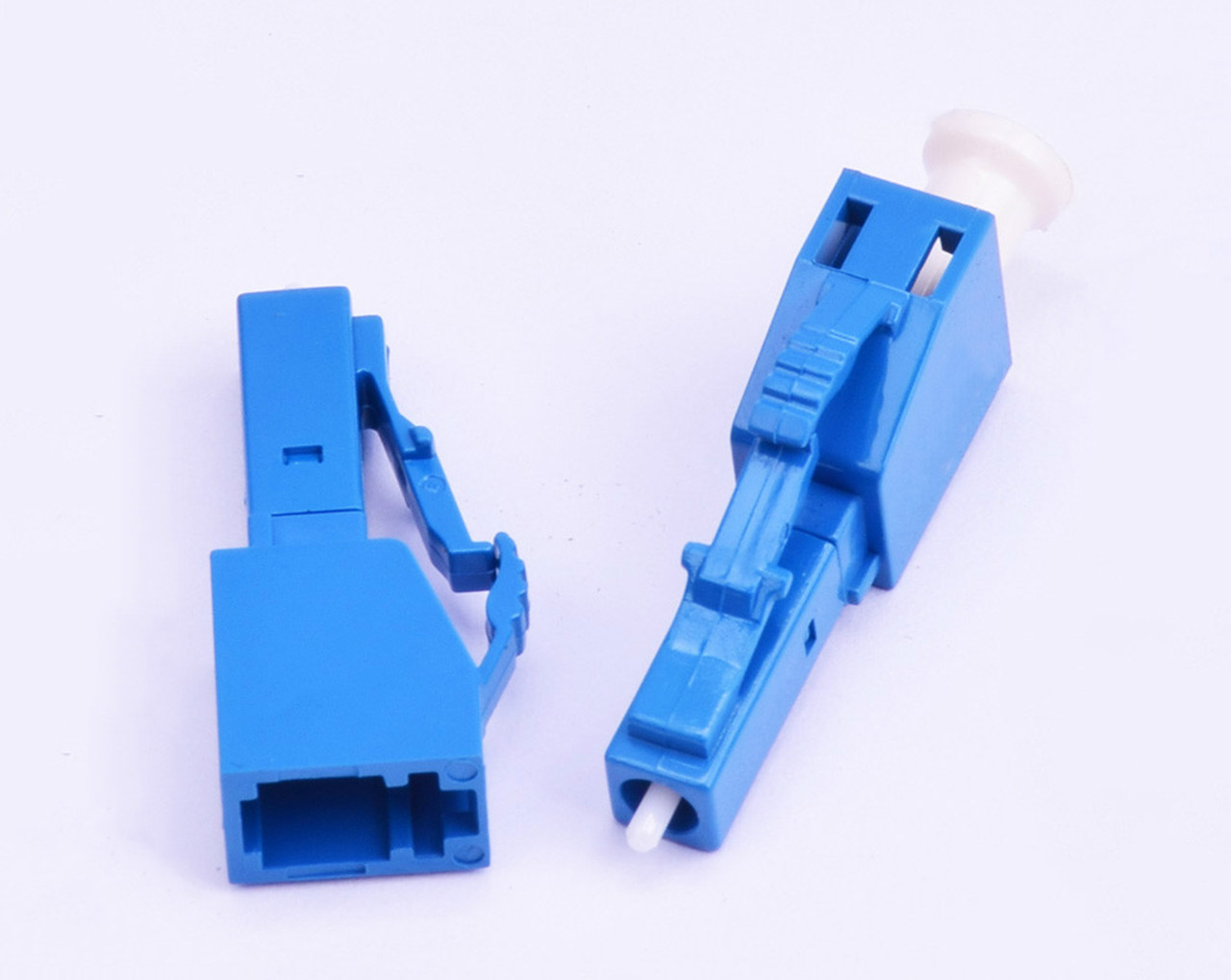

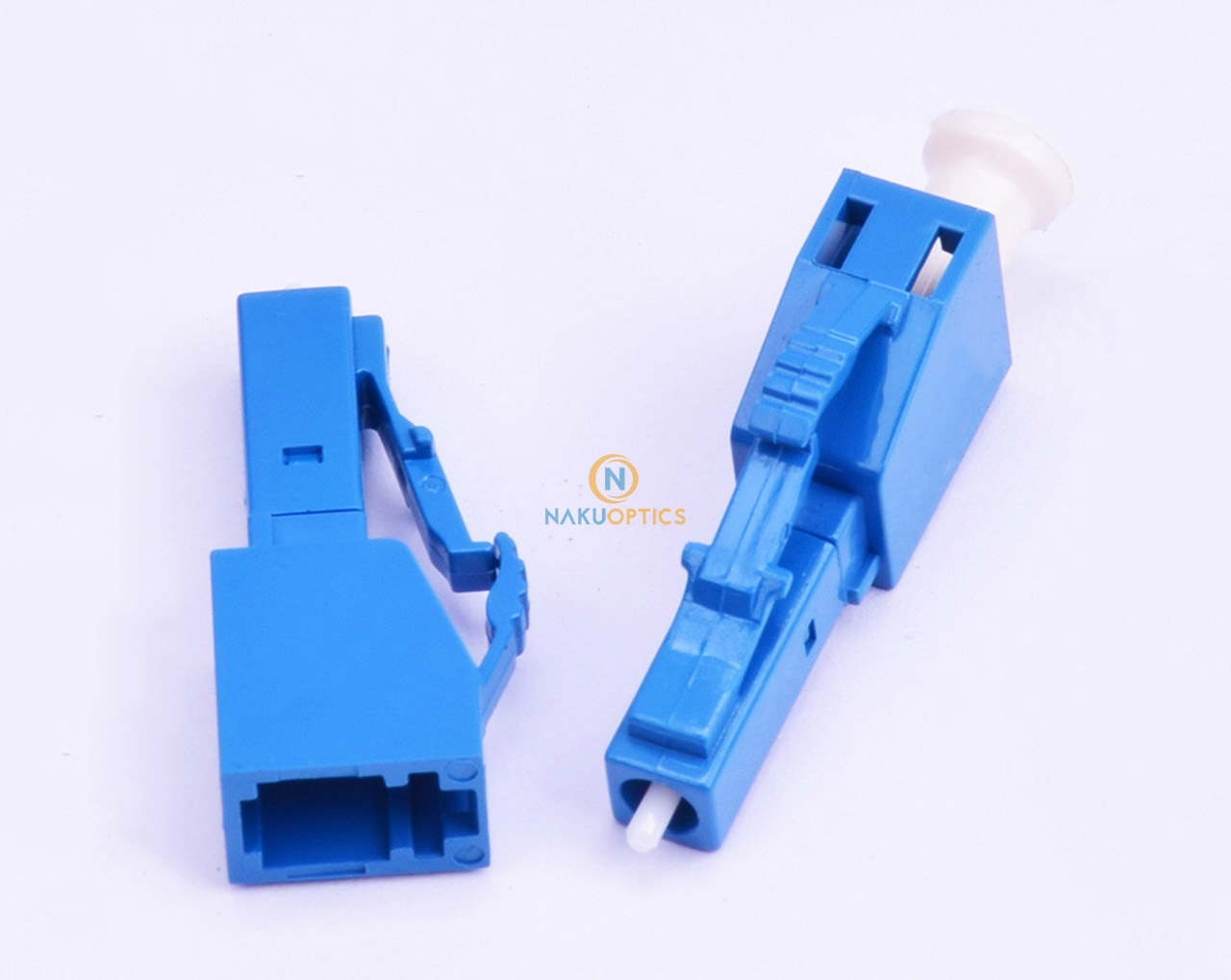

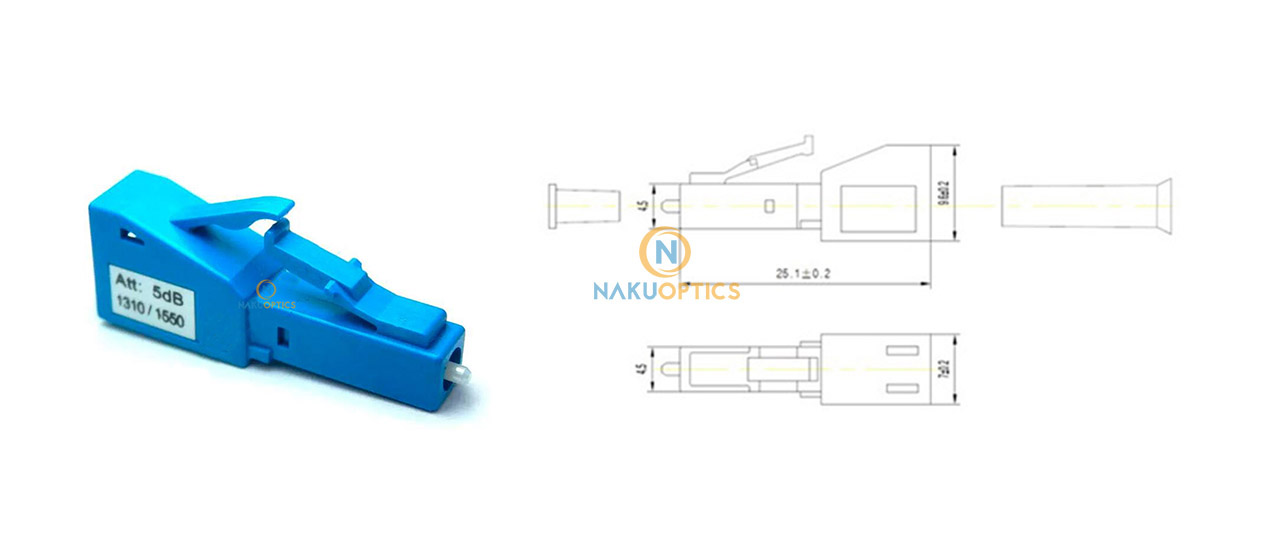

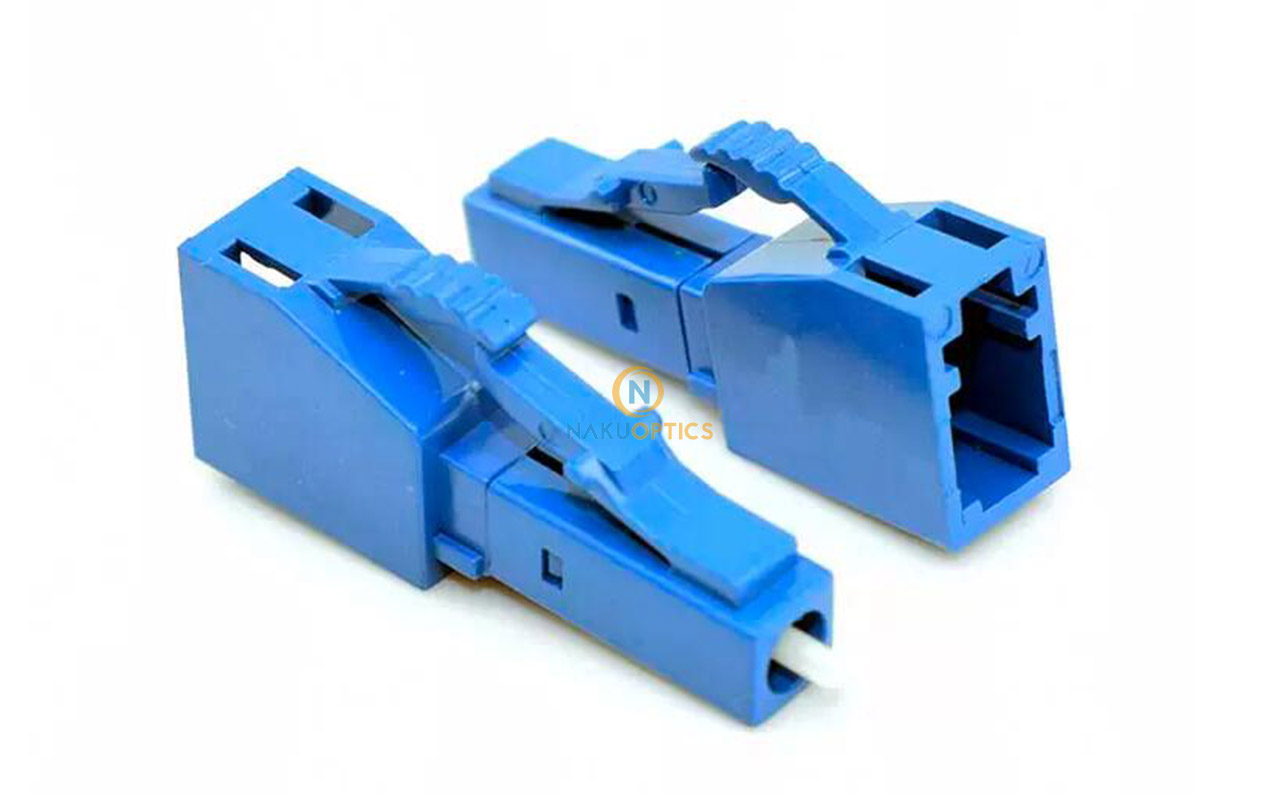

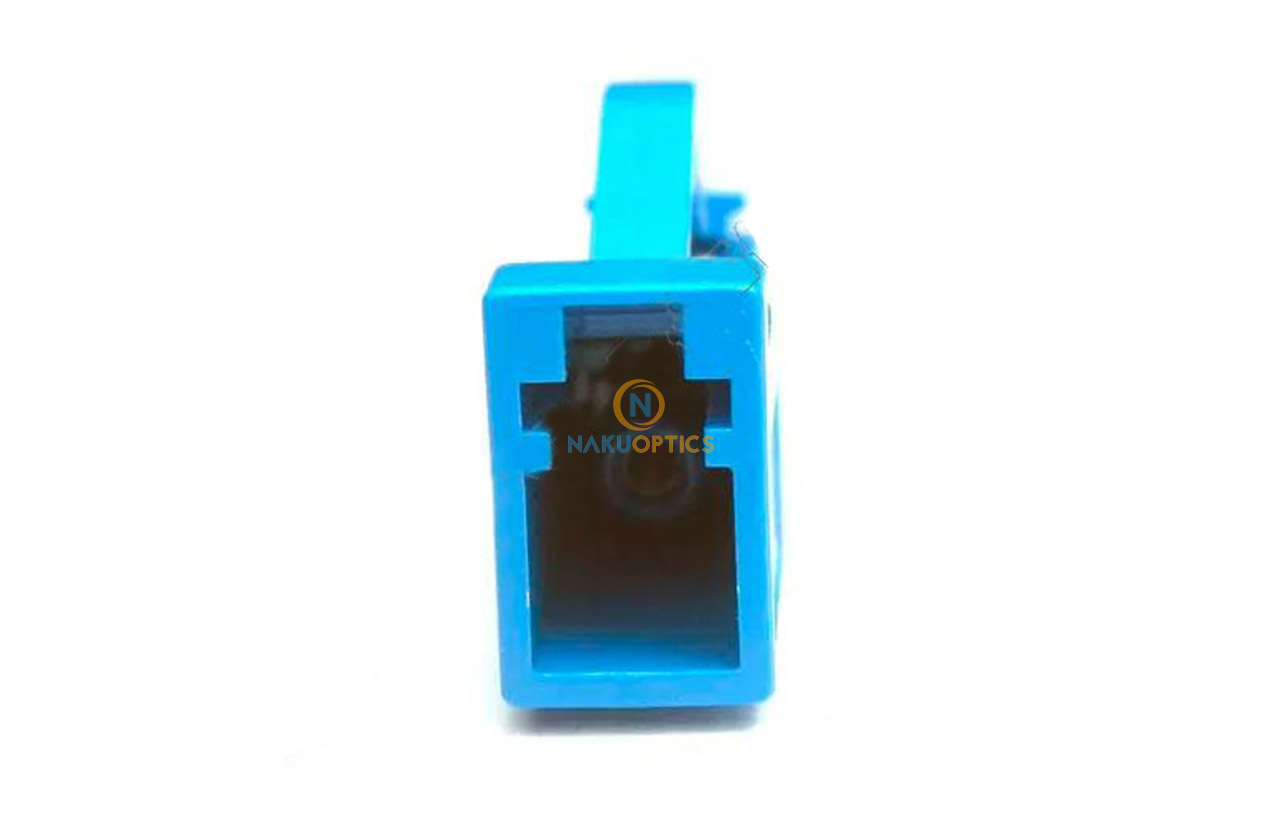

10pcs LC SM 5dB Yin-Yang Type Fiber Optic Attenuator Without Ears
The Yin-Yang Type Fiber Optic Fixed Attenuator is a type of connector that has one end as an adapter and the other end as a connector. The attenuation value is adjustable. This range of fixed attenuator is mainly used to reduce optical power to a target value in optical links.
[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE
[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx
[Specification]
| Parameter | Typical Vlue | Unit |
| Single Mode | ||
| Testing Wavelength | 1310,1550 | nm |
| Operating Bandwidth Range | 1,250~1,650 | nm |
| Retiurn Loss | UPC>50.0,APC>60.0 | dB |
| Attenuation Range | 0~30 | dB |
| Attenuation Tolerance | 0~5,±0.5 | dB |
| 5~30dB,±10% | / | |
| Repeatability | ≤0.10 | dB |
| Exchangeability | ≤0.20 | dB |
| Durability | 1,000 Mating, loss≤0.20 | dB |
| Maximum Input Power | 300 | mW |
| Operating Temperature | -2 0~ + 70 | ℃ |
| Storage Temperature | -40 ~ + 85 | ℃ |
[Package Include]
10pcs Yin-yang fiber attenuator
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 2.4 kg |
|---|
