MVOA In-Line mechanical Adjustable Fiber Optic Attenuator With SMA905 Single-mode Fiber

Product ID: 1362

$86.00

MVOA In-Line mechanical Adjustable Fiber Optic Attenuator With SMA905 Single-mode Fiber

[Features]
Low insertion loss
High return loss
High stability and repeatability
Uniform light distribution
Good interchangeability

[Specifications]

Paramter Unit Value
Operating Wavelength Range nm 1290~1625
Insertion Loss dB ≤1.5
Attenuation Range dB ≤60
Attenuation Accuracy @10dB dB ≤0.2
Attenuation Accuracy @10-45dB dB ≤0.3
Polarization Dependent Loss PDL dB ≤0.2@10dB
Return Loss dB ≥55dB without connector
Max. Optical Power mW 300
Operating Temperature ℃ -5 ~ +75
Storage Temperature ℃ -40 ~ +85

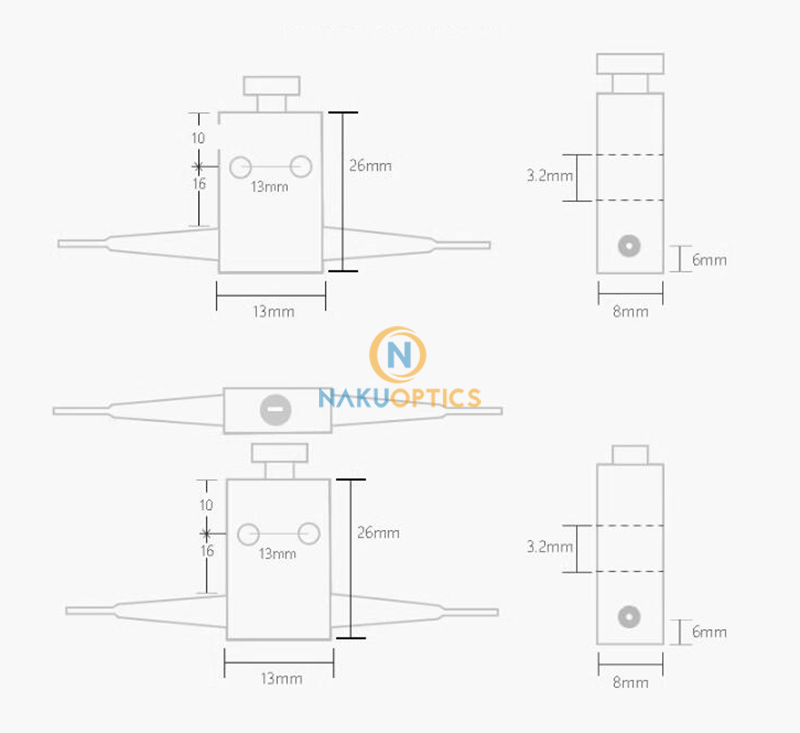

Package Dimensions mm 26x13x8.5

This attenuator adds an SMA905 interface, the insertion loss increases by 0.3dB, and the return loss decreases by 5dB.

Ordering Information

Fiber Type Tail Sleeve Type Fiber Length Connector Type
A=Single mode fiber
S=Specify		 3=3mm fiber
2=2mm fiber
09=900um loose tube
S=Specify		 01=1m
02=2m
S=Specify		 N=None
1=FC/PC
2=FC/APC
3=SC/APC
4=SC/PC
5=ST
6=LC
S=Specify


MVOA fiber attenuator

MVOA fiber attenuator

MVOA fiber attenuator

MVOA fiber attenuator

MVOA fiber attenuator

MVOA fiber attenuator

SKU: P1362 Category: Tag:
Weight 2.31 kg
