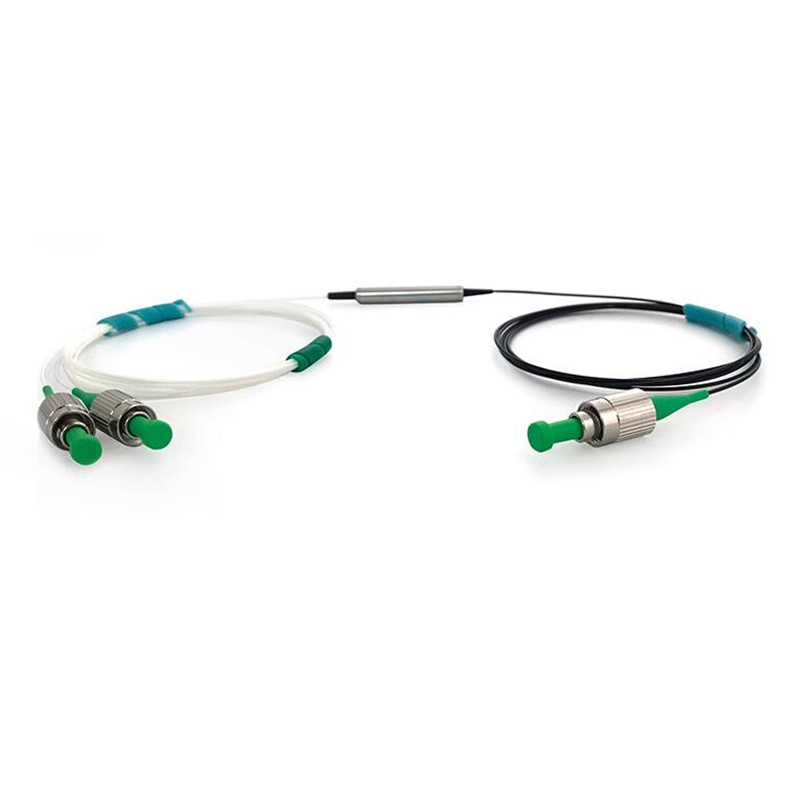

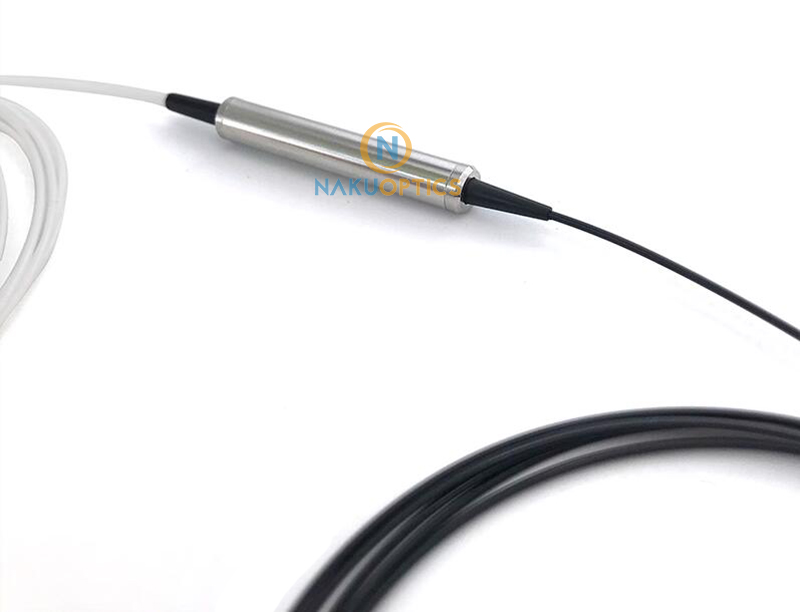

PM Fiber Splitter 1310/1550nm Panda Polarization Beam Splitter/Combiner 1X2 PBS/PBC

PM Fiber Splitter 1310/1550nm Panda Polarization Beam Splitter/Combiner 1X2 PBS/PBC

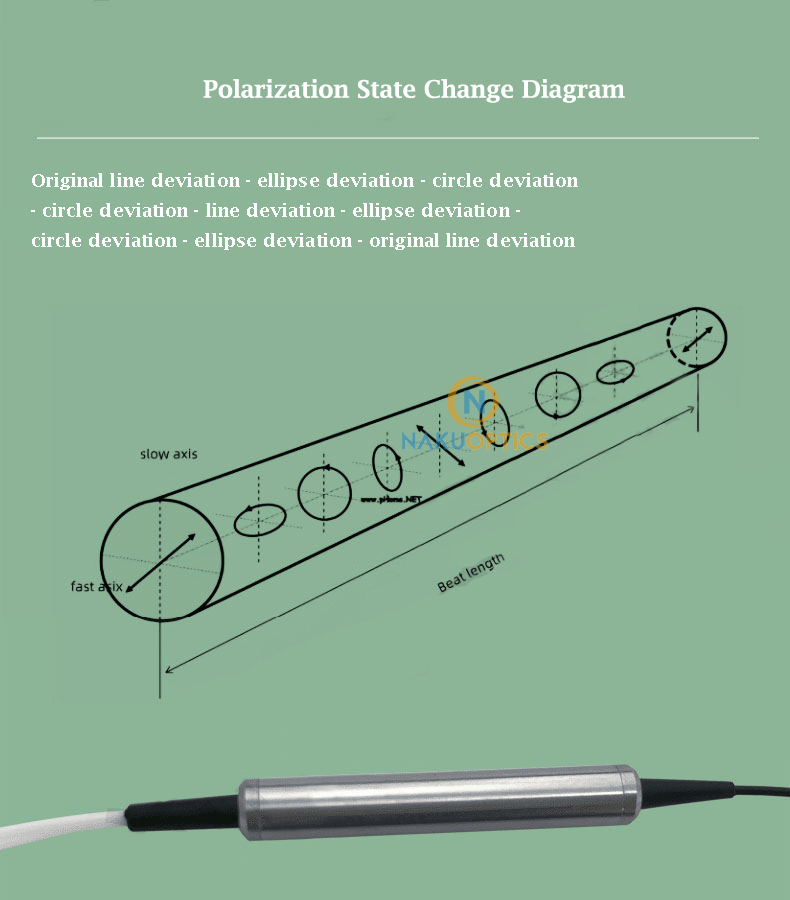

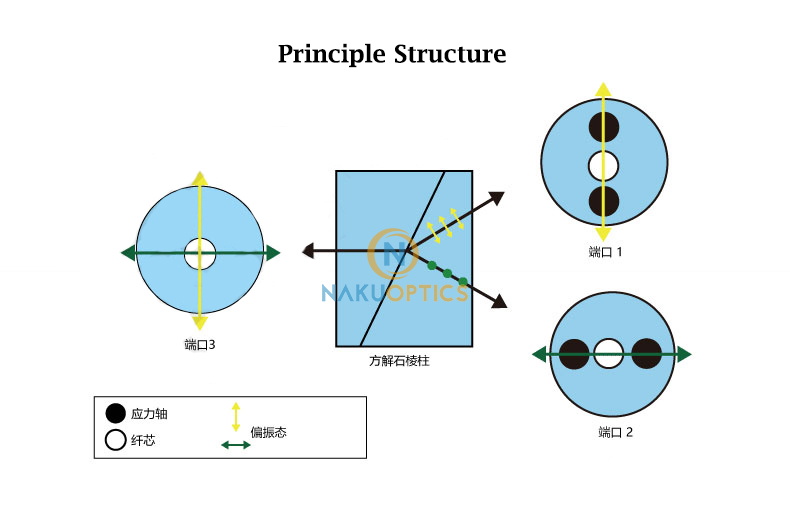

Fiber-based polarization beam combiners (PBC) or polarization beam splitters (PBS) are used to couple two orthogonally polarized light beams into one optical fiber, or to separate the orthogonal linearly polarized light contained in one optical fiber. Coupled into two fiber optic outputs. In this device, one side of the calcite prism has two polarization-maintaining (PM) fiber branches, and the other side is a single-mode SM (single-mode) fiber or polarization-maintaining (PM) fiber. In both polarization-maintaining fibers, the slow axis of the fiber is aligned with the direction of maximum transmission for one polarization state.

[Features]
High extinction ratio
Bidirectional properties

[Applications]
Fiber laser
Fiber amplifier
Fiber optical gyroscope

[Specifications]

Test environment is 25°C;
The above data does not include connectors. If you add connectors, the insertion loss will increase by 0.3dB, the return loss will decrease by 5dB, the extinction ratio will decrease by 2dB, and the default fiber slow axis will be used.

Ordering Information
