Name: 10pcs SC APC Yin-Yang Type Fixed Fiber Optic Attenuator
SKU: P773
Price: 70.00 USD
Availability: InStock

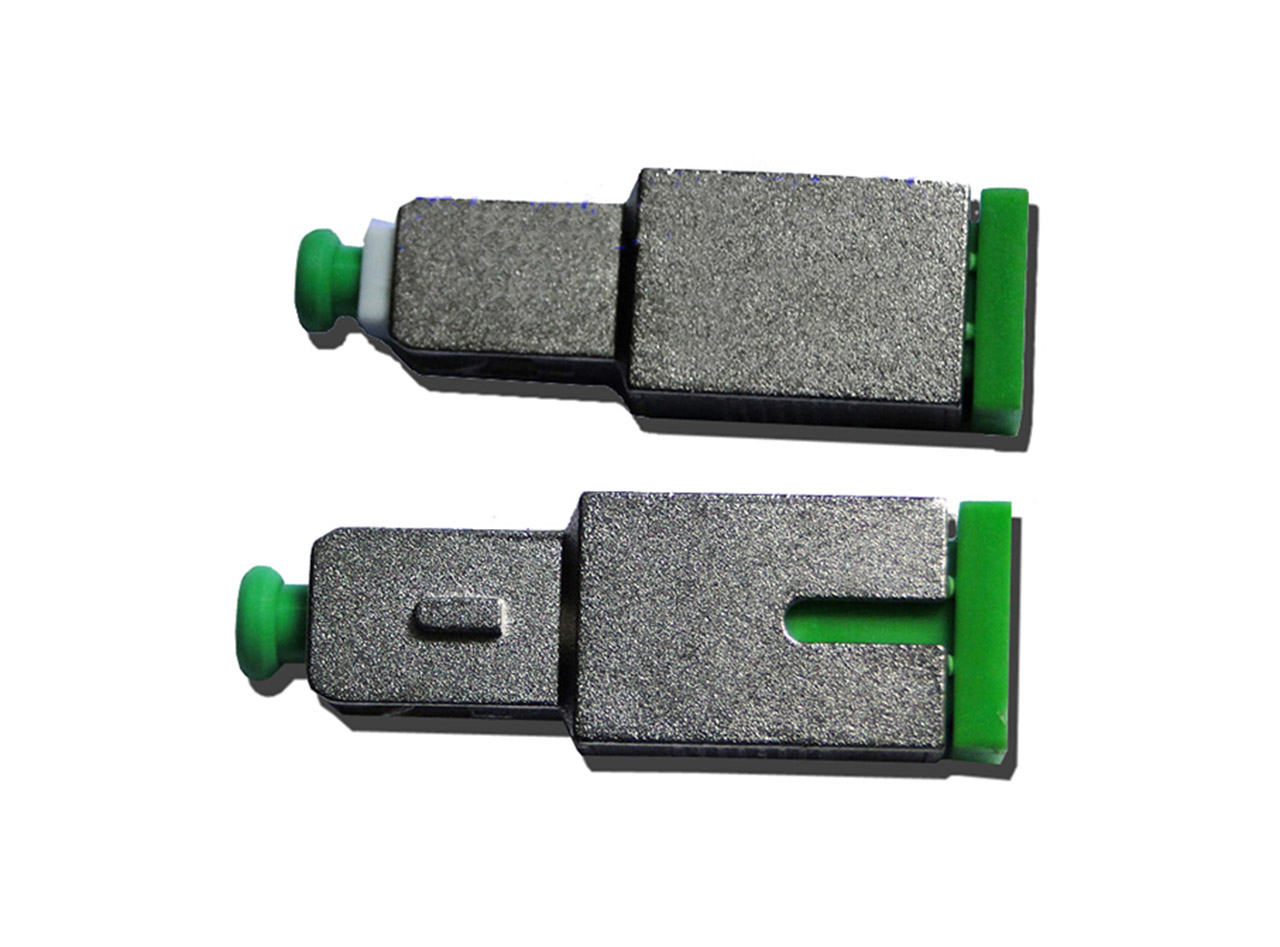

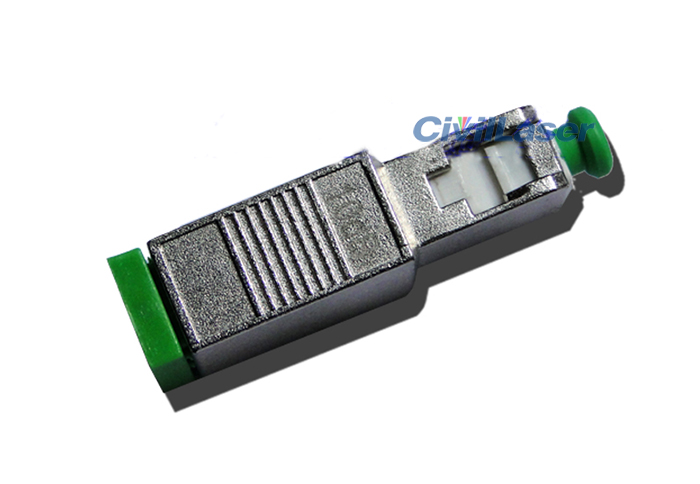

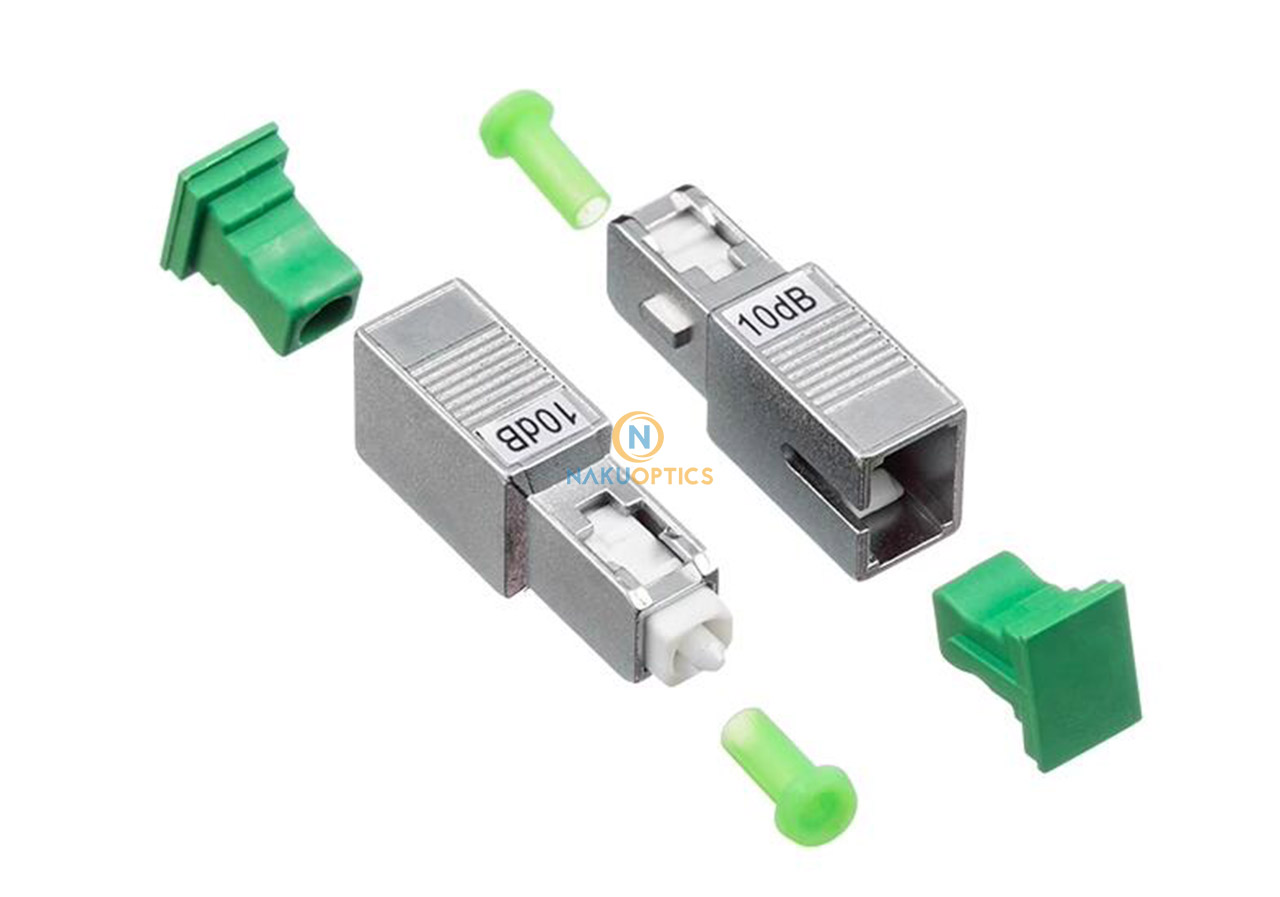

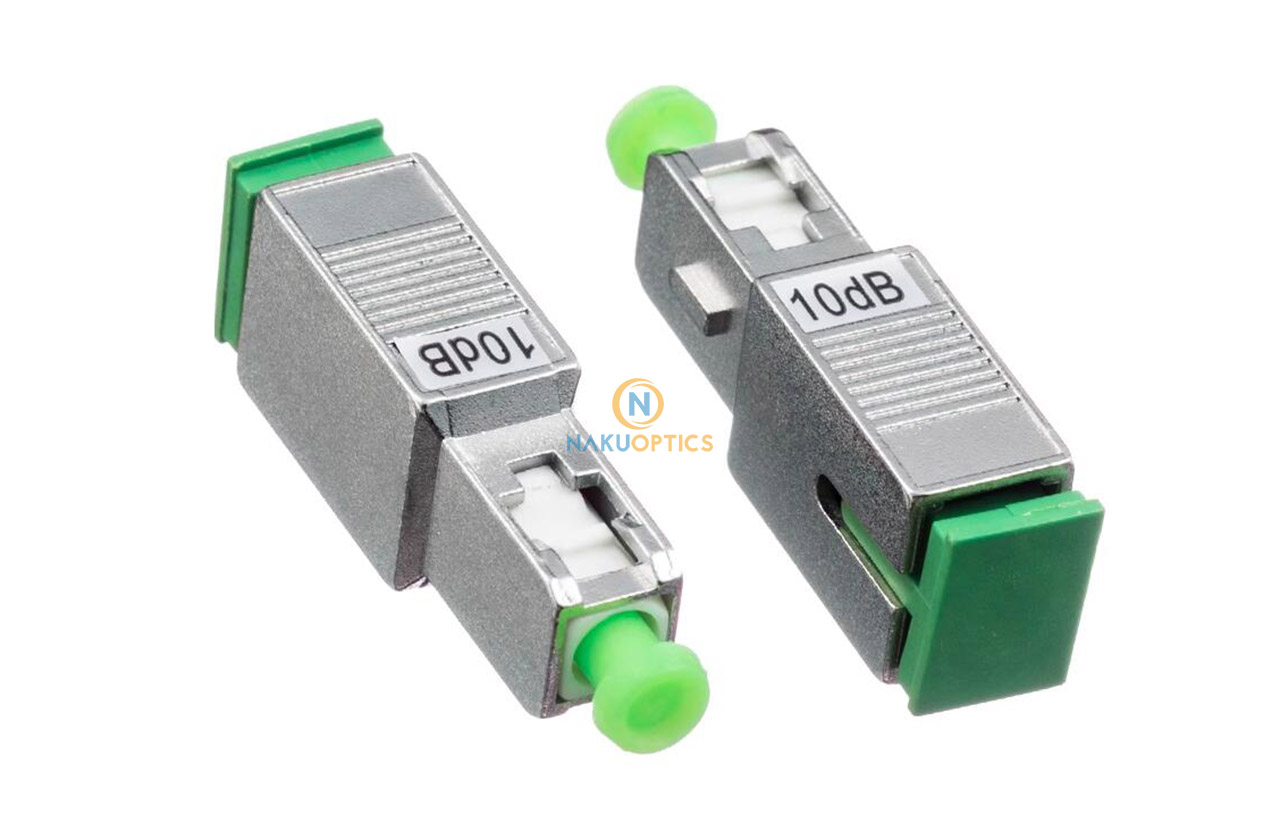

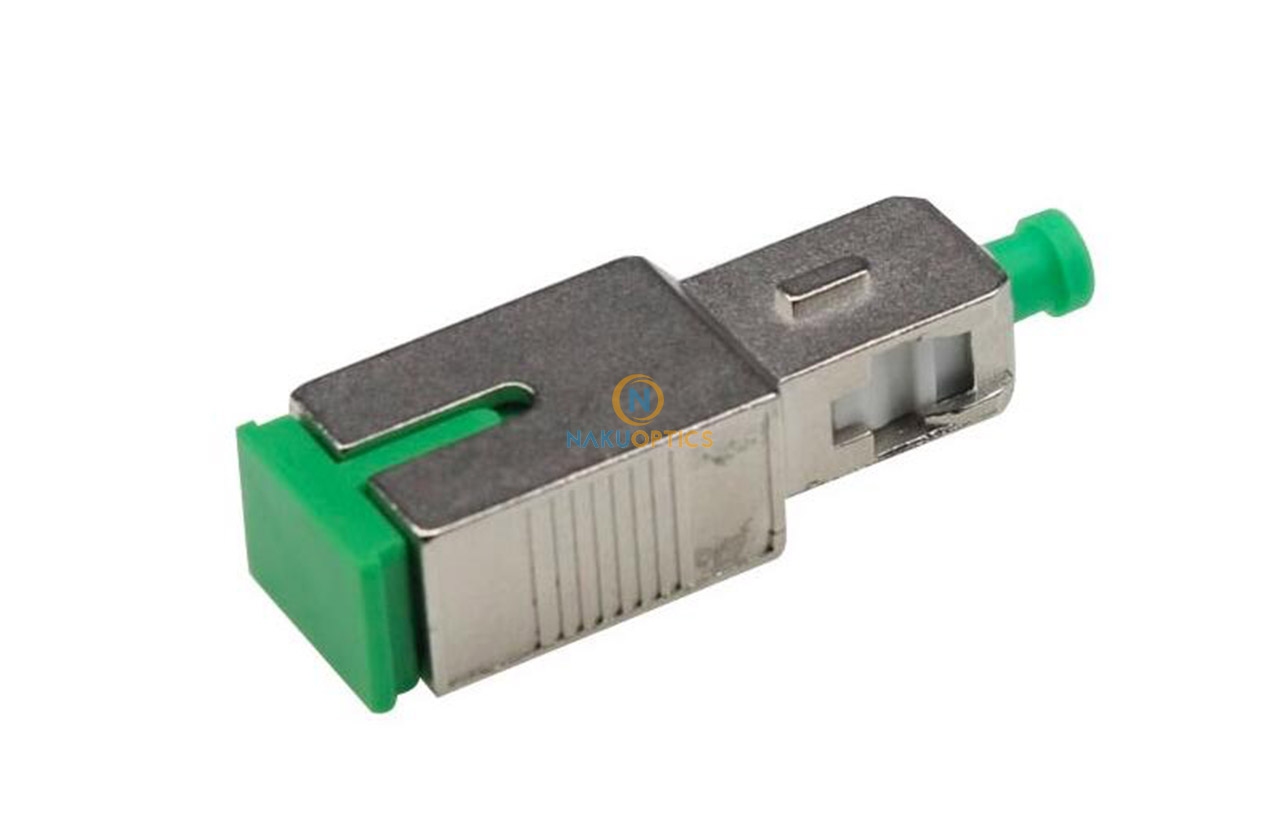

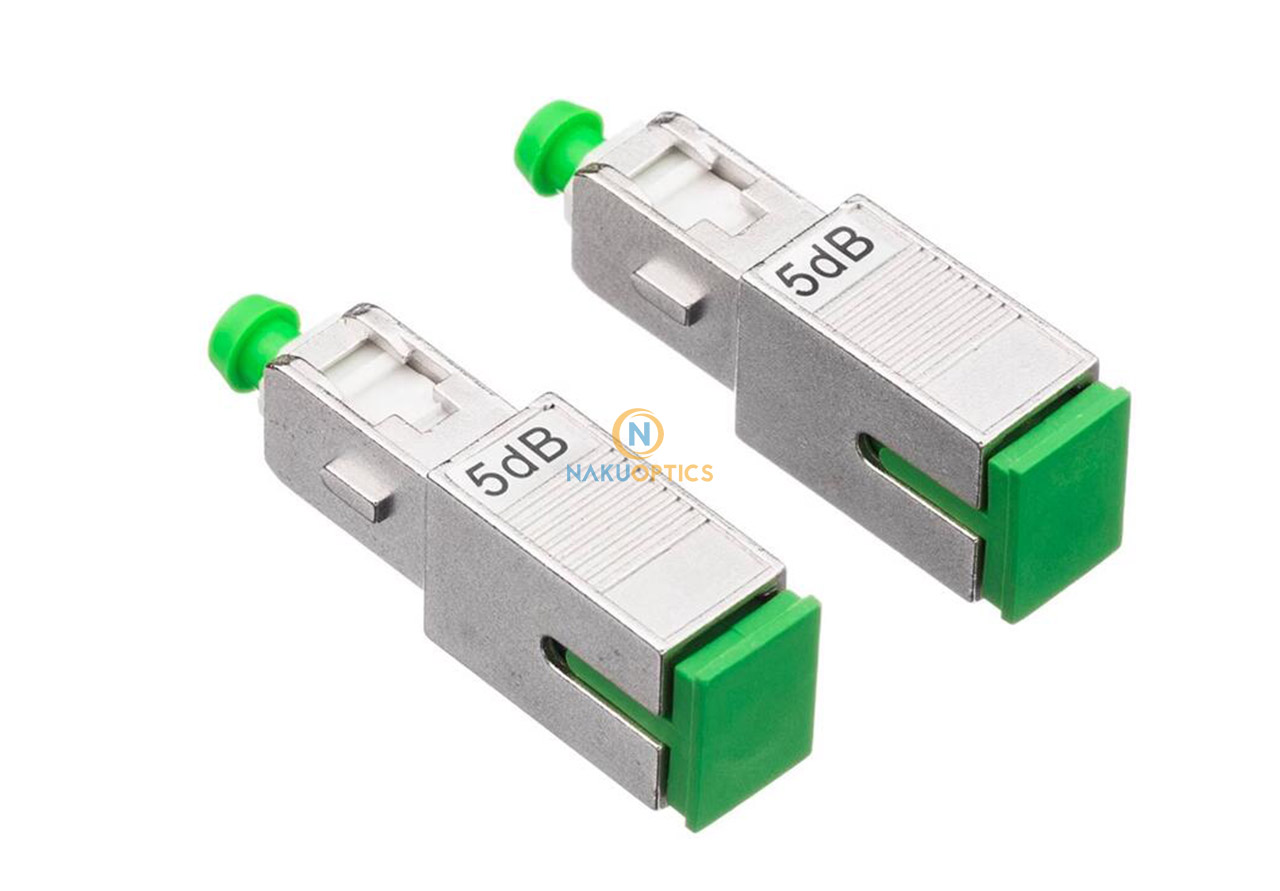

10pcs SC APC Yin-Yang 0~30dB Fixed Fiber Optic Attenuator

The Yin-Yang Type Fiber Optic Fixed Attenuator is a type of connector that has one end as an adapter and the other end as a connector. The attenuation value is adjustable. This range of fixed attenuator is mainly used to reduce optical power to a target value in optical links.

[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE

[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

Parameter	Typical Value	Unit
Parameter	Single Mode	Unit
Testing Wavelength	1310,1550	nm
Operating Bandwidth Range	1,250~1,650	nm
Retiurn Loss	≥60.0	dB
Attenuation Range	0~30	dB
Attenuation Tolerance	0~5,±0.5	dB
Attenuation Tolerance	5~30dB,±10%	/
Repeatability	≤0.10≥	dB
Exchangeability	≤0.20	dB
Durability	1,000 Mating, loss≤0.20	dB
Maximum Input Power	≤200	mW
Operating Temperature	-2 0~ + 70	℃
Storage Temperature	-40 ~ + 85	℃
